247.889550 (31AM62EE799) - Craftsman Snow Thrower (2008) (Sears) Chute & Controls Parts Diagram

Snow Thrower

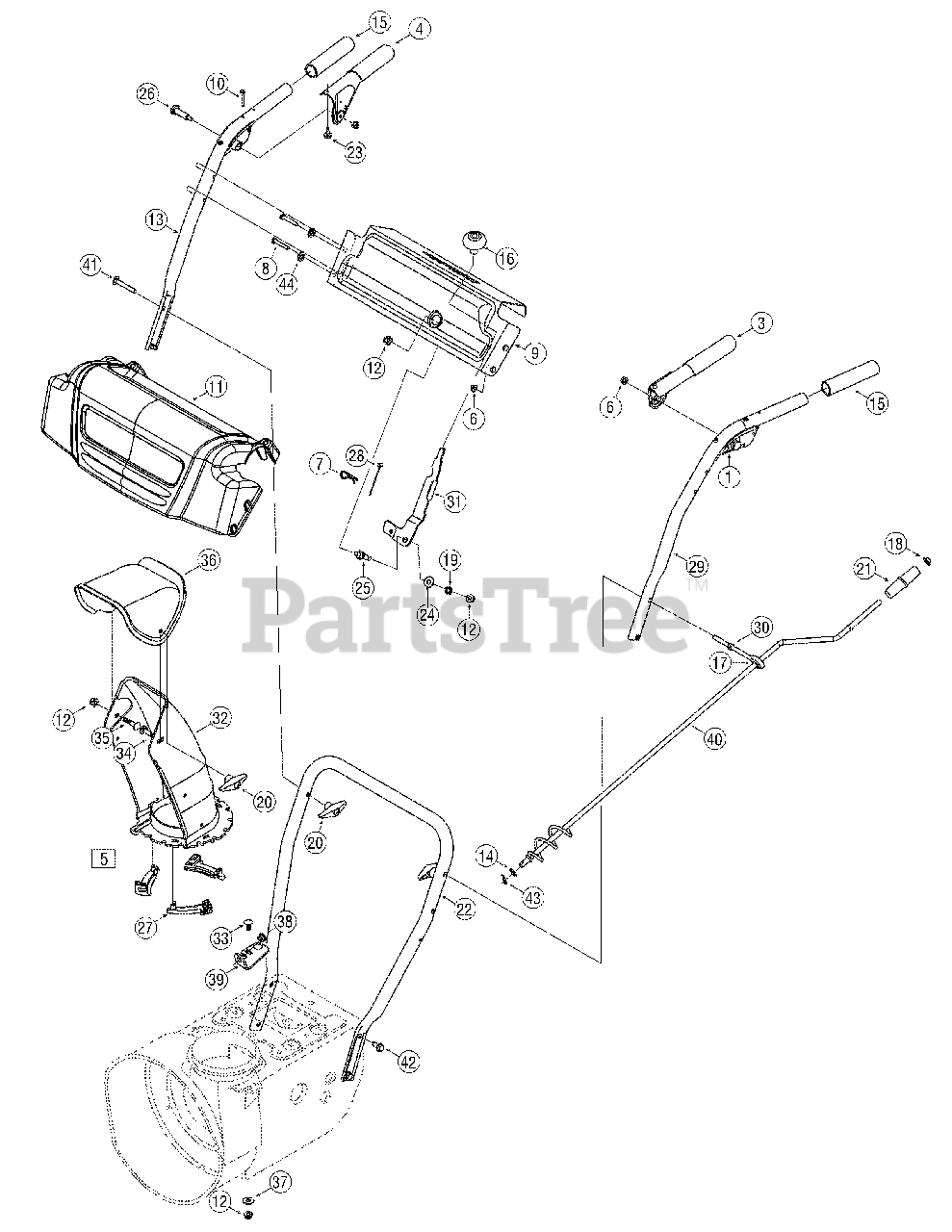

Chute & Controls Parts Diagram

  • Title

1

MTD 631-04133A

Handle Assembly, Clutch Lock, LH

$14.99

$

In Stock, only 1 left!

0

2

MTD 631-04134B

Handle Assembly, Clutch Lock, RH

$14.99

$

In Stock, only 3 left!

0

3

MTD 684-04105B

Handle Ass’y, Engage, Black, LH
(Superseded to 684-04105D)

$21.99

$

In Stock, only 1 left!

0

4

MTD 684-04106B

Handle Ass’y, Engage, Black, RH
(Superseded to 684-04106D)

$20.99

$

In Stock, only 1 left!

0

5

MTD 631-04131B

Chute Assembly

Note: (Includes Ref. # 27)

$36.99

$

In Stock, only 1 left!

0

6

MTD 712-04064

Nut, Flglk, 1/4-20

$3.99

$

In Stock, Qty 20+

0

7

MTD 714-0145

Click Pin

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0136

Screw, 1/4-20, 1.75, Gr5

$3.99

$

In Stock, only 2 left!

0

9

MTD 790-00219-0721

Panel, Handle,
(Superseded to 790-00219A-4044)

Note: (no cutout)

$67.99

$

Usually ships in 3-6 days

0

10

MTD 710-1233

Screw, Machine, #10-24, 1.375

$4.49

$

In Stock, Qty 13

0

11

MTD 731-06471

Handle Panel Cover

$38.99

$

Usually ships in 3-6 days

0

12

MTD 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

13

MTD 749-04190A-0637

Handle, Upper, RH

$42.99

$

Usually ships in 3-6 days

0

14

MTD 736-0185

Washer, Flat, .375 x .738 x .063

$3.49

$

In Stock, Qty 15

0

15

MTD 720-0274

Grip, 1.0 ID x 5.0

$10.99

$

In Stock, Qty 6

0

16

MTD 720-04039

Knob, Shift, Black

$9.99

$

In Stock, Qty 5

0

17

MTD 735-0234

Grommet, .44 ID x .94 OD x .50

$4.99

$

In Stock, only 3 left!

0

18

MTD 726-0100

Cap, Push, 3/8 Rod

$3.99

$

In Stock, Qty 7

0

19

MTD 732-0193

Spring, .39 x .60 x .88

$4.49

$

In Stock, Qty 8

0

20

MTD 720-0284

Knob, 5/16-18, Black

$6.49

$

In Stock, Qty 20+

0

21

MTD 720-0201A

Crank Knob, 1.0 Dia. x 3.2, Black

$10.99

$

In Stock, Qty 6

0

22

MTD 749-04138A-0637

Handle, Lower
(Superseded to 749-04138C-0637)

$82.99

$

Usually ships in 3-6 days

0

23

MTD 735-0199A

Bumper, Rubber, .62 OD x .22

$6.99

$

In Stock, Qty 16

0

24

MTD 736-0262

Washer, Flat, .385 x .870 x .092

$3.99

$

In Stock, Qty 20+

0

25

MTD 738-04118

Bolt, Shoulder, 5/16-18 x 0.905

$5.49

$

Usually ships in 3-6 days

0

26

MTD 738-04348

Screw, Shoulder, .43 x 1.3, 1/4-20

$3.49

$

In Stock, only 1 left!

0

27

MTD 731-04869

Chute, Flange Keeper
(Superseded to 731-04869A)

$4.49

$

In Stock, Qty 20+

0

28

MTD 746-04397

Cable, Speed Selector
(Superseded to 946-04397A)

$19.99

$

In Stock, Qty 15

0

29

MTD 749-04191A-0637

Handle, Upper, LH

$42.99

$

Usually ships in 3-6 days

0

30

MTD 747-04263

Eye Bolt, Chute Crank

$8.99

$

In Stock, only 3 left!

0

31

MTD 790-00313-0637

Shift Lever
(Superseded to 790-00313A-0637)

$45.99

$

Usually ships in 3-6 days

0

32

MTD 731-04912B

Chute, Lower, 5.0 Dia.

$36.99

$

In Stock, only 1 left!

0

33

MTD 710-0276

Bolt, Carriage, 5/16-18, 1.0

$3.99

$

In Stock, Qty 20+

0

34

MTD 710-04071

Bolt, Carriage, 5/16-18, 1.0

$4.49

$

In Stock, Qty 16

0

35

MTD 710-0451

Bolt, Carriage, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

36

MTD 731-04426A

Chute, Upper, w/ Label
(Superseded to 731-04426C)

$18.99

$

In Stock, Qty 6

0

37

MTD 736-0159

Washer, .349 x .879 x .063

$3.99

$

In Stock, Qty 20+

0

38

MTD 741-0475

Bushing, Plastic, .380
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

39

MTD 784-5647-0637

Bracket, Chute Crank

$13.99

$

In Stock, Qty 8

0

40

MTD 684-04104-0637

Crank Assembly, Chute

$58.99

$

In Stock, only 1 left!

0

41

MTD 710-0449

Screw, Carriage, 5/16-18, 2.25
(Superseded to 710-0572)

$3.99

$

In Stock, only 4 left!

0

42

MTD 710-04484

Screw, 5/16-18, 2.25, Gr5

$3.49

$

In Stock, Qty 20+

0

43

MTD 714-0104

Pin, Cotter, .072 x 1.13

$3.99

$

In Stock, Qty 20+

0

44

MTD 736-0463

Washer, Flat, .25 x .630 x .0515

$4.49

$

In Stock, only 2 left!

0
