24742x8B - Scotts Grass Bagger (1999) Grass Bagger Parts Diagram

Grass Bagger

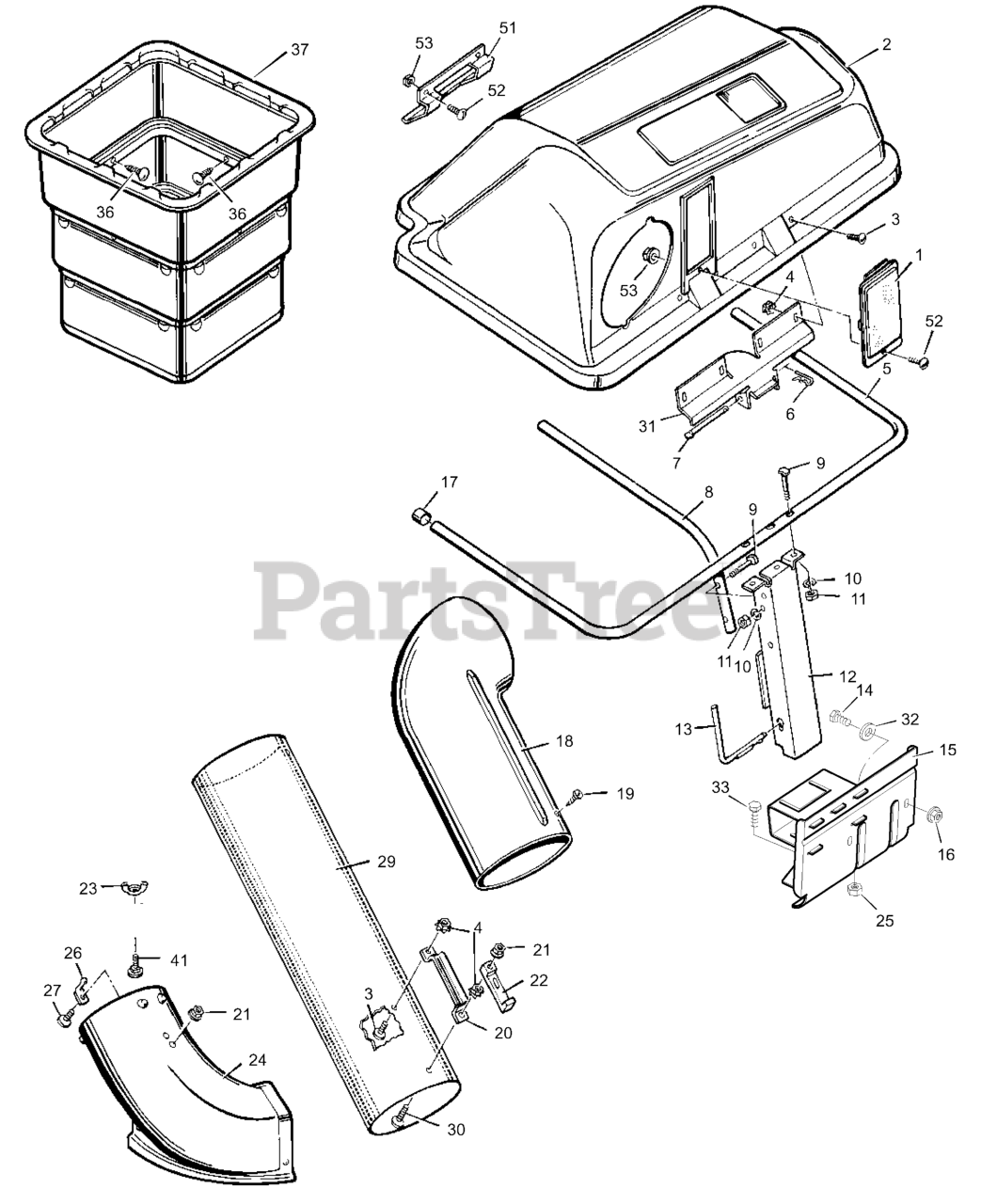

Grass Bagger Parts Diagram

  • Title

1

Murray 054575MA

Window

$11.99

$

Usually ships in 2-12 days

0

2

Murray 054576

Cover

$

$

Currently unavailable

3

Murray 004X24MA

Screw

$4.49

$

Usually ships in 2-12 days

0

4

Murray 015X66MA

Locknut
(Superseded to 703914)

$3.49

$

In Stock, Qty 18

0

5

Murray 054410E701MA

Tube, "U"

$

$

Not available

6

Murray 0031X6MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

7

Murray 054407ZMA

Pin, Hinge

$14.99

$

In Stock, only 2 left!

0

8

Murray 054412E701MA

Tube, Center

$45.99

$

Usually ships in 2-12 days

0

9

Murray 006X93MA

Bolt, Special

$4.49

$

In Stock, Qty 5

0

10

Murray 018X15MA

Lockwasher

$3.99

$

In Stock, only 1 left!

0

11

Murray 015X32MA

Nut, Hex

$3.99

$

In Stock, only 3 left!

0

12

Murray 054422E701MA

Channel Assembly

$66.99

$

Usually ships in 2-12 days

0

13

Murray 054408 Z

Pin, Channel

$

$

Currently unavailable

14

Murray 01X141MA

Bolt, Hex

$3.49

$

Usually ships in 2-12 days

0

15

Murray 094690E701MA

Mount Assembly, Bagger
(Superseded to 7400298BMYP)

$216.99

$

Usually ships in 2-12 days

0

16

Murray 15X108MA

Nut, Hex

$3.99

$

Usually ships in 2-12 days

0

17

Murray 024862MA

Cap, End

$3.99

$

Usually ships in 2-12 days

0

18

Murray 091944MA

Elbow

$93.99

$

Usually ships in 2-12 days

0

19

Murray 26X239MA

Screw

$4.49

$

In Stock, only 2 left!

0

20

Murray 054416ZMA

HANDLE, Connect Tube

$20.99

$

In Stock, only 4 left!

0

21

Murray 015X89MA

Locknut, Flange

$4.49

$

Usually ships in 2-12 days

0

22

Murray 054695MA

Latch, Rubber

$10.99

$

Usually ships in 2-12 days

0

23

Murray 014X86MA

Wingnut
(Superseded to 703141)

$3.49

$

In Stock, Qty 12

0

24

Murray 054564SEMA

Tube, Extension

$189.99

$

Usually ships in 2-12 days

0

25

Murray 015X41MA

Hex Nut

$5.49

$

Usually ships in 2-12 days

0

26

Murray 054563MA

Pin, Latch

$23.99

$

In Stock, only 2 left!

0

27

Murray 002X39MA

Bolt, Carriage

$3.49

$

In Stock, only 1 left!

0

29

Murray 094954MA

Tube, Connector

$98.99

$

Usually ships in 2-12 days

0

30

Murray 004X71MA

Screw

$4.99

$

In Stock, only 4 left!

0

31

Murray 054398E701MA

Hinge, Cover

$39.99

$

Usually ships in 2-12 days

0

32

Murray 010851 Z

Washer

$

$

Currently unavailable

33

Murray 01X125MA

Bolt, Hex

$3.49

$

Usually ships in 2-12 days

0

36

Murray 0193X1MA

Fastener, Plastic

Note: (Included with Ref. No. 37)

$3.99

$

In Stock, only 1 left!

0

37

Murray 054727SEMA

Containers (Quantity 2)

$455.99

$

Usually ships in 2-12 days

0

41

Murray 002X64MA

Bolt, Carriage

$4.49

$

In Stock, only 3 left!

0

51

Murray 054537MA

Handle, Plastic

$18.99

$

Usually ships in 2-12 days

0

52

Murray 004X21MA

Screw

$3.99

$

Usually ships in 2-12 days

0

53

Murray 015X81MA

Nut, Hex

$4.99

$

Usually ships in 2-12 days

0

--

Murray F-99904

Book, Instruction

$

$

Currently unavailable
