24744D - Murray Grass Bagger (2005) Grass Bagger Parts Diagram

Grass Bagger

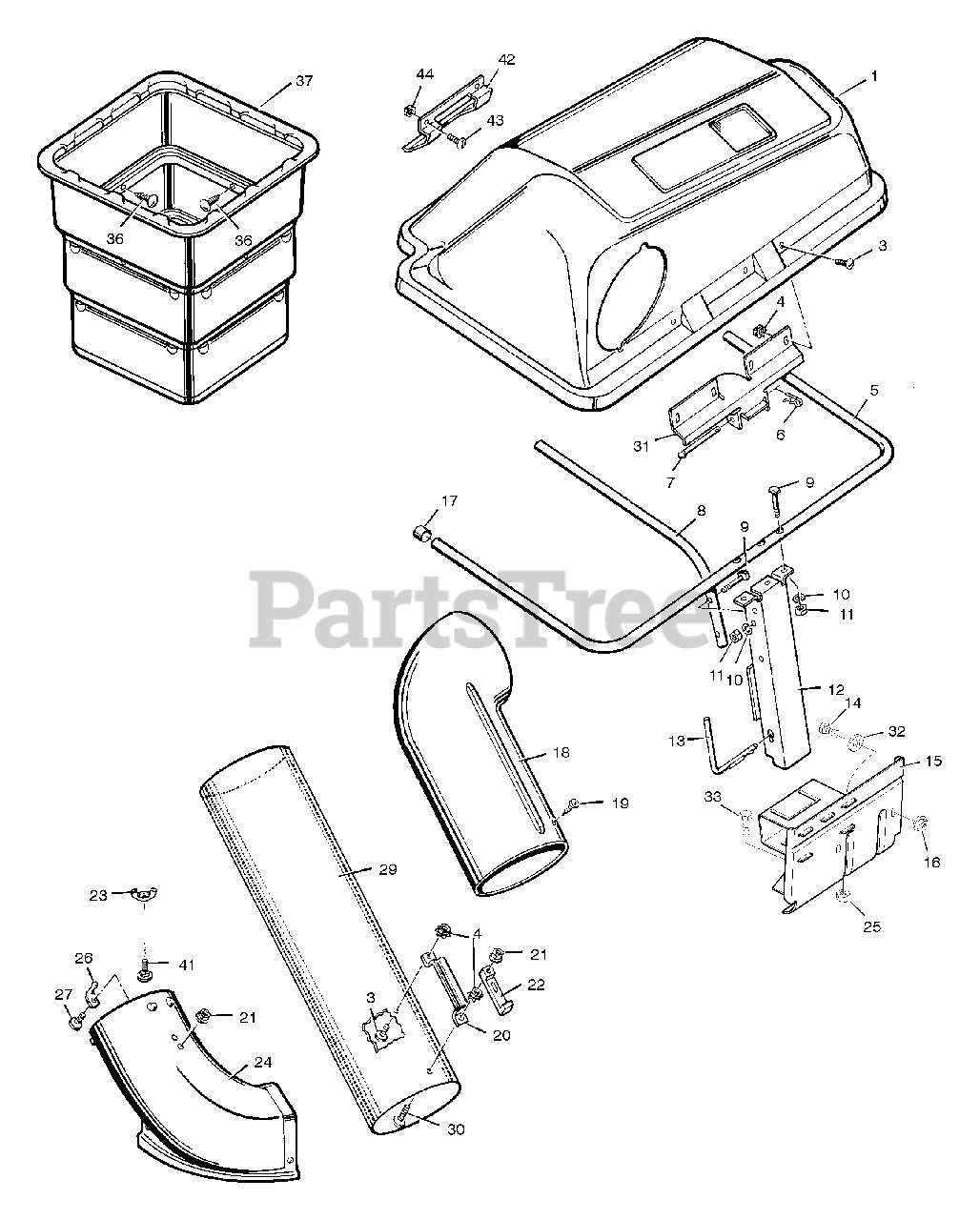

Grass Bagger Parts Diagram

  • Title

1

Murray 54576

Cover

$

$

Currently unavailable

3

Murray 004X24MA

Screw

$4.49

$

Usually ships in 2-12 days

0

4

Murray 015X66MA

Locknut
(Superseded to 703914)

$3.49

$

In Stock, only 2 left!

0

5

Murray 54410E701

Tube, "U"

$

$

Not available

6

Murray 0031X6MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

7

Murray 54407 Z

Pin, Hinge

$

$

Currently unavailable

8

Murray 54412E701

Tube, Center

$48.99

$

Usually ships in 2-12 days

0

9

Murray 06X93Z

Bolt, Special

$

$

Currently unavailable

10

Murray 018X15MA

Lockwasher
(Superseded to 5025170SM)

$4.49

$

In Stock, only 1 left!

0

11

Murray 015X32MA

Nut, Hex

$3.99

$

In Stock, only 3 left!

0

12

Murray 54422E701

Channel Assembly

$66.99

$

Usually ships in 2-12 days

0

13

Murray 54408 Z

Pin, Channel

$

$

Currently unavailable

14

Murray 01X141MA

Bolt, Hex

$3.49

$

Usually ships in 2-12 days

0

15

Murray 94690E701

Mount Assembly, Bagger

$229.99

$

Usually ships in 2-12 days

0

16

Murray 15X108MA

Nut, Hex

$3.99

$

Usually ships in 2-12 days

0

17

Murray 24862

Cap, End

$4.49

$

Usually ships in 2-12 days

0

18

Murray 91944

Elbow
(Superseded to 703869)

$6.49

$

Usually ships in 2-12 days

0

19

Murray 26X239MA

Screw

$4.49

$

Usually ships in 2-12 days

0

20

Murray 54416 Z

Handle, Connector Tube

$

$

Currently unavailable

21

Murray 015X89MA

Locknut, Flange

$4.49

$

Usually ships in 2-12 days

0

22

Murray 54695

Latch, Rubber

$

$

Not available

23

Murray 014X86MA

Wingnut
(Superseded to 703141)

$3.99

$

In Stock, only 2 left!

0

24

Murray 54564SE

Tube, Extension

$200.99

$

Usually ships in 2-12 days

0

25

Murray 015X41MA

Hex Nut

$5.49

$

Usually ships in 2-12 days

0

26

Murray 54563

Pin, Latch

$23.99

$

In Stock, only 1 left!

0

27

Murray 002X39MA

Bolt, Carriage

$3.49

$

In Stock, only 1 left!

0

29

Murray 94954

Tube, Connector

$

$

Not available

30

Murray 004X71MA

Screw

$4.99

$

In Stock, only 4 left!

0

31

Murray 54398E701

Hinge, Cover

$41.99

$

Usually ships in 2-12 days

0

32

Murray 10851 Z

Washer

$

$

Currently unavailable

33

Murray 01X125MA

Bolt, Hex

$3.49

$

Usually ships in 2-12 days

0

36

Murray 0193X1MA

Fastener, Plastic

Note: (Included with Ref. No. 37)

$4.49

$

In Stock, only 1 left!

0

37

Murray 54727SE

Containers (Quantity 2)

$483.99

$

Usually ships in 2-12 days

0

41

Murray 002X64MA

Bolt, Carriage
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 20+

0

42

Murray 54537

Handle, Plastic

$

$

Not available

43

Murray 004X21MA

Screw

$3.99

$

Usually ships in 2-12 days

0

44

Murray 015X81MA

Nut, Hex

$4.99

$

Usually ships in 2-12 days

0

--

Murray F-050900L

Book, Instruction

$

$

Currently unavailable
