24762x8B - Scotts Grass Bagger (1999)

Grass Bagger

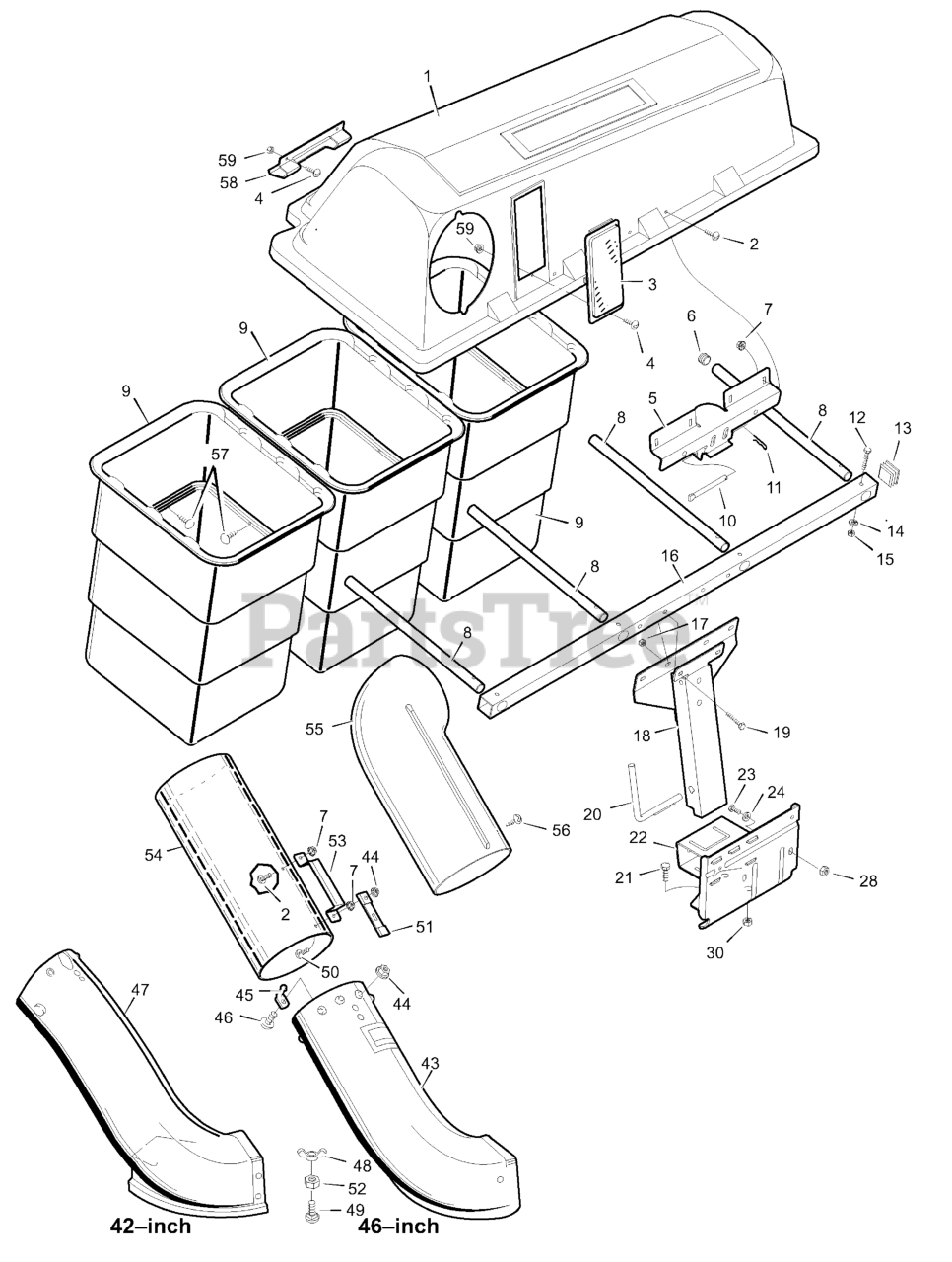

24762x8B - Scotts Grass Bagger (1999) > Parts Diagrams (1) > Grass Bagger

  • Title
054750MA

1

Cover, Bagger

Part# 054750MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $736.28

004X24MA

2

Screw

Part# 004X24MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.98

054575MA

3

Window

Part# 054575MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $10.62

004X21MA

4

Screw

Part# 004X21MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.27

054754E701

5

Hinge, Bracket

Part# 054754E701

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $28.00

054776MA

6

Plug

Part# 054776MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.15

015X66MA

7

Nut, Hex

Part# 015X66MA (Superseded to 703914)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.29

054753

8

Tube, Container

Part# 054753

OEM Warranty Repair Part for Murray

Currently unavailable

054752

9

Container

Part# 054752

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $410.49

54407

10

Pin, Cover Hinge

Part# 54407

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $11.15

0031X6MA

11

Pin, Hair

Part# 0031X6MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.63

001X98MA

12

Bolt

Part# 001X98MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.92

054777

13

Plug

Part# 054777 (Superseded to 054777MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.68

018X15MA

14

Lockwasher

Part# 018X15MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.98

0015X2MA

15

Nut

Part# 0015X2MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.44

054761E701MA

16

Tube, Support

Part# 054761E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $23.33

15X118MA

17

Nut

Part# 15X118MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.21

054757E701

18

Assembly, Channel

Part# 054757E701

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $135.68

01X138MA

19

Bolt

Part# 01X138MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $8.81

54408

20

Pin, Channel Mount

Part# 54408

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $32.59

01X125MA

21

Bolt, Hex

Part# 01X125MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.92

54769E701

22

Assembly, Bagger Mount

Part# 54769E701

OEM Warranty Repair Part for Murray

Not available

01X141MA

23

Bolt, Hex

Part# 01X141MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.74

010851  Z

24

Washer

Part# 010851 Z

OEM Warranty Repair Part for Murray

Currently unavailable

15X108MA

28

Nut, Super Flange

Part# 15X108MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.21

015X41MA

30

Nut, Hex

Part# 015X41MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.21

054774MA

43

Extension, Chute

Part# 054774MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $100.63

015X89MA

44

Locknut, Flange

Part# 015X89MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.21

054563MA

45

Pin, Latch

Part# 054563MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $19.25

002X39MA

46

Bolt, Carriage

Part# 002X39MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.74

054692MA

47

Extension, Chute

Part# 054692MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $231.47

014X86MA

48

Wingnut

Part# 014X86MA (Superseded to 703141)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.29

002X74MA

49

Bolt, Carriage

Part# 002X74MA (Superseded to 703185)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.29

004X71MA

50

Screw

Part# 004X71MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.27

054695MA

51

Latch, Rubber

Part# 054695MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $7.76

15X109MA

52

Nut

Part# 15X109MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.86

054416  Z

53

Handle, Connector Tube

Part# 054416 Z

Not available

054778MA

54

Tube, Connecting

Part# 054778MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $86.45

091944MA

55

Elbow

Part# 091944MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $85.17

26X239MA

56

Screw

Part# 26X239MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.98

0193X1MA

57

Fastener, Panel

Part# 0193X1MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.98

054503

--

Bag, Plastic

Part# 054503

OEM Warranty Repair Part for Murray

Currently unavailable

054537MA

58

Handle, Plastic

Part# 054537MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $15.17

015X81MA

59

Nut, Hex

Part# 015X81MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.21

F-99905

--

Book, Instruction

Part# F-99905

OEM Warranty Repair Part for Murray

Currently unavailable
