247930x00A - Murray Grass Bagger (2001) Grass Bagger Parts Diagram

Grass Bagger

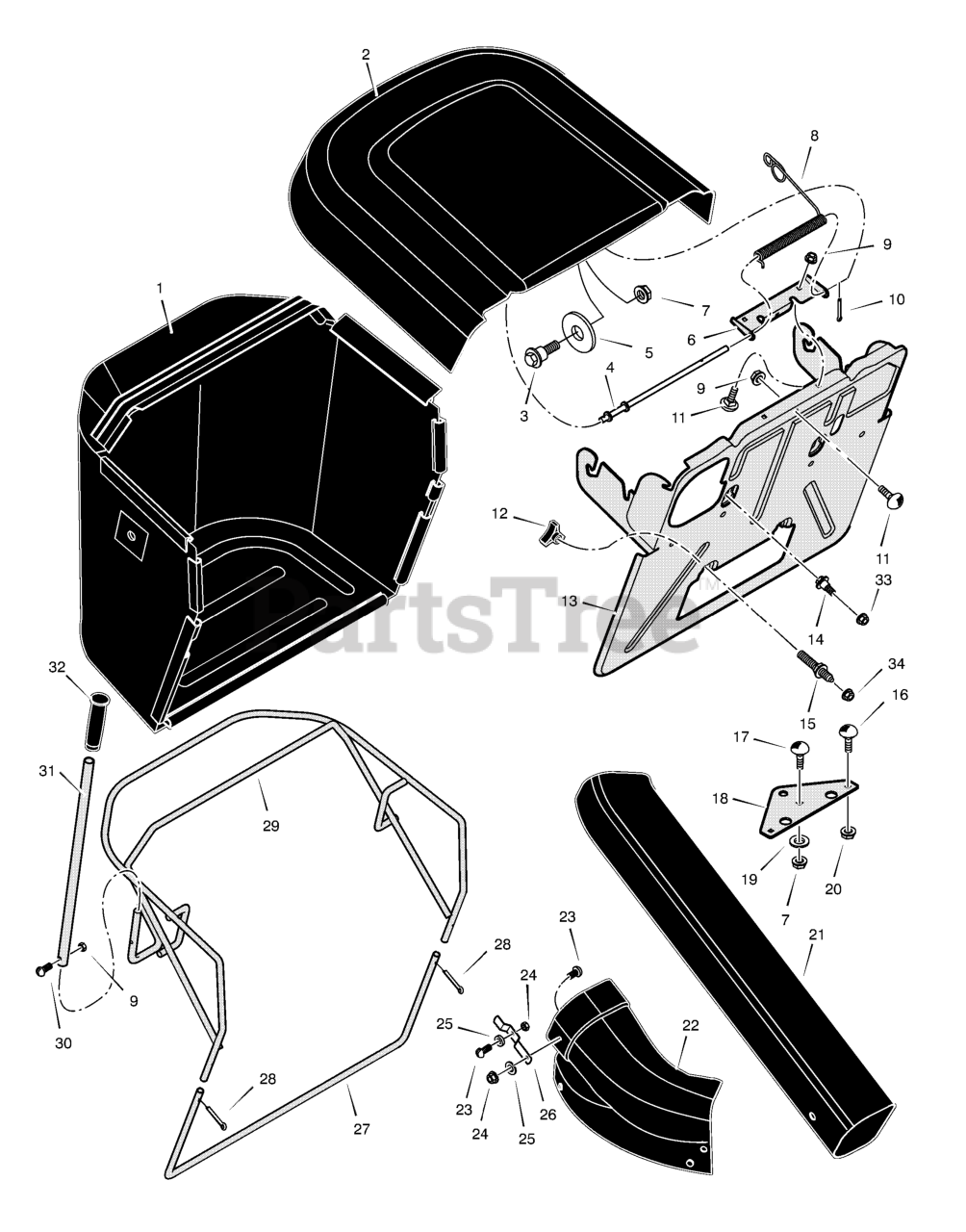

Grass Bagger Parts Diagram

  • Title

1

Murray 1401173

Bag, Cloth

$

$

Not available

2

Murray 1401083MA

Cover, Red Bag
(Superseded to 1401286MA)

$329.99

$

Usually ships in 2-12 days

0

--

Murray 1401189

Cover, Black Bag

$

$

Currently unavailable

--

Murray 1401188

Cover, Green Bag

$

$

Currently unavailable

3

Murray 009X13MA

Bolt, Shoulder

$4.49

$

Usually ships in 2-12 days

0

4

Murray 1401168

Rod, Bag Lid

$

$

Not available

5

Murray 17X152 Z

Washer

$

$

Currently unavailable

6

Murray 1401190-853

Hinge, Bag Top

$

$

Currently unavailable

7

Murray 015X84MA

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

8

Murray 166X47MA

Spring, Torsion

$25.99

$

Usually ships in 2-12 days

0

9

Murray 015X89MA

Nut

$4.49

$

Usually ships in 2-12 days

0

10

Murray 030X50

Pin, Cotter

$3.99

$

In Stock, Qty 20+

0

11

Murray 002X82MA

Bolt, Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

12

Murray 740227MA

Knob

$6.49

$

Usually ships in 2-12 days

0

13

Murray 1401182-853

Assembly, Bag Plate & Hanger

$

$

Currently unavailable

14

Murray 009X70

Bolt, Shoulder

$19.99

$

Usually ships in 2-12 days

0

15

Murray 06X110

Stud, Double End

$4.99

$

In Stock, only 2 left!

0

16

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

17

Murray 002X57MA

Bolt, Carriage
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

18

Murray 1401178-853

Bracket, Hitch Extension

$

$

Currently unavailable

19

Murray 17X104MA

Washer
(Superseded to 710083MA)

$7.49

$

In Stock, only 2 left!

0

20

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

21

Murray 1401089MA

Tube, Connecting

$

$

Not available

22

Murray 1401088MA

Tube, Extension

$

$

Not available

23

Murray 006X91MA

Bolt

$3.49

$

Usually ships in 2-12 days

0

24

Murray 014X77MA

Acorn Nut

$4.49

$

Usually ships in 2-12 days

0

25

Murray 712440MA

Washer

$4.99

$

In Stock, only 1 left!

0

26

Murray 1401175MA

Spring, Leaf

$17.99

$

Usually ships in 2-12 days

0

27

Murray 1401155-853

Tube, Bag Frame

$

$

Currently unavailable

28

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

29

Murray 1401167-853

Frame, Bag

$

$

Currently unavailable

30

Murray 001X94

Bolt

$

$

Not available

31

Murray 1401141-853

Lever, Dump

$

$

Currently unavailable

32

Murray 1401176MA

Grip

$7.49

$

Usually ships in 2-12 days

0

33

Murray 015X85

Nut, Flange

$

$

Not available

34

Murray 015X79MA

Nut
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

--

Murray F-010903J

Flyer

$

$

Currently unavailable

--

Murray F-010904J

Book, Instruction

$

$

Currently unavailable
