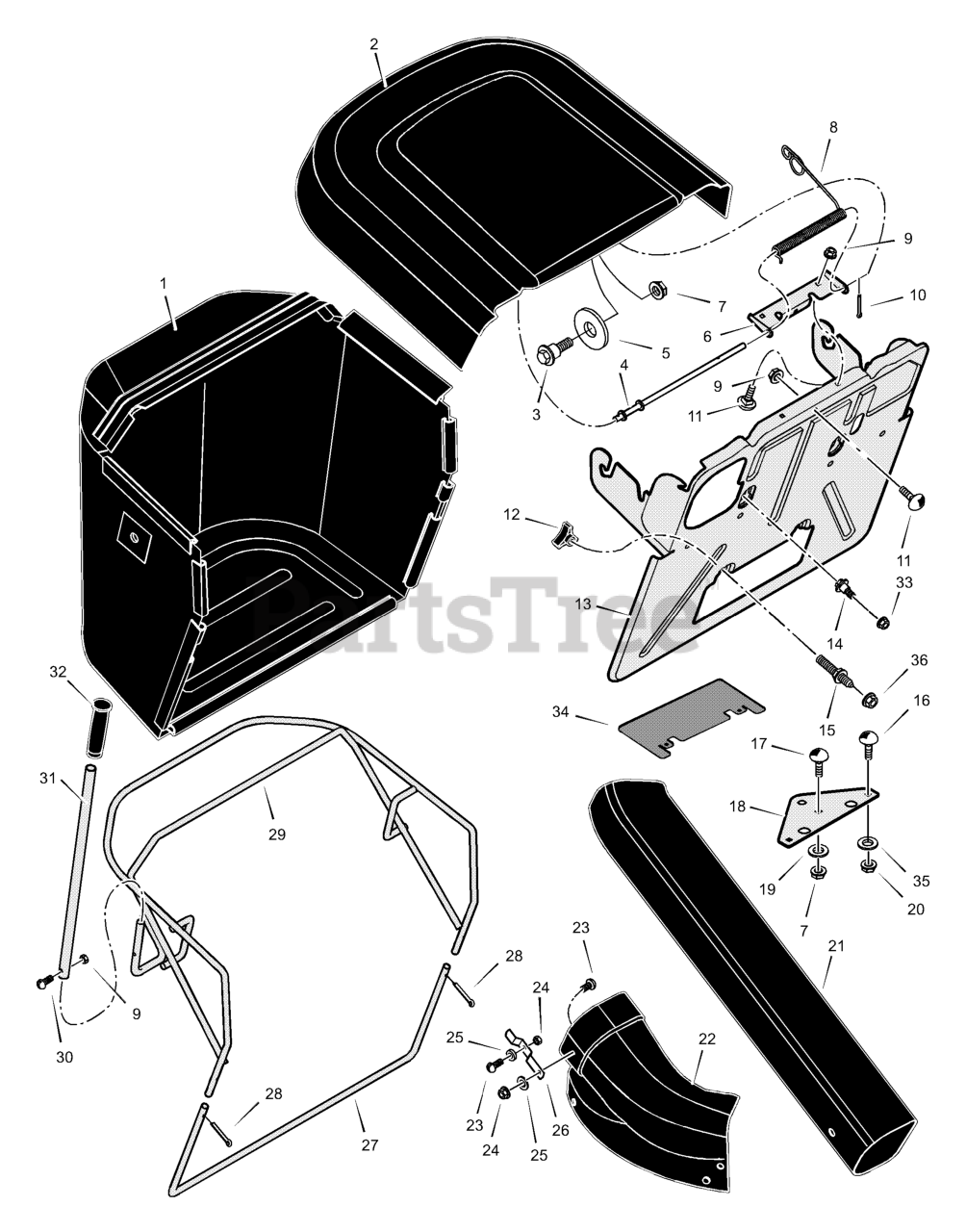

247930x68A - Murray Grass Bagger (2002) Diagram Parts Diagram

Grass Bagger

Diagram Parts Diagram

  • Title

1

Murray 1401246

Bag, Cloth
(Superseded to 1401173MA)

$

$

Not available

2

Murray 1401189

Cover, Bag (Black)

$

$

Currently unavailable

3

Murray 009X13MA

Bolt, Shoulder

$4.49

$

Usually ships in 2-12 days

0

4

Murray 1401168

Rod, Bag Lid

$

$

Not available

5

Murray 17X152 Z

Washer

$

$

Currently unavailable

6

Murray 1401190E701MA

Hinge, Bag Top

$40.99

$

Usually ships in 2-12 days

0

7

Murray 015X84MA

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

8

Murray 166X47MA

Spring, Torsion

$25.99

$

Usually ships in 2-12 days

0

9

Murray 015X89MA

Nut

$4.49

$

Usually ships in 2-12 days

0

10

Murray 030X50

Pin, Cotter

$3.99

$

In Stock, Qty 20+

0

11

Murray 002X82MA

Bolt, Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

12

Murray 740227MA

Knob

$6.49

$

Usually ships in 2-12 days

0

13

Murray 1401182E701

Assembly, Bag Plate & Hanger

$

$

Currently unavailable

14

Murray 009X70

Bolt, Shoulder

$19.99

$

Usually ships in 2-12 days

0

15

Murray 06X110

Stud, Double End

$4.99

$

In Stock, only 2 left!

0

16

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

17

Murray 002X57MA

Bolt, Carriage
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

18

Murray 1401178E701MA

Bracket, Hitch Extension

$37.99

$

Usually ships in 2-12 days

0

19

Murray 17X104MA

Washer
(Superseded to 710083MA)

$7.49

$

In Stock, only 2 left!

0

20

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

21

Murray 1401089MA

Tube, Connecting

$

$

Not available

22

Murray 1401088MA

Tube, Extension

$

$

Not available

23

Murray 006X91MA

Bolt

$3.49

$

Usually ships in 2-12 days

0

24

Murray 014X77MA

Acorn Nut

$4.49

$

Usually ships in 2-12 days

0

25

Murray 17X180MA

Washer

$6.99

$

Usually ships in 2-12 days

0

26

Murray 1401175MA

Spring, Leaf

$17.99

$

Usually ships in 2-12 days

0

27

Murray 1401155E701MA

Tube, Bag Frame

$57.99

$

Usually ships in 2-12 days

0

28

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

29

Murray 1401167E701MA

Frame, Bag

$259.99

$

Usually ships in 2-12 days

0

30

Murray 001X94

Bolt

$

$

Not available

31

Murray 1401141E701MA

Lever, Dump

$33.99

$

Usually ships in 2-12 days

0

32

Murray 1401176MA

Grip

$7.49

$

Usually ships in 2-12 days

0

33

Murray 015X85

Nut, Flange

$

$

Not available

34

Murray 1401242MA

Baffle, Bag Plate

$16.99

$

Usually ships in 2-12 days

0

35

Murray 17X212

Washer

$

$

Not available

36

Murray 015X79MA

Nut
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

--

Murray F-020901L

Book, Instruction

$

$

Currently unavailable
