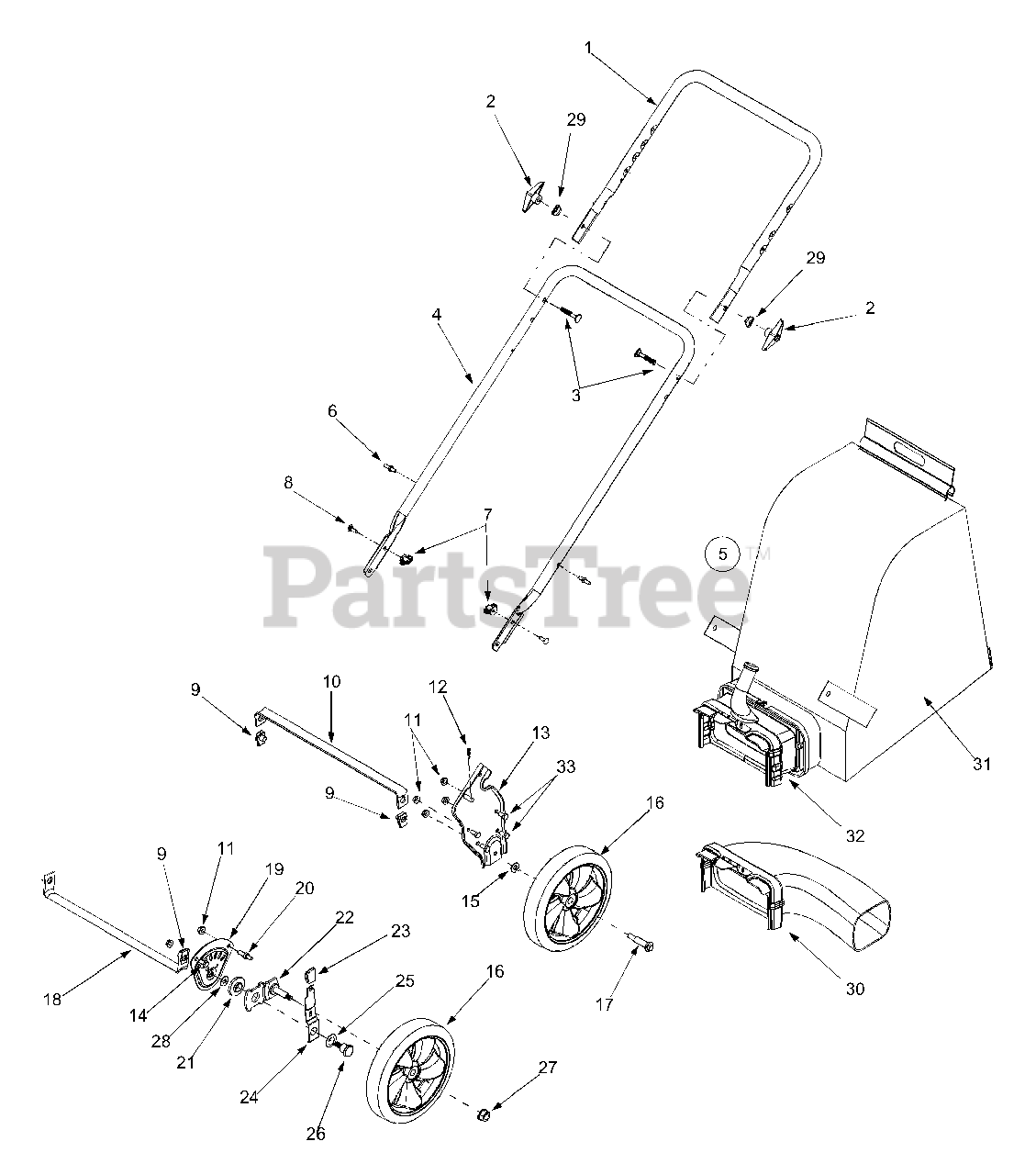

24A-020D129 - Yard Machines Shredder Vacuum (2004) (Home Depot) > Parts Diagrams (2) > General Assembly

  • Title
749-0438D

1

Upper Handle

Part# 749-0438D

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

Upper Handle

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $25.94

720-0241

2

Handle Knob 5/16-18

Part# 720-0241 (Superseded to 720-04072A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.50

710-1174

3

Carriage Bolt

Part# 710-1174

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.66

749-0907B

4

Lower Handle

Part# 749-0907B

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

Lower Handle

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $35.02

664-0095

5

Bag Assembly

Part# 664-0095 (Superseded to 664-04040)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $155.98

711-1293

6

Studs

Part# 711-1293

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.11

712-0397

7

Wing Nut 1/4-20

Part# 712-0397 (Superseded to 712-0397A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.73

710-0703

8

Carriage Screw 1/4-20 x.75

Part# 710-0703

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.73

726-0453

9

Lock U-Clip Nut 3/8-16

Part# 726-0453

OEM Warranty Repair Part for MTD

Not available

781-0777

10

Rear Wheel Support Brace

Part# 781-0777

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

No Longer Available BRACE REAR

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

712-3004A

11

Flange Lock Nut 5/16-18

Part# 712-3004A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.56

714-0104

12

Cotter Pin

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.85

681-0155

13

Handle Bracket Ass'y LH

Part# 681-0155

OEM Warranty Repair Part for MTD

Variations

OLD CUB YELLOW (0498)

No Longer Available

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for MTD

Not available

MTD/TROY-BILT RED (0638)

BRACKET ASM-HNDL LH

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $29.48

OYSTER GRAY (0662)

No Longer Available BRACKET AS

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Not available

YARDMAN GREEN (0665)

No Longer Available BRACKET AS

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Not available

POLO GREEN (0689)

No Longer Available BRACKET AS

Part# POLO GREEN (0689)

OEM Warranty Repair Part for MTD

Not available

CUB YELLOW-99 (0716)

No Longer Available BRACKET AS

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for MTD

Not available

SEARS RED (0721)

BRACKET ASM-HNDL LH

Part# SEARS RED (0721)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $29.48

681-0156

Hndle Brkt Ass'y RH

Part# 681-0156

Note: (Not Shown)

OEM Warranty Repair Part for MTD

Variations

OLD CUB YELLOW (0498)

No Longer Available

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for MTD

Not available

MTD/TROY-BILT RED (0638)

BRACKET ASM-HNDL RH

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $29.48

OYSTER GRAY (0662)

No Longer Available

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Not available

YARDMAN GREEN (0665)

No Longer Available BRACKET AS

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Not available

POLO GREEN (0689)

No Longer Available BRACKET AS

Part# POLO GREEN (0689)

OEM Warranty Repair Part for MTD

Not available

CUB YELLOW-99 (0716)

No Longer Available BRACKET AS

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for MTD

Not available

SEARS RED (0721)

No Longer Available BRACKET AS

Part# SEARS RED (0721)

OEM Warranty Repair Part for MTD

Not available

CRAFTSMAN RED (4044)

No Longer Available BRACKET AS

Part# CRAFTSMAN RED (4044)

OEM Warranty Repair Part for MTD

Not available

710-3025

14

Hex Cap Screw 5/16-18 x.625

Part# 710-3025

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.67

736-0105

15

Bell Washer.401 ID x.870 OD

Part# 736-0105

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.92

734-1987

16

Wheel 8 x 8.1

Part# 734-1987

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $16.07

738-1015

17

Shoulder Screw 3/8-16

Part# 738-1015

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.97

781-0725A

18

Front Wheel Support Brace

Part# 781-0725A

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

BRACE-FRONT WHEEL

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

781-0785

19

Height Adjustment Bracket

Part# 781-0785

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

BRACKET-HEIGHT ADJ

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

738-1185

20

Stud 5/16-18 .56 x .75

Part# 738-1185

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.66

741-0751

21

Height Adjustment Bearing

Part# 741-0751

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.58

682-0113

22

Pivot Arm Assembly

Part# 682-0113

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $9.63

720-0426

23

Height Adjustment Knob

Part# 720-0426

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $8.90

732-1026

24

Spring Lever

Part# 732-1026

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.27

736-0741

25

Bell Washer .760 ID x .25OD

Part# 736-0741

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.95

738-1173

26

Shoulder Screw .750 ID x .625 OD

Part# 738-1173

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.34

712-0431

27

Flange Lock Nut 3/8-16

Part# 712-0431 (Superseded to 912-0431)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.18

736-0314

28

Thrust Washer .375 ID x .70 OD

Part# 736-0314 (Superseded to 936-0314)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.45

769-0451

29

Saddle Washer

Part# 769-0451

OEM Warranty Repair Part for MTD

Currently unavailable

631-0090

30

Blower Chute Ass'y (if so equipped)

Part# 631-0090 (Superseded to OEM-290-012)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $82.73

764-0632

31

Bag

Part# 764-0632 (Superseded to 664-04040)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $155.98

631-0083

32

Chute Assembly

Part# 631-0083

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $65.66

710-3025

33

Hex Cap Screw 5/16-18 x.750

Part# 710-3025

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.67
