24A-020D129 - Yard Machines Shredder Vacuum (2004) (Home Depot)

Shredder Vacuum

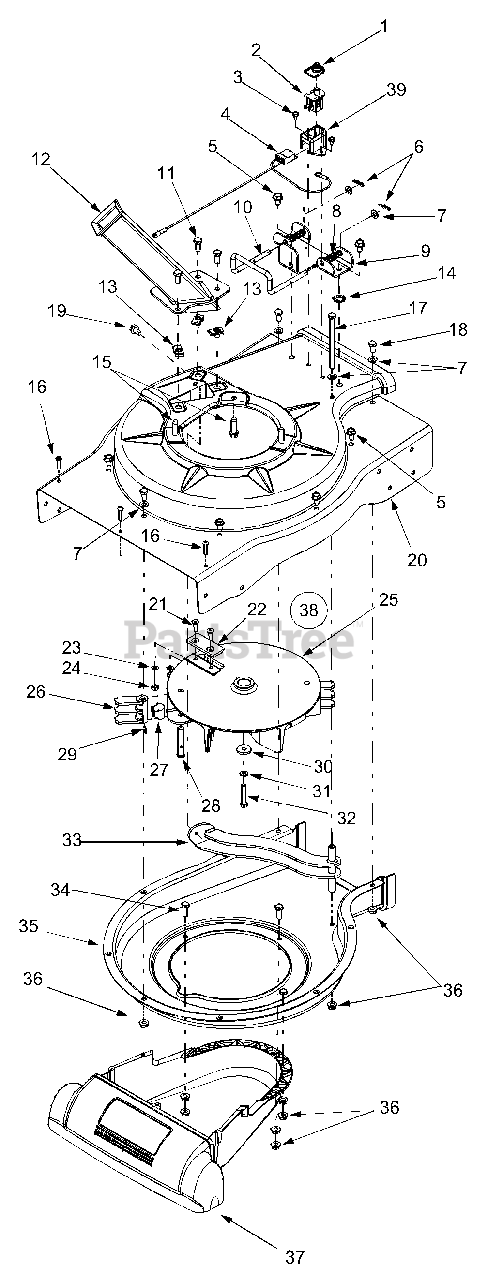

24A-020D129 - Yard Machines Shredder Vacuum (2004) (Home Depot) > Parts Diagrams (2) > Impeller

  • Title
725-1700

1

Switch Cover

Part# 725-1700 (Superseded to 925-1700)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.71

725-3166

2

Safety Switch

Part# 725-3166 (Superseded to 925-3166)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $11.80

710-0224

3

Hex Washer Screw #10-16 x.50

Part# 710-0224 (Superseded to 910-0224)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.36

629-0920

4

Wire Harness

Part# 629-0920 (Superseded to 629-0920A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $27.18

710-0604A

5

Hex Washer Screw 5/16-18 x.625

Part# 710-0604A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.92

714-0104

6

Cotter Pin

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.85

736-0264

7

Flat Washer.330 ID x.630 OD

Part# 736-0264 (Superseded to 936-0264)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.44

732-0962

8

Compression Spring

Part# 732-0962

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.98

781-0778A

9

Mounting Bracket

Part# 781-0778A

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

BRACKET-MOUNTING

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $12.02

747-1153

10

Lock Rod

Part# 747-1153

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $10.74

710-3008

11

Hex Cap Screw 5/16-18 x.75

Part# 710-3008

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.76

681-0122

12

Chipper Chute Assembly

Part# 681-0122

OEM Warranty Repair Part for MTD

Variations

OLD CUB YELLOW (0498)

CHUTE CHIPPER ASM.

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for MTD

Not available

MTD/TROY-BILT RED (0638)

CHUTE CHIPPER ASM.

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $64.57

OYSTER GRAY (0662)

CHUTE CHIPPER ASM.

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Not available

YARDMAN GREEN (0665)

CHUTE CHIPPER ASM.

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Not available

POLO GREEN (0689)

CHUTE CHIPPER ASM.

Part# POLO GREEN (0689)

OEM Warranty Repair Part for MTD

Not available

CUB YELLOW-99 (0716)

No Longer Available CHUTE CHIP

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for MTD

Not available

SEARS RED (0721)

CHUTE ASM-CHIPPER

Part# SEARS RED (0721)

OEM Warranty Repair Part for MTD

Not available

CUB YELLOW 2 (4021)

No Longer Available CHUTE CHIP

Part# CUB YELLOW 2 (4021)

OEM Warranty Repair Part for MTD

Not available

CRAFTSMAN RED (4044)

CHUTE ASM-CHIPPER

Part# CRAFTSMAN RED (4044)

OEM Warranty Repair Part for MTD

Not available

726-0454

13

U-Clip Lock Nut 5/16-18

Part# 726-0454

OEM Warranty Repair Part for MTD

Not available

736-0607

14

External Lock Washer 5/16

Part# 736-0607

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.69

710-0502A

15

Hex Washer Screw 3/8-16 x 1.25

Part# 710-0502A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.24

710-0969

16

Screw #12-16 x 1.0

Part# 710-0969

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.89

710-3195

17

Hex Cap Screw 5/16-18 x 4.5

Part# 710-3195

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.73

710-3025

18

Hex Cap Screw 5/16-18 x.625

Part# 710-3025

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.67

710-0604A

19

Hex Washer Screw 5/16-18 x.625

Part# 710-0604A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.92

781-1085

20

Upper Housing

Part# 781-1085

OEM Warranty Repair Part for MTD

Variations

OLD CUB YELLOW (0498)

UPPER FAIL SERVICE KIT

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $145.52

MTD/TROY-BILT RED (0638)

KIT-SERVICE UPPER

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $145.52

OYSTER GRAY (0662)

KIT-SERVICE UPPER

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $145.52

YARDMAN GREEN (0665)

KIT-SERVICE UPPER

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $145.52

POLO GREEN (0689)

KIT-SERVICE UPPER

Part# POLO GREEN (0689)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $145.52

CUB YELLOW-99 (0716)

UPPER FAIL SERVICE KIT

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $145.52

710-1054

21

Hex Screw 5/16-24 x 1.0

Part# 710-1054

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.76

781-0490

22

Chipper Blade

Part# 781-0490 (Superseded to 981-0490)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $21.31

736-0119

23

Lock Washer 5/16

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

712-0411

24

Hex Lock Nut 5/16-24

Part# 712-0411 (Superseded to 912-0411)

OEM Warranty Repair Part for MTD

Not available

719-0530A

25

Impeller Weldment

Part# 719-0530A

OEM Warranty Repair Part for MTD

Currently unavailable

719-0329

26

Flail

Part# 719-0329

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $23.00

781-0735

27

Pin Clip

Part# 781-0735

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.76

711-1401

28

Clevis Pin

Part# 711-1401

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.34

715-0166

29

Spiral Pin

Part# 715-0166

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.40

736-0247

30

Flat Washer.375 ID x 1.25 OD

Part# 736-0247

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.47

736-0217

31

Lock Washer 3/8

Part# 736-0217 (Superseded to 936-0217)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.83

710-0818

32

Hex Cap Screw 3/8-24 x 2.0

Part# 710-0818

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.42

681-0154

33

Screen Assembly

Part# 681-0154

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

SCREEN ASM.

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $34.08

710-1238

34

Hex Cap Screw 5/16-18 x.875

Part# 710-1238

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94

781-0721A

35

Lower Housing

Part# 781-0721A

OEM Warranty Repair Part for MTD

Variations

OLD CUB YELLOW (0498)

LOWER FLAIL HOUSING

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for MTD

Not available

MTD/TROY-BILT RED (0638)

HOUSING-FLAIL LWR

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $110.21

OYSTER GRAY (0662)

HOUSING-FLAIL LWR

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $110.21

YARDMAN GREEN (0665)

HOUSING-FLAIL LWR

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $110.21

POLO GREEN (0689)

HOUSING-FLAIL LWR

Part# POLO GREEN (0689)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $110.21

CUB YELLOW-99 (0716)

LOWER FLAIL HOUSING

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $110.21

712-3004A

36

Lock Nut 5/16-18

Part# 712-3004A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.56

731-1905

37

Nozzle Cover

Part# 731-1905 (Superseded to 731-1905A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $80.57

681-0152

38

Impeller Assembly

Part# 681-0152 (Superseded to 981-0152)

Note: (Includes Ref. 21- Ref. 29)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $391.24

731-1613

39

Safety Switch Cover

Part# 731-1613 (Superseded to 931-1613)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.79

723-0400

Safety Glasses

Part# 723-0400

Note: (Not Shown)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $17.18
