24A-02MM001 - Yard-Man Shredder Vacuum (2010) General Assembly 24A-02MM001 Parts Diagram

Shredder Vacuum

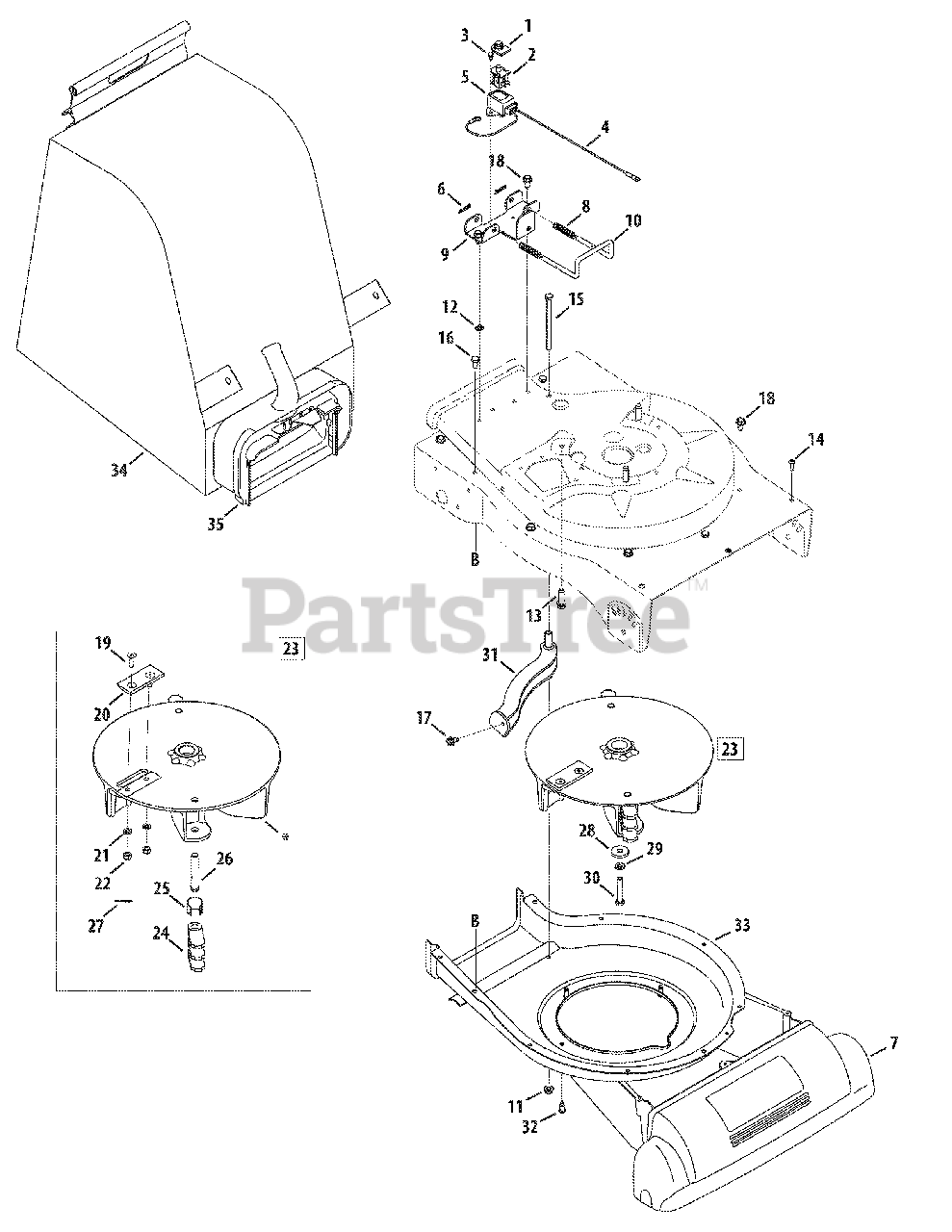

General Assembly 24A-02MM001 Parts Diagram

  • Title

1

MTD 925-1700

Switch Cover

$12.99

$

In Stock, only 2 left!

0

2

MTD 925-3166

Safety Switch

$17.99

$

In Stock, Qty 20+

0

3

MTD 910-0224

Hex Washer Screw, #10-16 x.50

$3.99

$

In Stock, Qty 14

0

4

MTD 629-0920A

Wire Harness

$44.99

$

Usually ships in 3-6 days

0

5

MTD 931-1613

Safety Switch Cover

$11.99

$

In Stock, only 2 left!

0

6

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 16

0

7

MTD 731-1905A

Nozzle Cover

$131.99

$

Usually ships in 3-6 days

0

8

MTD 732-0962

Compression Spring

$4.99

$

Usually ships in 3-6 days

0

9

MTD 781-0778A-0637

Mounting Bracket

$18.99

$

Usually ships in 3-6 days

0

10

MTD 747-1153

Lock Rod

$17.99

$

Usually ships in 3-6 days

0

11

MTD 712-04063

Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

12

MTD 736-0607

External Lock Washer 5/16

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-0654A

Hex Washer Screw 3/8-16 x 1.25

$4.99

$

In Stock, Qty 20+

0

14

MTD 710-1220

Screw, #12-16 x .750

$4.99

$

In Stock, only 4 left!

0

15

MTD 710-3195

Hex Cap Screw 5/16-18 x 4.5

$7.99

$

Usually ships in 3-6 days

0

16

MTD 710-3025

Hex Cap Screw 5/16-18 x.625

$4.49

$

In Stock, Qty 7

0

17

MTD 710-0607

Screw, 5/16-18 x.500

$6.99

$

In Stock, Qty 20+

0

18

MTD 710-0726

Screw, 5/16-12 x.75

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-1054

Hex Screw 5/16-24 x 1.0

$4.49

$

In Stock, Qty 20+

0

20

MTD 981-0490

Chipper Blade

$32.99

$

In Stock, Qty 6

0

21

MTD 936-0119

Lock Washer 5/16

$4.99

$

In Stock, Qty 20+

0

22

MTD 912-0411

Hex Lock Nut 5/16-24
(Superseded to 712-0411)

$

$

Not available

23

MTD 981-0152

Impeller Assembly

Note: * Impeller not avaible separately. To service the impeller, entire assembly must be furnished.

$566.99

$

Usually ships in 3-6 days

0

24

MTD 719-0329

Flail Blade

$33.99

$

In Stock, only 2 left!

0

25

MTD 781-0735

Pin Clip

$4.49

$

In Stock, Qty 20+

0

26

MTD 711-1401

Clevis Pin

$10.99

$

Usually ships in 3-6 days

0

27

MTD 715-0166

Spiral Pin

$7.49

$

In Stock, Qty 13

0

28

MTD 736-0247

Flat Washer.375 ID x 1.25 OD

$10.99

$

In Stock, Qty 20+

0

29

MTD 936-0217

Lock Washer 3/8
(Superseded to 736-0217)

$4.49

$

In Stock, only 3 left!

0

30

MTD 710-0818

Hex Cap Screw 3/8-24 x 2.0

$7.49

$

In Stock, only 2 left!

0

31

MTD 681-0154-0637

Screen Assembly

$51.99

$

Usually ships in 3-6 days

0

32

MTD 710-1650

Shoulder Screw, .30 x .46

$4.99

$

In Stock, Qty 20+

0

33

MTD 781-0721B-0709

Lower Housing

$166.99

$

Usually ships in 3-6 days

0

34

MTD 664-04040

Bag Assembly

$243.99

$

In Stock, Qty 9

0

35

MTD 631-0083

Chute Assembly
(Superseded to 631P0083A)

$113.99

$

Usually ships in 3-6 days

0

MTD 723-0400

Safety Glasses

Note: (Not Shown)

$27.99

$

Usually ships in 3-6 days
