24A-103A401 - Yard-Man Chipper Shredder (1998) Handle Assembly Parts Diagram

Chipper Shredder

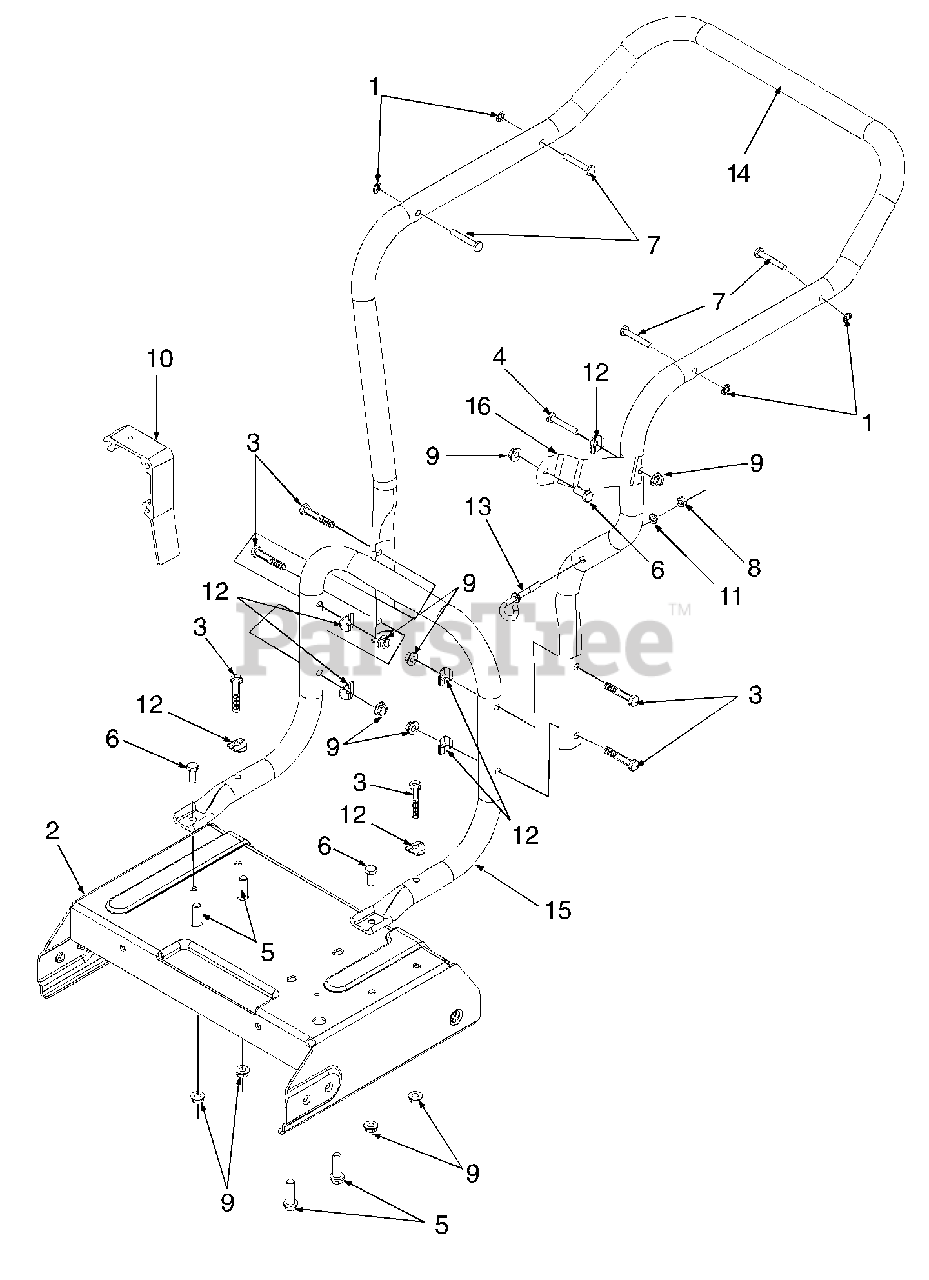

Handle Assembly Parts Diagram

  • Title

1

MTD 1539-019

Nut, Push

$3.99

$

In Stock, Qty 16

0

2

MTD 681-0086A-0665

Frame Assembly

$

$

Currently unavailable

3

MTD 710-0380

Screw, Hex Cap, 5/16-18 x 1.75
(Superseded to 710-3180)

$4.99

$

In Stock, Qty 20+

0

4

MTD 710-0442

Screw, Hex Cap, 5/16-18 x 1.50
(Superseded to 710-0805A)

$3.99

$

In Stock, only 2 left!

0

5

MTD 710-0502A

Screw, Hex Wash. Hd. Tapp, 3/8-16 x 1.25

$6.49

$

In Stock, Qty 7

0

6

MTD 710-3008

Screw, Hex Cap, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

7

MTD 711-0737

Pin, Stud, .250 x 1.75
(Superseded to 911-0737)

$4.49

$

In Stock, Qty 11

0

8

MTD 712-0138

Nut, Hex, 1/4-28

$6.49

$

Usually ships in 3-6 days

0

9

MTD 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

10

MTD 719-0330A

Adapter, Mounting

$

$

Not available

11

MTD 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

12

MTD 736-0451

Washer, Saddle, .32 ID x .93 OD

$3.99

$

In Stock, only 2 left!

0

13

MTD 747-0815

Bolt, Eye

$14.99

$

Usually ships in 3-6 days

0

14

MTD 749-0979-0665

Handle, Upper

$

$

Not available

15

MTD 749-0980-0665

Handle, Lower

$

$

Not available

16

MTD 781-0647-0665

Bracket, Chute Stabilizing

$12.99

$

Usually ships in 3-6 days

0
