24A-203B401 - Yard-Man Shredder Vacuum (1998) Impeller Parts Diagram

Shredder Vacuum

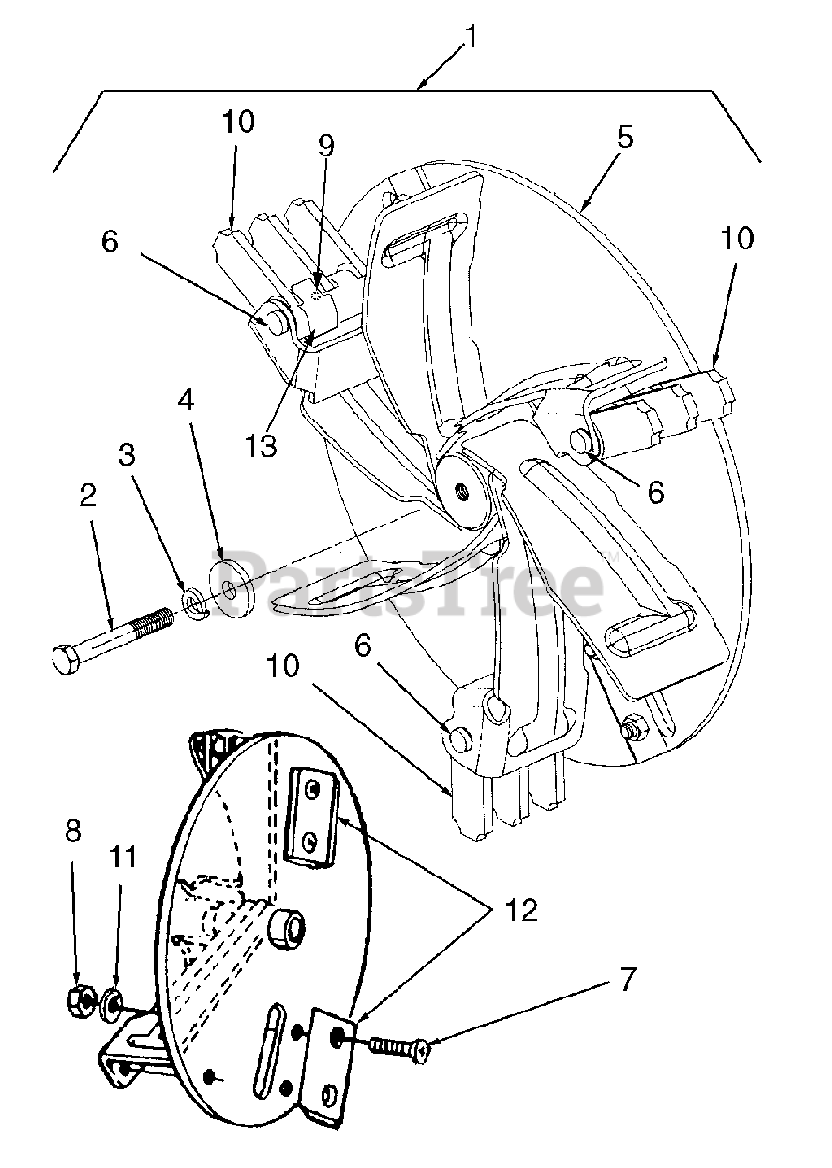

Impeller Parts Diagram

  • Title

1

MTD 681-0051

Impeller Ass'y, Complete (103A)
(Superseded to 981-04090)

Note: Includes Ref. Nos. 5 thru 13

$372.99

$

Usually ships in 3-6 days

0

MTD 681-0108

Impeller Ass'y, Complete (203B)
(Superseded to 981-04090)

Note: Includes Ref. Nos. 5 thru 13

$372.99

$

Usually ships in 3-6 days

0

2

MTD 710-1273

Screw, Hex Cap, 3/8-24 x 2.75 GR5

$8.49

$

Usually ships in 3-6 days

0

3

MTD 736-0217

Washer, Lock, 3/8 Heavy Duty

$4.49

$

In Stock, only 3 left!

0

4

MTD 736-0247

Washer, Flat, .406 x 1-1/4 HD

$10.99

$

In Stock, Qty 20+

0

5

MTD 681-0052

Impeller Assembly (103A)
(Superseded to 981-04091)

$565.99

$

Usually ships in 3-6 days

0

MTD 681-0107

Impeller Assembly (203B)
(Superseded to 981-04090)

$372.99

$

Usually ships in 3-6 days

0

6

MTD 711-0833B

Pin, Clevis
(Superseded to 911-0833B)

$12.99

$

In Stock, only 2 left!

0

7

MTD 710-1054

Screw, Flat Hd. Cap, 5/16-24 x 1.0

$4.49

$

In Stock, Qty 20+

0

8

MTD 712-0411

Nut, Hex Insert Lock, 5/16-24

$4.49

$

In Stock, Qty 20+

0

9

MTD 715-0166

Pin, Spirol,.156x 1.000 Std.

$7.49

$

In Stock, Qty 13

0

10

MTD 719-0329

Blade, Flail

$33.99

$

In Stock, only 2 left!

0

11

MTD 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

MTD 781-0490

Blade, Chipper
(Superseded to 981-0490)

$32.99

$

In Stock, Qty 6

0

13

MTD 781-0735

Clip, Retainer

$4.49

$

In Stock, Qty 20+

0
