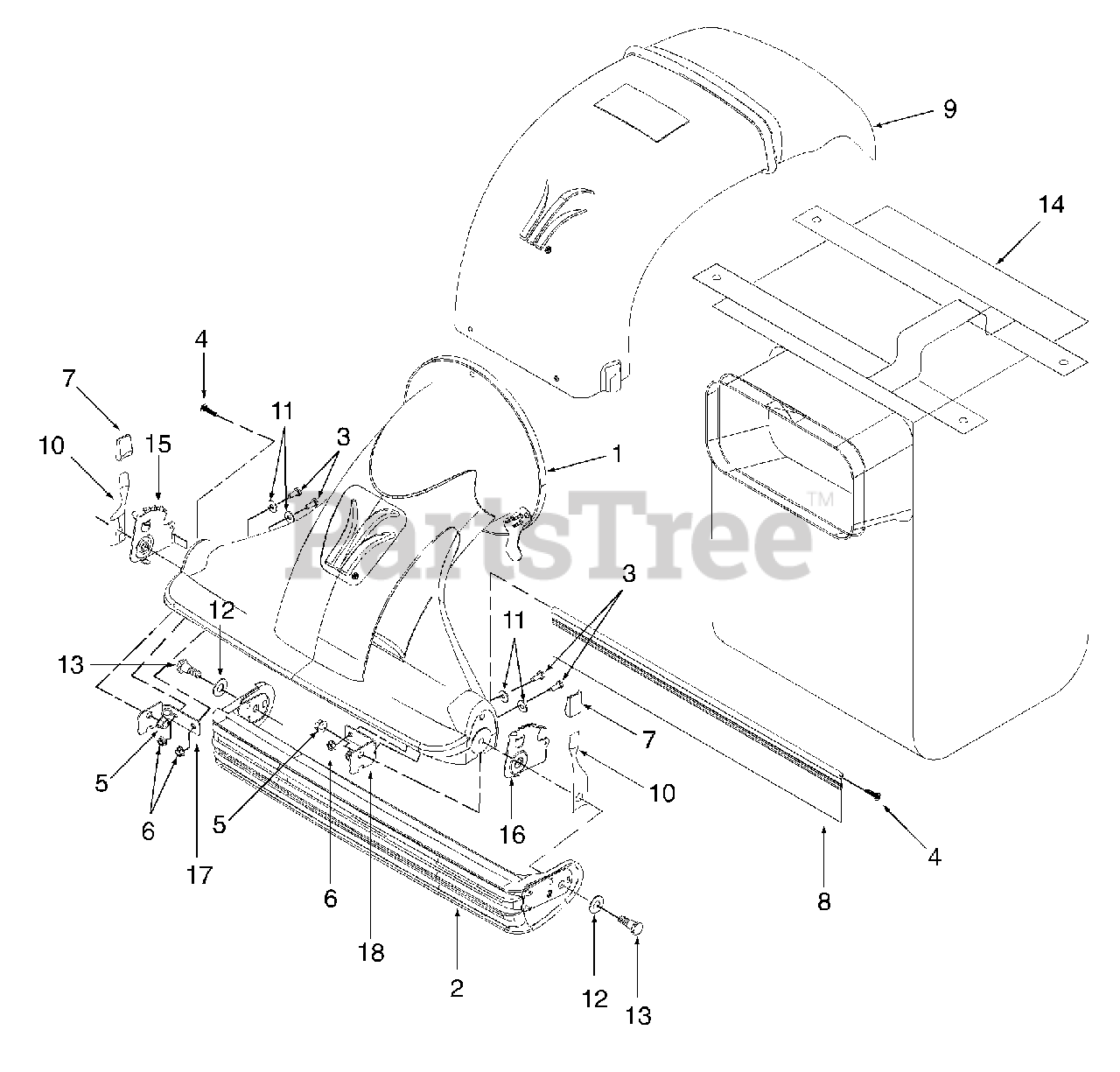

24A-203B401 - Yard-Man Shredder Vacuum (1998) Nozzle & Bag Parts Diagram

Shredder Vacuum

Nozzle & Bag Parts Diagram

  • Title

1

MTD 631-0046

Nozzle Assembly, Yellow
(Superseded to 631-0086)

$

$

Not available

2

MTD 631-0047

Door Assembly, Yellow

$

$

Not available

3

MTD 710-0258

Screw, Hex Cap, 1/4-20 x .625
(Superseded to 710-0751)

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0969

Screw, Truss Hd Tapp

$4.99

$

In Stock, only 1 left!

0

5

MTD 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

6

MTD 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

7

MTD 720-0190

Knob, Height Adj.
(Superseded to 731-13116-1)

$14.99

$

In Stock, only 1 left!

0

8

MTD 731-1831

Flap, Nozzle Rear

$21.99

$

In Stock, only 2 left!

0

9

MTD 731-1838

Discharge Chute
(Superseded to 731-1838A)

$205.99

$

Usually ships in 3-6 days

0

10

MTD 732-0754

Spring Lever

$10.99

$

In Stock, only 2 left!

0

11

MTD 736-0173

Washer, Flat, .28 x .74 x .06

$4.49

$

In Stock, Qty 20+

0

12

MTD 736-3084

Washer, Flat, .510 x 1.20 x .060

$5.49

$

In Stock, Qty 20+

0

13

MTD 738-0913

Screw, Shoulder, .50 x .545 x 3/8-16

$13.99

$

In Stock, only 2 left!

0

14

MTD 764-0492

Bag, 3 Bushel
(Superseded to 964-04001)

$232.99

$

In Stock, only 1 left!

0

15

MTD 781-0702

Bracket, Door Index RH
(Superseded to 781-0702-0637)

Variations

MTD 781-0702-0637

Index Door Bracket, RH - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

16

MTD 781-0703

Bracket, Door Index LH
(Superseded to 781-0703-0637)

Variations

MTD 781-0703-0637

Index Door Bracket, LH - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

17

MTD 781-0704

Bracket, Nozzle Reinforcement RH
(Superseded to 781-0704-0637)

Variations

MTD 781-0704-0637

NOZZLE REINFORCMENT BRACKET RH - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 781-0705

Bracket, Nozzle Reinforcement LH

Variations

MTD 781-0705-0637

NOZZLE REINFORCMENT BRACKET LH - POWDER BLACK (0637)

$

$

Not available

$

$
