24A-45M4000 - Yard Machines Chipper Shredder (2013) Chute & Wheels Parts Diagram

Chipper Shredder

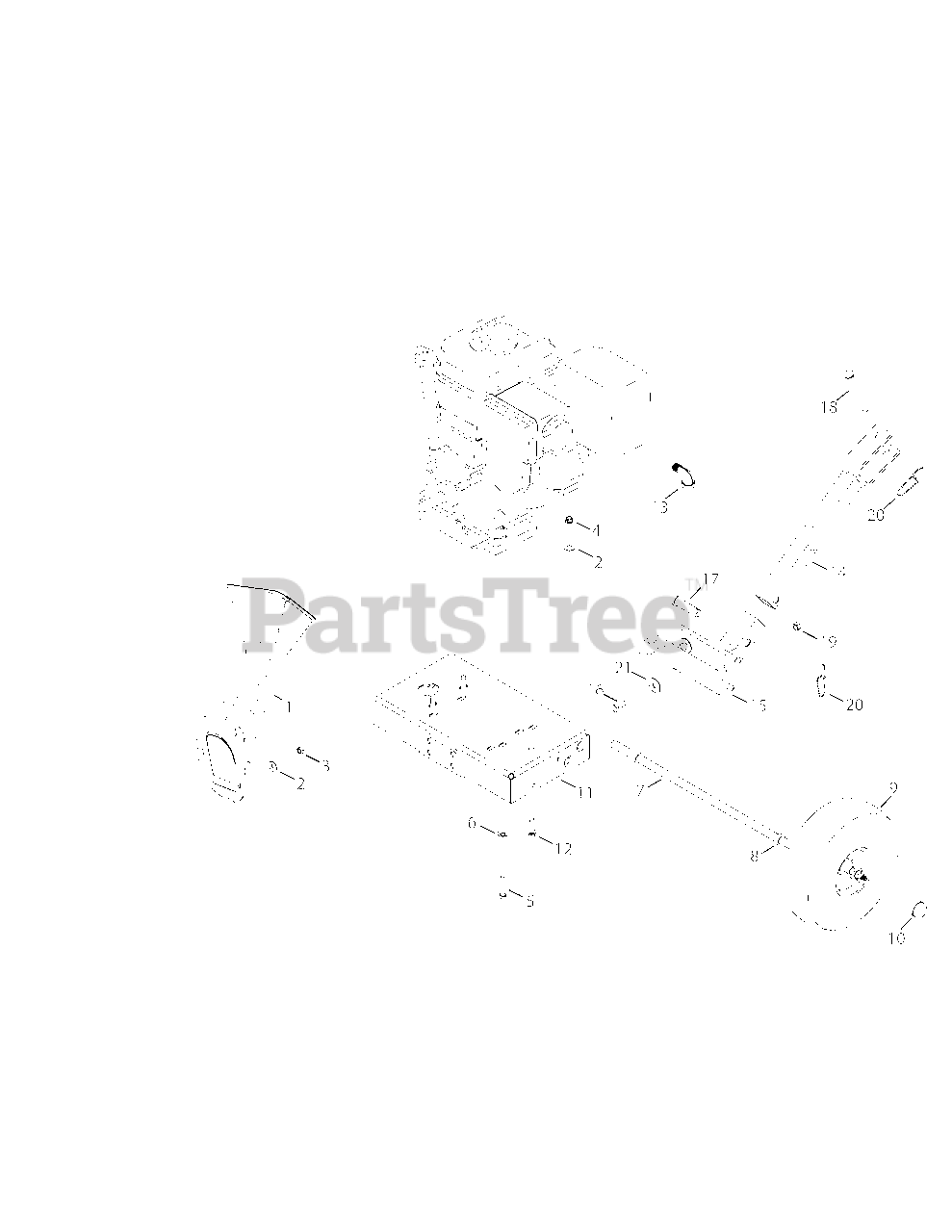

Chute & Wheels Parts Diagram

  • Title

1

MTD 681-04118-0638

Chipper Shredder Chute

$137.99

$

Usually ships in 3-6 days

0

2

MTD 736-0242

Bell Washer.340 ID x.872 OD

$3.99

$

In Stock, Qty 20+

0

3

MTD 912-3010

Hex Nut 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

4

MTD 712-3004A

Hex Lock Nut 5/16-18

$3.49

$

In Stock, Qty 20+

0

5

MTD 710-0805

Hex Cap Screw 5/16-18 x 1.50
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

6

MTD 936-0170

Bell Washer 5/16 x 1.0
(Superseded to 736-0170)

$

$

Not available

7

MTD 738-0814

Axle Assembly

$41.99

$

In Stock, only 1 left!

0

8

MTD 950-0786

Spacer

$6.99

$

Usually ships in 3-6 days

0

9

MTD 734-1600

Wheel Comp., 10.0 x 2.5 Plastic

$87.99

$

Usually ships in 3-6 days

0

10

MTD 726-0214

Push Cap

$9.99

$

In Stock, Qty 20+

0

11

MTD 681-0184C-0638

Frame

$109.99

$

Usually ships in 3-6 days

0

12

MTD 710-0502A

Screw, 3/8-16 x 1.250

$6.49

$

In Stock, Qty 7

0

13

MTD 937-0195

Elbow Fitting

$15.99

$

Usually ships in 3-6 days

0

14

MTD 981-0133

Tongue Hitch Mount
(Superseded to 981-0133B)

Note: (If Equipped)

Variations

MTD 981-0133-4021

BAR-TOW TONGUE - CUB YELLOW 2 (4021)

$74.99

$

Usually ships in 3-6 days

0

MTD 981-0133-0637

TONGUE TOW BAR BLACK - POWDER BLACK (0637)

$74.99

$

In Stock, only 1 left!

0

$67.99

$

Usually ships in 3-6 days

0

15

MTD 681-0134A-0637

Base Hitch Mount
(Superseded to 681-0134B-0637)

Note: (If Equipped)

$77.99

$

In Stock, only 1 left!

0

16

MTD 710-3001

Hex Cap Screw, 3/8-16 x.88

Note: (If Equipped)

$6.99

$

In Stock, Qty 11

0

17

MTD 711-0299

Clevis Pin,.625 x 2.4

Note: (If Equipped)

$34.99

$

Usually ships in 3-6 days

0

18

MTD 911-0835

Clevis Pin,.50 x 4.62

Note: (If Equipped)

$11.99

$

In Stock, Qty 6

0

19

MTD 712-04065

Flange Lock Nut, 3/8-16

Note: (If Equipped)

$3.99

$

In Stock, Qty 20+

0

20

MTD 732-0194

Spring Pin

Note: (If Equipped)

$4.49

$

In Stock, only 1 left!

0

21

MTD 936-0133

Flat Washer,.411 x 1.25 x 1.0
(Superseded to 736-0133)

Note: (If Equipped)

$

$

Not available

MTD 964-04022

Chipper Bag Ass’y
(Superseded to 664P04022A)

Note: (Not Shown)

$71.99

$

In Stock, only 4 left!

0

MTD 723-0400

Safety Glasses

Note: (Not Shown)

$24.99

$

Usually ships in 3-6 days

0
