24A-652D131 - Huskee Blower (2001) (Tractor Supply) Frame & Handle Assembly Parts Diagram

Blower

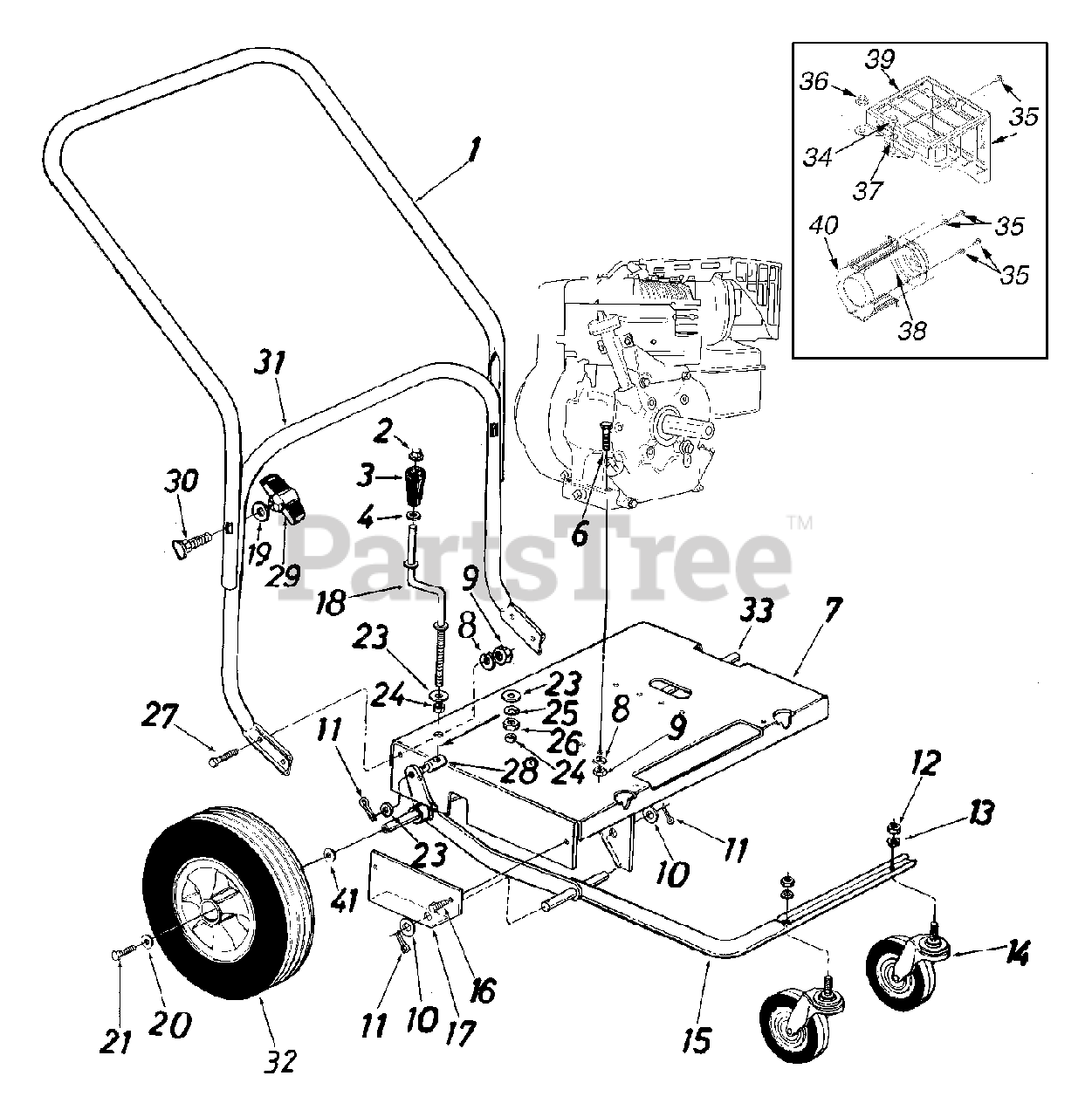

Frame & Handle Assembly Parts Diagram

  • Title

1

MTD 749-0784

Upper Handle
(Superseded to 749-0784-0637)

Variations

MTD 749-0784-0637

HANDLE-UPPER-PAINT - POWDER BLACK (0637)

$120.99

$

Usually ships in 3-6 days

0

$120.99

$

Usually ships in 3-6 days

0

2

MTD 726-0100

Push Nut 3/8

$3.99

$

In Stock, Qty 8

0

3

MTD 720-0171

Crank Knob
(Superseded to 920-0171)

$14.99

$

In Stock, only 1 left!

0

4

MTD 736-0117

Flat Washer .385 ID x .62 OD
(Superseded to 936-0117)

$6.99

$

In Stock, only 1 left!

0

6

MTD 710-0805

Hex Bolt 5/16-18 x 1.50
(Superseded to 710-0805A)

$3.99

$

In Stock, only 2 left!

0

7

MTD 16453

Engine Mounting Frame Assembly

Variations

MTD 16453-0637

No Longer Available FRAME ASM-ENG MTG - POWDER BLACK (0637)

$

$

Not available

MTD 16453-0638

No Longer Available FRAME ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16453-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 16453-0709

FRAME ASM-ENG MTG - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

8

MTD 736-0119

Lock Washer 5/16 ID
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

9

MTD 712-0267

Hex Nut 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

10

MTD 736-0187

Flat Washer .63 ID x 1.25

$4.49

$

In Stock, Qty 20+

0

11

MTD 714-0115

Cotter Pin

$3.99

$

In Stock, only 1 left!

0

12

MTD 712-0206

Hex Nut 1/2-13

$3.99

$

In Stock, Qty 20+

0

13

MTD 736-0921

Lock Washer 1/2

$4.49

$

In Stock, Qty 20+

0

14

MTD 734-1036

Swivel Caster Wheel 5" Dia x 1.25

$70.99

$

Usually ships in 3-6 days

0

15

MTD 16273

Caster Arm Assembly

Variations

MTD 16273-0483

Double Caster Arm Assembly, Black - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16273-0498

Double Caster Arm Assembly, Black - OLD CUB YELLOW (0498)

$

$

Not available

MTD 16273-0637

Double Caster Arm Assembly, Black - POWDER BLACK (0637)

$

$

Not available

MTD 16273-0638

Double Caster Arm Assembly, Black - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16273-0648

Double Caster Arm Assembly, Black - TECH GRAY (0648)

$

$

Not available

MTD 16273-0662

Double Caster Arm Assembly, Black - OYSTER GRAY (0662)

$

$

Not available

MTD 16273-0674

Double Caster Arm Assembly, Black - YARDMAN YELLOW (0674)

$

$

Not available

MTD 16273-0691

Double Caster Arm Assembly, Black - BLACK JACK (0691)

$

$

Not available

MTD 16273-0709

Double Caster Arm Assembly, Black - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

16

MTD 710-0726

Hex Washer Screw 5/16 x .75

$3.99

$

In Stock, Qty 20+

0

17

MTD 14529

Caster Arm Bracket

Variations

MTD 14529-0637

BRACKET-CASTER ARM - POWDER BLACK (0637)

$

$

Not available

MTD 14529-0638

BRACKET-CASTER ARM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 14529-0691

BRACKET-CASTER ARM - BLACK JACK (0691)

$

$

Not available

MTD 14529-0709

No Longer Available BRACKET-CA - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

18

MTD 747-0542

Height Adjustment Crank

$20.99

$

Usually ships in 3-6 days

0

19

MTD 736-0451

Saddle Washer .32 ID x .93 OD

$3.99

$

In Stock, only 2 left!

0

20

MTD 736-0159

Flat Washer .34 ID x .87 OD

$3.99

$

In Stock, Qty 20+

0

21

MTD 710-0170

Hex Lock Bolt 5/16-24 x .64

$6.49

$

In Stock, only 1 left!

0

23

MTD 736-0300

Flat Washer .38 ID x .57 OD

$3.99

$

In Stock, Qty 20+

0

24

MTD 750-0528

Spacer .382 ID x .50 OD x .180 Lg
(Superseded to 950-0528)

$

$

Not available

25

MTD 736-0169

Lock Washer 3/8 ID

$3.49

$

In Stock, Qty 20+

0

26

MTD 712-0354

Hex Nut 3/8-8
(Superseded to 912-0354)

$

$

Not available

27

MTD 710-3008

Hex Bolt 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

28

MTD 711-0797

Ferrule
(Superseded to 911-0797)

$

$

Not available

29

MTD 720-0241

Hand Knob
(Superseded to 720-04072A)

$6.49

$

In Stock, Qty 20+

0

30

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0

$6.99

$

In Stock, Qty 20+

0

31

MTD 749-0785

Lower Handle

Variations

MTD 749-0785-0637

HANDLE-LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

32

MTD 734-1035

Wheel Assembly 12 x 3

$118.99

$

Usually ships in 3-6 days

0

33

MTD 738-0185

Rear Axle

$

$

Not available

34

MTD 710-0599

Self Tap Screw 1/4-20 x .5

$3.99

$

In Stock, Qty 20+

0

35

MTD 710-1502

Screw 8-18 x .375

$

$

Not available

36

MTD 712-3004A

Hex Lock Nut 5/16-18

$3.49

$

In Stock, Qty 20+

0

37

MTD 736-0329

Lock Washer
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

38

MTD 751-0447

Deflector

$

$

Not available

39

MTD 751-0632

Muffler Guard

$

$

Not available

40

MTD 751-0646

Muffler Guard Bracket

$

$

Not available

41

MTD 736-0162

Flat Washer

$3.99

$

In Stock, Qty 20+

0
