24A-7400066 - Troy-Bilt Pack Horse Powered Wheelbarrow (2009) Bed,Frame & Rear Wheels Parts Diagram

Pack Horse Powered Wheelbarrow

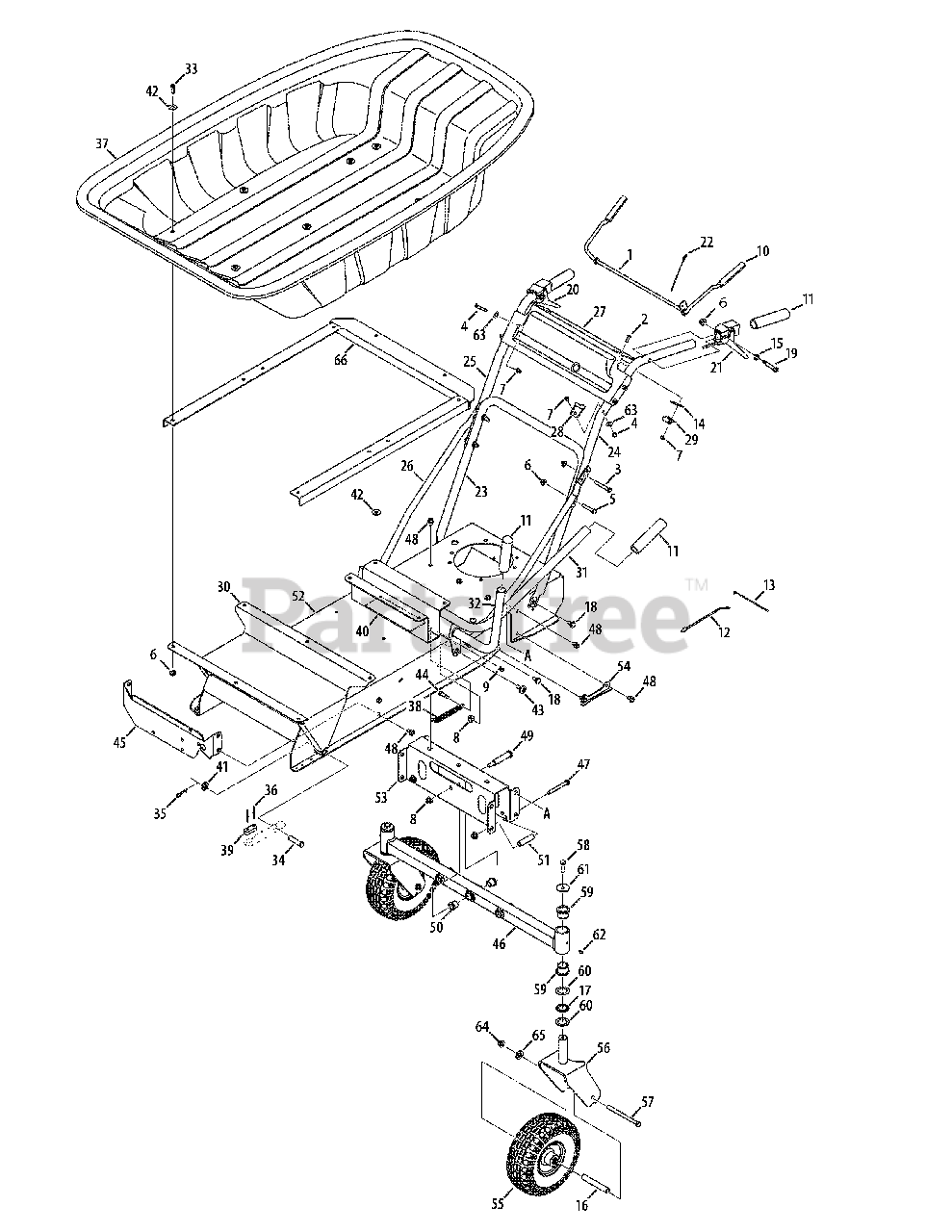

Bed,Frame & Rear Wheels Parts Diagram

  • Title

1

Troy-Bilt 681-04154-0637

Brake Bail Assembly

$

$

Not available

2

Troy-Bilt 710-0924

Screw, 1/4-20 x 0.750

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0395

Hex Head Screw, 5/16-18 x 2.25

$4.49

$

In Stock, Qty 11

0

4

Troy-Bilt 710-0606

Hex Head Screw, 1/4-20 x 1.50

$4.99

$

In Stock, Qty 15

0

5

Troy-Bilt 710-3180

Hex Head Screw, 5/16-18 x 1.75

$4.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-04064

Flangelock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 912-0442

Cap Lock Nut, 1/4-20
(Superseded to 712-0442)

$

$

Not available

10

Troy-Bilt 720-0270A

Reverse Handle Grip

$7.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 720-0274

Grip, 1.0 ID x 5.0 LG

$10.99

$

In Stock, Qty 8

0

12

Troy-Bilt 926-0154

Cable Tie, 7.5 LG, Push Mount

$5.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 726-0317

Cable Tie, 8.5 LG

$4.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 735-04182

Damper Pad

$

$

Not available

15

Troy-Bilt 936-0169

Washer, Lock, 3/8
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 750-05255

Spacer, .375 x .625 x 4.05

$

$

Not available

17

Troy-Bilt 741-3083

Thrust Bearing Needle, 1.00 x 1.562

$15.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 938-0140

Shield Screw, .435 x .178 - 5/16 x .56
(Superseded to 738-0140)

$

$

Not available

19

Troy-Bilt 738-04402

Socket Head Screw, 5/16-18 x .375

$

$

Not available

20

Troy-Bilt 946-04592

Forward Cable

$104.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 946-04595

Reverse Cable

$108.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 946-04598

Brake Release Cable

$

$

Not available

23

Troy-Bilt 749-04330-0637

Lower Handle

$79.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 749-04331-0637

Upper Handle, LH

$49.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 749-04332-0637

Upper Handle, RH

$49.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 749-04333-0637

Handle Adjuster Brace Tube

$43.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 781-04360-0638

Handle Panel

$

$

Not available

28

Troy-Bilt 781-04373-0637

Cable Mounting Bracket, LH

$

$

Not available

29

Troy-Bilt 786-0098-0637

Retainer Bracket, RH

$27.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 681-04133-0638

Pivot Bed Bracket Assembly

$

$

Not available

31

Troy-Bilt 681-04155-0638

Bed Handle Assembly

$

$

Not available

32

Troy-Bilt 681-04158-0638

Lock Bracket Assembly

$

$

Not available

33

MTD 710-1669

Screw, 5/16-18 x 1.00

$4.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 711-05217

Clevis Pin, .500 x 2.00

$12.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 914-0145

Click Pin, .092 x 1.64 LG
(Superseded to 714-0145)

$4.49

$

In Stock, Qty 20+

0

36

Troy-Bilt 728-04041

Rivet, .125 DIA x .625

$

$

Not available

37

Troy-Bilt 931-06908

Bed

$

$

Not available

38

Troy-Bilt 732-04579

Extension Spring, .60 OD x 6.44 LG

$8.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 735-04172

Bumper Pad

$

$

Not available

40

Troy-Bilt 735-04173

Rubber Pad

$

$

Not available

41

Troy-Bilt 936-0326

Washer, Flat, .510 x 1.000 x .125
(Superseded to 736-0326)

$4.49

$

In Stock, Qty 20+

0

42

Troy-Bilt 736-3078

Washer, Flat, .344 x 1.00 x .063

$3.99

$

In Stock, Qty 18

0

43

Troy-Bilt 738-04012A

Screw, Shoulder, 3/8-16 x .625 x .145
(Superseded to 738-04012C)

$5.49

$

In Stock, Qty 16

0

44

Troy-Bilt 938-3141

Screw, Shoulder, 1/4-20 x .31 x .75
(Superseded to 738-3141)

$

$

Not available

45

Troy-Bilt 781-04335-0638

Transmission Support Bracket

$

$

Not available

46

Troy-Bilt 681-04146-0638

Front Axle Assembly

$

$

Not available

47

Troy-Bilt 710-0521

Hex Head Screw, 3/8-16 x 3.00

$4.99

$

In Stock, Qty 15

0

48

Troy-Bilt 710-0604A

Screw, 5/16-18 x 0.625

$3.99

$

In Stock, Qty 20+

0

49

Troy-Bilt 738-04216A

Shoulder Bolt, 3/8-16 x .625 x 2.515

$7.99

$

In Stock, Qty 20+

0

50

Troy-Bilt 941-0353

Bronze Flange Bearing, .630 ID
(Superseded to 741-0353)

$9.99

$

In Stock, Qty 20+

0

51

Troy-Bilt 750-05156

Spacer Tube, .385 x .625 x 2.250

$

$

Not available

52

Troy-Bilt 781-04329-0638

Frame

$

$

Not available

53

Troy-Bilt 781-04348-0638

Pivot Mount Bracket

$

$

Not available

54

Troy-Bilt 781-04379-0638

Frame Brace Bracket

$

$

Not available

55

Troy-Bilt 634-04584

Wheel Assembly, 10.0 x 3.5

$

$

Not available

56

Troy-Bilt 681-04165-0638

10" Wheel Caster Assembly

$

$

Not available

57

Troy-Bilt 710-0615A

Hex Head Screw, 3/8-16 x 5.00

$6.49

$

Usually ships in 3-6 days

0

58

Troy-Bilt 710-0879

Hex Head Screw, 3/8-24 x 1.25

$3.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt 731-05500

Flange, Bearing, 1.00 ID x 1.246 OD

$9.99

$

In Stock, Qty 20+

0

60

Troy-Bilt 936-0163

Washer, Flat, 1.03 x 1.62 x .03
(Superseded to 736-0163)

$

$

Not available

61

Troy-Bilt 736-0234

Washer, Flat, .385 x 1.5 x .075

$5.99

$

Usually ships in 3-6 days

0

62

Troy-Bilt 937-3000

Drive Lube Fitting,3/16

$4.49

$

In Stock, Qty 20+

0

63

Troy-Bilt 736-0173

Washer, Flat, .28 x .74 x .063

$3.99

$

In Stock, Qty 10

0

64

Troy-Bilt 712-0266A

Nut, Jamlock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

65

Troy-Bilt 936-0185

Washer, Flat, .375 x .738 x .063
(Superseded to 736-0185)

$3.49

$

In Stock, Qty 17

0

66

Troy-Bilt 681-04174-0638

Bed Frame Assembly

$

$

Not available
