24AA5DMK029 - Yard Machines Log Splitter (2007) (Home Depot) General Assembly Parts Diagram

Log Splitter

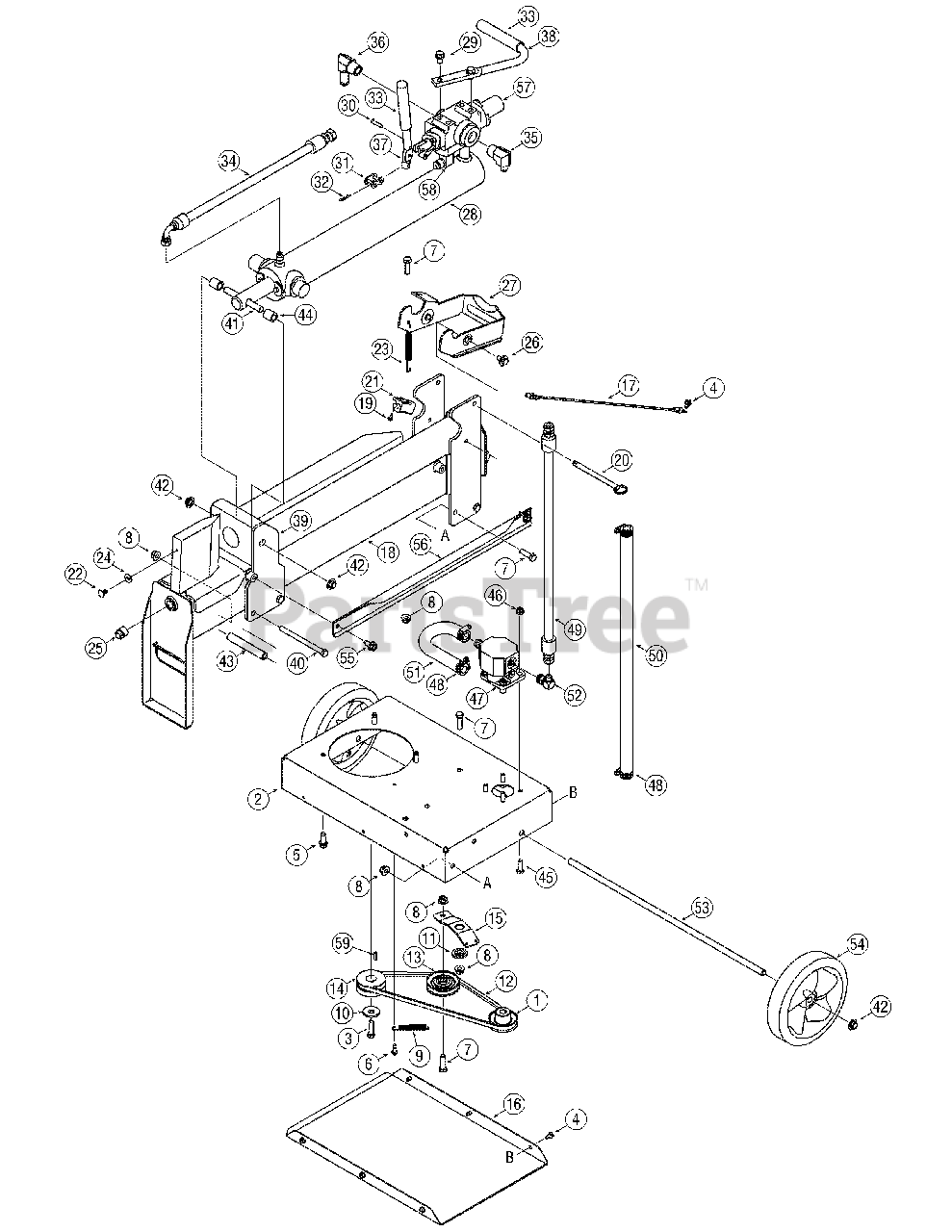

General Assembly Parts Diagram

  • Title

1

MTD 656-04037

Pulley, .50 ID x 2.38 OD

$27.99

$

Usually ships in 3-6 days

0

2

MTD 681-04065

Frame Assembly
(Superseded to 681-04065A)

Variations

MTD 681-04065-0637

FRAME ASSY-LOGSPLITTER - POWDER BLACK (0637)

$110.99

$

Usually ships in 3-6 days

0

MTD 681-04065-0638

FRAME ASSY-LOGSPLITTER - MTD/TROY-BILT RED (0638)

$110.99

$

Usually ships in 3-6 days

0

$110.99

$

Usually ships in 3-6 days

0

3

MTD 710-0191

Screw, 3/8-24 x 1.25

$4.99

$

In Stock, Qty 7

0

4

MTD 710-0653

Tt Screw, 1/4-20 x .375

$4.99

$

In Stock, only 2 left!

0

5

MTD 710-0654A

Tt Screw, 3/8-16 x 1.00

$4.99

$

In Stock, Qty 20+

0

6

MTD 710-1650

Screw, Shldr., .30 x .46

$4.99

$

In Stock, Qty 20+

0

7

MTD 710-3005

Screw, 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

8

MTD 712-04065

Nut, Flange Lock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

9

MTD 732-04217

Spring, Extension, .375 x 2.95

$11.99

$

Usually ships in 3-6 days

0

10

MTD 736-0452

Washer, Bell, .396 x 1.140 x .095

$4.99

$

In Stock, only 4 left!

0

11

MTD 748-04125

Spacer, Shldr., .38 x .75 x .13

$4.49

$

Usually ships in 3-6 days

0

12

MTD 754-04128

Belt, V-Type, 3L, 33.92"

$23.99

$

Usually ships in 3-6 days

0

13

MTD 756-04133

Pulley, V-Idler, 2 x 2.75 x .625-3L

$35.99

$

Usually ships in 3-6 days

0

14

MTD 756-04304

Pulley, Idler

$48.99

$

Usually ships in 3-6 days

0

15

MTD 781-04132

Bracket, Idler, Belt
(Superseded to 781-04132-0637)

Variations

MTD 781-04132-0637

BRACKET-IDLER BELT - POWDER BLACK (0637)

$7.99

$

Usually ships in 3-6 days

0

$7.99

$

Usually ships in 3-6 days

0

16

MTD 781-04161

Cover, Belt
(Superseded to 781-04161-0637)

Variations

MTD 781-04161-0637

COVER-BELT LOGSPLI - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

17

MTD 629-04161

Harness, Interlock

$26.99

$

Usually ships in 3-6 days

0

18

MTD 681-04064

Tank Assembly
(Superseded to 681-04064-0637)

Variations

MTD 681-04064-0637

TANK ASM-LOGSPLITTER - POWDER BLACK (0637)

$713.99

$

Usually ships in 3-6 days

0

$713.99

$

Usually ships in 3-6 days

0

19

MTD 738-04237

Shoulder Screw, #10-16 x .500
(Superseded to 738-04237A)

$6.49

$

In Stock, only 2 left!

0

20

MTD 711-04772

Pin, Locking

$11.99

$

Usually ships in 3-6 days

0

21

MTD 725-04363

Switch, Interlock

$16.99

$

In Stock, Qty 20+

0

22

MTD 726-3046

Clip

$4.49

$

In Stock, Qty 13

0

23

MTD 732-04085

Spring, Extension, .480 OD x 5.0

$14.99

$

In Stock, only 1 left!

0

24

MTD 736-04178A

Washer, Slotted, Felt

$10.99

$

Usually ships in 3-6 days

0

25

MTD 737-04148

Plug, Drain

$6.99

$

Usually ships in 3-6 days

0

26

MTD 738-0930

Screw, Shldr., .560 x .165

$7.49

$

Usually ships in 3-6 days

0

27

MTD 781-04168

Bracket, Lock, Cylinder
(Superseded to 781-04168-0637)

Variations

MTD 781-04168-0637

Lock Cylinder Bracket - POWDER BLACK (0637)

$131.99

$

Usually ships in 3-6 days

0

$131.99

$

Usually ships in 3-6 days

0

28

MTD 718-04241

Cylinder
(Superseded to 918-04241)

$724.99

$

Usually ships in 3-6 days

0

28

MTD 753-05611

Kit, Seal 2.5" Cylinder
(Superseded to 953-05611)

$

$

Not available

29

MTD 710-0870

Screw, 3/8-16 x .625

$6.99

$

In Stock, only 1 left!

0

30

MTD 711-04585

Pin, Clevis

$7.49

$

In Stock, Qty 11

0

31

MTD 713-04036

Link, Handle, Valve
(Superseded to 913-04036)

$22.99

$

In Stock, only 2 left!

0

32

MTD 714-0104

Pin, Cotter

$4.49

$

In Stock, Qty 16

0

33

MTD 720-04088

Grip

$10.99

$

Usually ships in 3-6 days

0

34

MTD 727-04182

Hose, Valve, Cylinder

$70.99

$

Usually ships in 3-6 days

0

35

MTD 737-04155

Adapter, Hydraulic

$33.99

$

Usually ships in 3-6 days

0

36

MTD 737-04154

Adapter, Hydraulic

$19.99

$

Usually ships in 3-6 days

0

37

MTD 747-04539

Control, Valve, Hydraulic
(Superseded to 747-04539A)

$48.99

$

Usually ships in 3-6 days

0

38

MTD 747-04707

Handle, Rod
(Superseded to 747-04707-0637)

Variations

MTD 747-04707-0637

HANDLE-ROD 5/8 DIA - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

39

MTD 681-04087

Brkt., Assembly, Push
(Superseded to 681-04087B-0637)

Variations

MTD 681-04087-0637

Push Bracket Assembly - POWDER BLACK (0637)

$122.99

$

Usually ships in 3-6 days

0

$122.99

$

Usually ships in 3-6 days

0

40

MTD 710-0615A

Screw, 3/8-16 x .500

$7.49

$

Usually ships in 3-6 days

0

41

MTD 711-04762

Rod, Pivot, .497 x 4.160

$

$

Not available

42

MTD 726-0299

Cap, Push

$8.49

$

In Stock, Qty 20+

0

43

MTD 750-04668

Spacer, .385 x .625 x 4.07

$29.99

$

Usually ships in 3-6 days

0

44

MTD 750-04886

Spacer, .525 x .775 x .852

$4.49

$

In Stock, only 1 left!

0

45

MTD 710-0376

Screw, 5/16-18

$4.49

$

In Stock, Qty 20+

0

46

MTD 712-04063

Nut, Flange Lock, 5/16-18

$4.49

$

In Stock, Qty 20+

0

47

MTD 718-04243

Pump, Gear
(Superseded to 918-04243)

$617.99

$

Usually ships in 3-6 days

0

48

MTD 726-04079

Clamp, Hose

$4.99

$

Usually ships in 3-6 days

0

49

MTD 727-04154

Hose

$64.99

$

Usually ships in 3-6 days

0

50

MTD 727-04156

Hose, Return

$27.99

$

Usually ships in 3-6 days

0

51

MTD 727-04157

Hose, Inlet

$24.99

$

Usually ships in 3-6 days

0

52

MTD 737-04187

Fitting, Elbow

$22.99

$

Usually ships in 3-6 days

0

53

MTD 711-04575

Axle

$18.99

$

Usually ships in 3-6 days

0

54

MTD 734-1987

Wheel

$24.99

$

Usually ships in 3-6 days

0

55

MTD 710-04484

Tt Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

56

MTD 781-04124

Bracket, Support
(Superseded to 781-04124-0637)

Variations

MTD 781-04124-0637

BRACKET-SUPPORT LO - POWDER BLACK (0637)

$33.99

$

Usually ships in 3-6 days

0

$33.99

$

Usually ships in 3-6 days

0

57

MTD 718-0481A

Valve
(Superseded to 918-0481A)

$406.99

$

In Stock, only 2 left!

0

58

MTD 737-0192

Adapter

$44.99

$

Usually ships in 3-6 days

0

59

MTD 714-0122

Key

$3.99

$

In Stock, Qty 19

0

Tow Hitch Kit (Optional)

$

$

Not available
