24AD584D700 - Yard Machines Log Splitter (2006) General Assembly Parts Diagram

Log Splitter

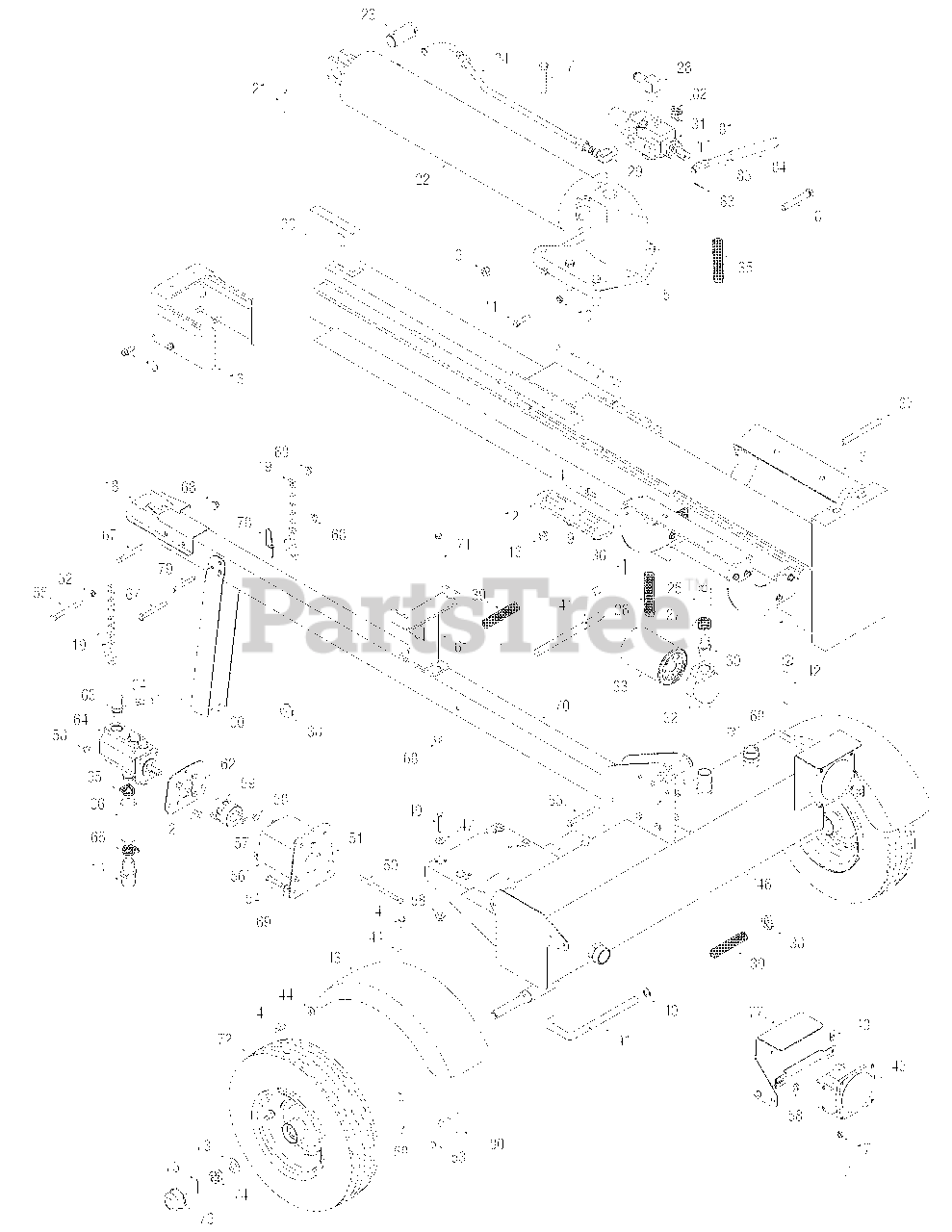

General Assembly Parts Diagram

  • Title

1

MTD 781-04180

Log Tray Bracket
(Superseded to 781-04180-0637)

Variations

MTD 781-04180-0637

Log Tray Bracket, Black - POWDER BLACK (0637)

$32.99

$

In Stock, Qty 7

0

$32.99

$

In Stock, Qty 7

0

2

MTD 710-0376

Hex Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 17

0

3

MTD 781-04179

Log Tray Bracket
(Superseded to 781-04179-0637)

Variations

MTD 781-04179-0637

Log Tray Cradle, Powder Black - POWDER BLACK (0637)

$46.99

$

In Stock, Qty 8

0

$46.99

$

In Stock, Qty 8

0

4

MTD 710-0650

TT Screw, 5/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

5

MTD 719-0550A

Wedge Assembly

$245.99

$

In Stock, only 1 left!

0

6

MTD 712-3022

Lock Nut 1/2-13

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-1018

Hex Cap Screw 1/2-20 x 2.75

$10.99

$

In Stock, Qty 20+

0

8

MTD 710-1806

Hex Cap Screw 1/2-13 x 3.25

$9.49

$

In Stock, Qty 12

0

9

MTD 781-0351

Adjustable Gib

Variations

MTD 781-0351-0483

Log Splitter Adjustable Gib, 2" - CHARCOAL GRAY (0483)

$17.99

$

In Stock, only 1 left!

0

MTD 781-0351-0637

Log Splitter Adjustable Gib, 2" - POWDER BLACK (0637)

$17.99

$

In Stock, only 1 left!

0

$17.99

$

In Stock, only 1 left!

0

10

MTD 712-0711

Hex Jam Nut 3/8-24

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-0459A

Hex Cap Screw 3/8-24 x 1.5

$6.99

$

In Stock, Qty 10

0

12

MTD 781-0790

Back Plate
(Superseded to 781-0790A-0637)

Variations

MTD 781-0790-0637

Logsplitter Wedge Plate - POWDER BLACK (0637)

$37.99

$

In Stock, only 2 left!

0

$37.99

$

In Stock, only 2 left!

0

13

MTD 712-3058

Hex Lock Nut, 1/2-20
(Superseded to 912-3058)

$5.49

$

In Stock, Qty 20+

0

14

MTD 737-04093

Inlet Filter

$90.99

$

Usually ships in 3-6 days

0

15

MTD 710-0654A

Hex Washer Screw 3/8-16 x 1.0

$3.99

$

Usually ships in 3-6 days

0

16

MTD 781-0525

Dislodger

Variations

MTD 781-0525-0483

Dislodger - CHARCOAL GRAY (0483)

$131.99

$

Usually ships in 3-6 days

0

MTD 781-0525-0638

DISLODGER - MTD/TROY-BILT RED (0638)

$131.99

$

Usually ships in 3-6 days

0

MTD 781-0525-0606

DISLODGER - MAJESTIC ORANGE (0606)

$114.99

$

Usually ships in 3-6 days

0

MTD 781-0525-0637

DISLODGER - POWDER BLACK (0637)

$131.99

$

Usually ships in 3-6 days

0

MTD 781-0525-0662

DISLODGER - OYSTER GRAY (0662)

$131.99

$

Usually ships in 3-6 days

0

MTD 781-0525-4021

DISLODGER - CUB YELLOW 2 (4021)

$140.99

$

Usually ships in 3-6 days

0

$114.99

$

Usually ships in 3-6 days

0

17

MTD 712-3008

Jam Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

18

MTD 681-04030

Hitch Coupler, 2-inch

$67.99

$

Usually ships in 3-6 days

0

19

MTD 713-0433A

Chain

$41.99

$

Usually ships in 3-6 days

0

20

MTD 681-04080

Beam Assembly
(Superseded to 981-04080)

$

$

Not available

21

MTD 714-0211

Cotter Pin

$3.99

$

In Stock, Qty 6

0

22

MTD 718-0313

Hydraulic Cylinder
(Superseded to 918-0313A)

Note: replace with 718-0313A

Variations

MTD 718-0313-0498

CYLINDER-LOGSPLITT - OLD CUB YELLOW (0498)

$

$

Not available

MTD 718-0313-0637

CYLINDER-LOGSPLITT - POWDER BLACK (0637)

$

$

Not available

MTD 718-0313-0638

CYLINDER-LOGSPLITT - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 718-0313-0662

CYLINDER-LOGSPLITT - OYSTER GRAY (0662)

$

$

Not available

MTD 718-0313-0674

CYLINDER-LOGSPLITT - YARDMAN YELLOW (0674)

$

$

Not available

$

$

22

MTD 753-0564

Kit Seal 5.0" for Fisher Hydraulics cylinder 718-0313

Note: Fisher cylinders use a snap ring retainer system to secure the piston assembly into the cylinder.

$241.99

$

Usually ships in 3-6 days

0

22

MTD 753-0691

Kit Seal 5.0" for Best Metals cylinder 718-0313

Note: BEST cylinders will have "BM" or "BEST" cast into the end cap.

$

$

Not available

22

MTD 718-0313A

Hydraulic Cylinder
(Superseded to 918-0313A)

Note: replaces 718-0313

$

$

Not available

22

MTD 953-05609

Kit Seal 5.0" for XINGHUI cylinder 718-0313A

Note: See Service Kit 753-05609

$80.99

$

Usually ships in 3-6 days

0

22

MTD 953-05610

Kit Seal 5.0" for ENERGY cylinder 718-0313A

Note: See Service Kit 753-05610

$234.99

$

Usually ships in 3-6 days

0

23

MTD 711-1135

Clevis Pin

$57.99

$

Usually ships in 3-6 days

0

24

MTD 727-04166

Hydraulic Tube

$106.99

$

Usually ships in 3-6 days

0

25

MTD 727-0443

Return Hose 3/4" ID x 44"

$110.99

$

In Stock, only 1 left!

0

26

MTD 781-0526A

Hose Guard

$49.99

$

Usually ships in 3-6 days

0

27

MTD 726-0132

Hose Clamp 5/8"

$14.99

$

Usually ships in 3-6 days

0

28

MTD 737-0153

Return Elbow

$53.99

$

Usually ships in 3-6 days

0

29

MTD 737-0192

90 Degree Solid Male Adapter

$38.99

$

Usually ships in 3-6 days

0

30

MTD 737-0235

3/4" Hose Adapter

$23.99

$

In Stock, only 2 left!

0

31

MTD 718-0481A

Control Valve
(Superseded to 918-0481A)

$365.99

$

In Stock, only 4 left!

0

32

MTD 737-0316

Filter Housing
(Superseded to 753-06643)

$90.99

$

Usually ships in 3-6 days

0

33

MTD 723-0405

Oil Filter
(Superseded to 723P0405)

$39.99

$

In Stock, only 4 left!

0

34

MTD 727-0502

High Pressure Hydraulic Hose

$194.99

$

Usually ships in 3-6 days

0

35

MTD 781-0538A

Hose Guard

$33.99

$

Usually ships in 3-6 days

0

36

MTD 714-0470

Cotter Pin 1/8"

$3.99

$

In Stock, Qty 20+

0

37

MTD 738-0805

Hinge Pin 1/2 x 4.8" Lg.

$

$

Not available

38

MTD 726-0214

Push Cap

$9.99

$

In Stock, Qty 20+

0

39

MTD 732-0583

Compression Spring 4"

$11.99

$

Usually ships in 3-6 days

0

40

MTD 736-0116

Flat Washer .635 ID x .93 OD
(Superseded to 936-0116)

$6.49

$

In Stock, only 1 left!

0

41

MTD 781-0690

Locking Rod

$33.99

$

In Stock, only 1 left!

0

42

MTD 737-0348A

Vented Dipstick

$21.99

$

In Stock, only 4 left!

0

43

MTD 731-2499A

Fender

$78.99

$

Usually ships in 3-6 days

0

44

MTD 736-0371

Flat Washer, .343 x .880 x .062

$4.49

$

In Stock, Qty 7

0

45

MTD 625-0062

Tail Light Assembly

$181.99

$

Usually ships in 3-6 days

0

45

MTD 725-2058

Tail Light - RH

$

$

Not available

45

MTD 725-2059

Tail Light - LH

$

$

Not available

45

MTD 725-2060

Wire Harness

$

$

Not available

46

MTD 681-04041A

Frame Assembly 7.0 Gal
(Superseded to 981-04041B-0637)

$

$

Not available

47

MTD 736-0242

Bell Washer, 340 x .872 x .060

$3.99

$

In Stock, Qty 20+

0

48

MTD 712-0292

Nut 1/4-20

$9.99

$

Usually ships in 3-6 days

0

49

MTD 710-3180

Hex Cap Screw 5/16-18 x 1.75

$4.99

$

In Stock, Qty 20+

0

50

MTD 710-0974

Hex Cap Screw 5/16-18 x 4.75

$11.99

$

Usually ships in 3-6 days

0

51

MTD 781-0098A

Front Support Bracket Coupling
(Superseded to 781-0098A-0637)

Variations

MTD 781-0098A-0637

Bracket, Black - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

52

MTD 736-0185

Flat Washer, .375 x .738 x .063

$3.49

$

In Stock, Qty 15

0

53

MTD 710-0602

Screw, TT, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

54

MTD 710-0157

Hex Cap Screw, 5/16-24 x .75

$3.99

$

In Stock, Qty 16

0

55

MTD 710-3085

Hex Cap Screw 3/8-16 x 3.50

$4.49

$

In Stock, Qty 20+

0

56

MTD 719-0281

Coupling Shield

$41.99

$

Usually ships in 3-6 days

0

57

MTD 714-0122

Key, 3/16 x .75

$3.49

$

In Stock, Qty 17

0

58

MTD 712-04063

Hex Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

59

MTD 718-04134

Flex Coupling
(Superseded to 718-04134P)

$116.99

$

Usually ships in 3-6 days

0

59

MTD 735-0205

SPIDER-COUPLING RUBBER

Note: Not shown

$

$

Not available

60

MTD 781-0162

Jack Stand

Variations

MTD 781-0162-0483

STAND-JACK - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0162-0637

STAND-JACK - POWDER BLACK (0637)

$

$

Not available

MTD 781-0162-0638

STAND-JACK - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0162-0648

STAND-JACK - TECH GRAY (0648)

$

$

Not available

MTD 781-0162-0674

STAND-JACK - YARDMAN YELLOW (0674)

$

$

Not available

MTD 781-0162-0716

STAND-JACK - CUB YELLOW-99 (0716)

$

$

Not available

$

$

61

MTD 681-0110

Support Beam Assembly
(Superseded to 681-0110-0637)

Variations

MTD 681-0110-0637

SUPPORT ASM. BEAM - POWDER BLACK (0637)

$

$

Not available

$

$

62

MTD 781-0097

Rear Coupling Support
(Superseded to 781-0097-0637)

Variations

MTD 781-0097-0637

Support Bracket, RR - POWDER BLACK (0637)

$64.99

$

In Stock, only 3 left!

0

$64.99

$

In Stock, only 3 left!

0

63

MTD 737-0265

Adapter, 3/4-16

$

$

Not available

64

MTD 718-04127

Pump
(Superseded to 918-04127)

$698.99

$

Usually ships in 3-6 days

0

65

MTD 726-0174

Hose Clamp

$8.99

$

Usually ships in 3-6 days

0

66

MTD 727-0451

Suction Hose

$100.99

$

Usually ships in 3-6 days

0

67

MTD 710-0521

Hex Cap Screw 3/8-16 x 3.0

$4.99

$

In Stock, Qty 15

0

68

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

69

MTD 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

70

MTD 781-0680A

Tube
(Superseded to 781-0680B)

Variations

MTD 781-0680A-0498

TONGUE TUBE - OLD CUB YELLOW (0498)

$220.99

$

Usually ships in 3-6 days

0

MTD 781-0680A-0637

TUBE-TONGUE - POWDER BLACK (0637)

$220.99

$

Usually ships in 3-6 days

0

MTD 781-0680A-0638

TUBE-TONGUE - MTD/TROY-BILT RED (0638)

$220.99

$

Usually ships in 3-6 days

0

MTD 781-0680A-0648

TUBE-TONGUE - TECH GRAY (0648)

$220.99

$

Usually ships in 3-6 days

0

MTD 781-0680A-0650

TUBE-TONGUE - RED METALLIC (0650)

$220.99

$

Usually ships in 3-6 days

0

MTD 781-0680A-0665

TUBE-TONGUE - YARDMAN GREEN (0665)

$220.99

$

Usually ships in 3-6 days

0

MTD 781-0680A-0483

TUBE-TONGUE - CHARCOAL GRAY (0483)

$220.99

$

Usually ships in 3-6 days

0

MTD 781-0680A-0662

TUBE-TONGUE - OYSTER GRAY (0662)

$220.99

$

Usually ships in 3-6 days

0

MTD 781-0680A-0674

TUBE-TONGUE - YARDMAN YELLOW (0674)

$220.99

$

Usually ships in 3-6 days

0

MTD 781-0680A-0689

TUBE-TONGUE - POLO GREEN (0689)

$220.99

$

Usually ships in 3-6 days

0

MTD 781-0680A-0716

TONGUE TUBE - CUB YELLOW-99 (0716)

$220.99

$

Usually ships in 3-6 days

0

$178.99

$

Usually ships in 3-6 days

0

71

MTD 710-0411

Hex Cap Screw 3/8-16 x 4.0

$7.99

$

In Stock, Qty 20+

0

72

MTD 634-0186

Wheel Assembly

$337.99

$

In Stock, only 1 left!

0

73

MTD 736-0351

Flat Washer .76" ID x 1.5" OD

$3.99

$

In Stock, Qty 20+

0

74

MTD 712-0359

Slotted Nut 3/4-16

$10.99

$

In Stock, only 4 left!

0

75

MTD 714-0162

Cotter Pin 5/32" x 1-1/4"

$4.99

$

In Stock, Qty 20+

0

76

MTD 734-0873

Hub Cap

$11.99

$

In Stock, only 2 left!

0

77

MTD 681-04049

Light Bracket Assembly LH

Variations

MTD 681-04049-0637

BRACKET-LH TAILLIGHT - POWDER BLACK (0637)

$

$

Not available

$

$

77

MTD 781-04116

Light Bracket RH

Variations

MTD 781-04116-0637

BRACKET-RH TAILLIGHT - POWDER BLACK (0637)

$

$

Not available

$

$

78

MTD 732-0194

Pin, Spring

$4.49

$

In Stock, only 1 left!

0

79

MTD 711-0813

Pin, Clevis
(Superseded to 911-0813)

$6.49

$

In Stock, only 1 left!

0

80

MTD 781-04174

Brkt., Mt., Fender
(Superseded to 781-04174-0637)

Variations

MTD 781-04174-0637

Fender Mounting Bracket - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

81

MTD 711-04585

Clevis Pin

$6.49

$

In Stock, only 3 left!

0

82

MTD 713-04036

Valve Handle Link
(Superseded to 913-04036)

$19.99

$

In Stock, only 2 left!

0

83

MTD 714-0111

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

84

MTD 720-04088

Grip

$9.99

$

In Stock, only 1 left!

0

85

MTD 747-04539

Hydraulic Valve Control
(Superseded to 747-04539A)

$42.99

$

In Stock, only 1 left!

0
