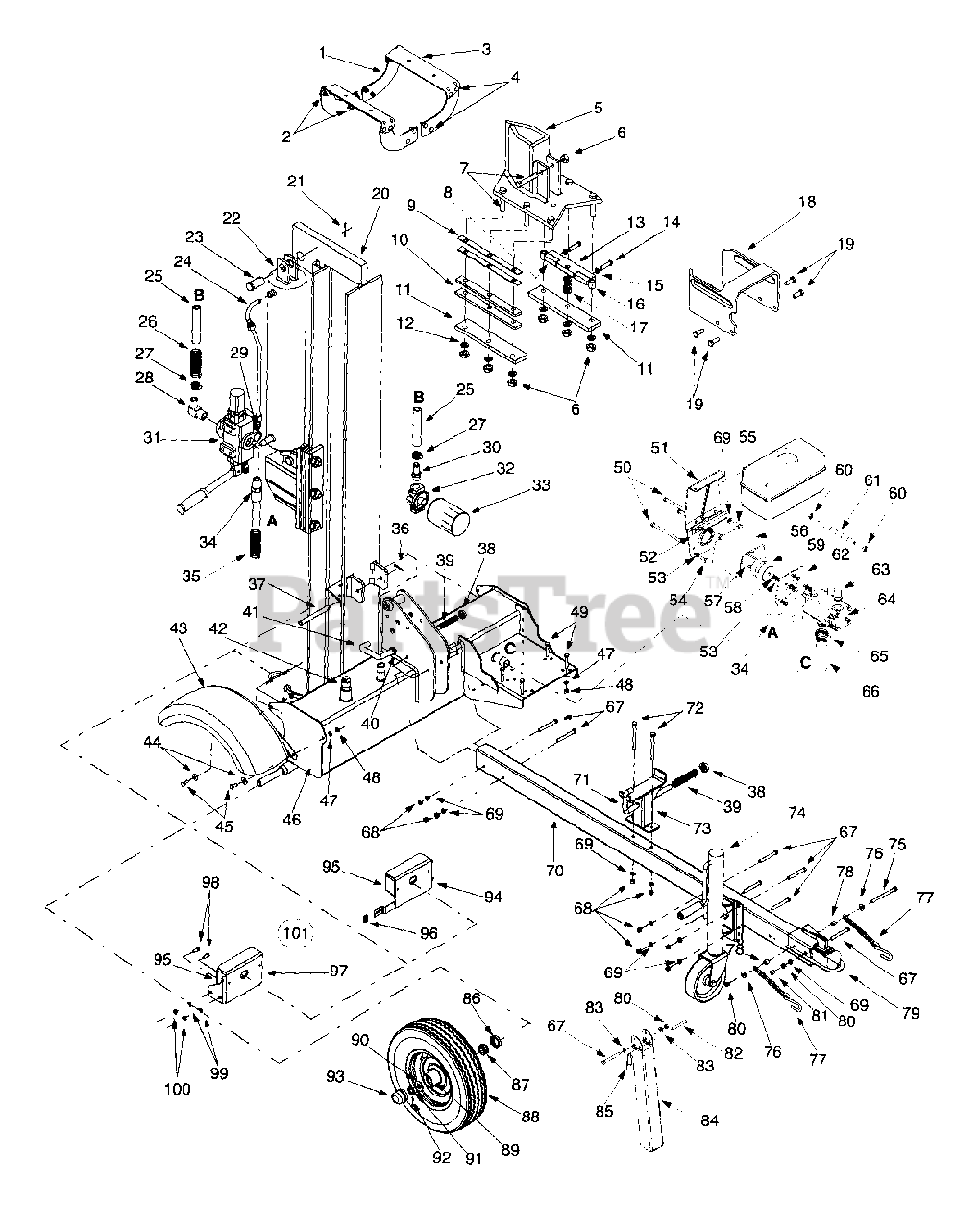

24BD586B206 - Ranch King Log Splitter (1999) (Quality Stores) > Parts Diagrams (3) > General Assembly

  • Title
781-0686

1

Log Tray Bracket

Part# 781-0686

OEM Warranty Repair Part for MTD

Variations

OLD CUB YELLOW (0498)

No Longer Available

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for MTD

Not available

POWDER BLACK (0637)

No Longer Available

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

712-0431

2

Flanged Lock Nut 3/8-16

Part# 712-0431 (Superseded to 912-0431)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.18

781-0682

3

Log Tray

Part# 781-0682

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

KIT-TRAY:LOGSPLITT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $34.79

YARDMAN GREEN (0665)

KIT-TRAY:LOGSPLITT

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $34.79

710-3097

4

Carriage Bolt 3/8-16 x 1.0

Part# 710-3097

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.31

781-0323B

5

Wedge Asm

Part# 781-0323B

OEM Warranty Repair Part for MTD

Variations

CHARCOAL GRAY (0483)

KIT-WEDGE ASM REPL

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $234.18

SILVER FLAKE (0629)

KIT-WEDGE ASM REPL

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $234.18

POWDER BLACK (0637)

KIT-WEDGE ASM REPL

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $234.18

MTD/TROY-BILT RED (0638)

KIT-WEDGE ASM REPL

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $234.18

TECH GRAY (0648)

KIT-WEDGE ASM REPL

Part# TECH GRAY (0648)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $234.18

OYSTER GRAY (0662)

KIT-WEDGE ASM REPL

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $234.18

CUB YELLOW-99 (0716)

WEDGE ASSEMBLY

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $234.18

712-0239

6

Lock Nut 1/2-20

Part# 712-0239 (Superseded to 912-0239)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.71

710-1018

7

Hex Cap Screw 1/2-20 x 2.75

Part# 710-1018

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.32

781-0351

8

Adjustable Gib

Part# 781-0351

OEM Warranty Repair Part for MTD

Variations

CHARCOAL GRAY (0483)

GIB-ADJ.2" LG.

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for MTD

Not available

POWDER BLACK (0637)

GIB-ADJ.2" LG.

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

781-0352A

9

Adjustable Gib Shim

Part# 781-0352A

OEM Warranty Repair Part for MTD

Variations

CHARCOAL GRAY (0483)

SHIM-ADJ GIB

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for MTD

Not available

OLD CUB YELLOW (0498)

ADJUSTABLE GUB SHIM

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for MTD

Not available

POWDER BLACK (0637)

SHIM-ADJ GIB

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

MTD/TROY-BILT RED (0638)

SHIM-ADJ GIB

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Not available

OYSTER GRAY (0662)

SHIM-ADJ GIB

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Not available

AGWAY BLUE (0692)

SHIM-ADJ GIB

Part# AGWAY BLUE (0692)

OEM Warranty Repair Part for MTD

Not available

CUB YELLOW-99 (0716)

ADJUSTABLE GUB SHIM

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for MTD

Not available

781-0350A

10

Fixed Gib

Part# 781-0350A

OEM Warranty Repair Part for MTD

Variations

CHARCOAL GRAY (0483)

GIB-FIXED SIDE

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $19.97

OLD CUB YELLOW (0498)

GIB-FIXED SIDE

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $19.97

POWDER BLACK (0637)

GIB-FIXED SIDE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $19.97

MTD/TROY-BILT RED (0638)

GIB-FIXED SIDE

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $19.97

OYSTER GRAY (0662)

GIB-FIXED SIDE

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $19.97

YARDMAN GREEN (0665)

GIB-FIXED SIDE

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $19.97

781-0537

11

Back Bracket

Part# 781-0537

OEM Warranty Repair Part for MTD

Variations

CHARCOAL GRAY (0483)

PLATE-PUSHER BACK

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $28.73

OLD CUB YELLOW (0498)

PUSHER BACK PLATE

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $28.73

POWDER BLACK (0637)

PLATE-PUSHER BACK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $28.73

MTD/TROY-BILT RED (0638)

PLATE-PUSHER BACK

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $28.73

OYSTER GRAY (0662)

PLATE-PUSHER BACK

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $28.73

YARDMAN YELLOW (0674)

PLATE-PUSHER BACK

Part# YARDMAN YELLOW (0674)

OEM Warranty Repair Part for MTD

Not available

CUB YELLOW-99 (0716)

PLATE-PUSHER BACK

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $28.73

736-0921

12

Lock Washer 1/2

Part# 736-0921 (Superseded to 936-0921)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.89

781-0356

13

Floating Gib Plate

Part# 781-0356

OEM Warranty Repair Part for MTD

Variations

CHARCOAL GRAY (0483)

PLATE-FLOATING GIB

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $85.90

OLD CUB YELLOW (0498)

FLOATING GIB PLATE

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $85.90

POWDER BLACK (0637)

PLATE-FLOATING GIB

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $85.90

MTD/TROY-BILT RED (0638)

PLATE-FLOATING GIB

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $85.90

CUB YELLOW-99 (0716)

PLATE-FLOATING GIB

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $85.90

710-0459A

14

Hex Cap Screw 3/8-24 x 1.5

Part# 710-0459A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.76

712-3001

15

Hex Jam Nut 3/8-24

Part# 712-3001 (Superseded to 912-3001)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.40

750-0750

16

Spacer

Part# 750-0750 (Superseded to 950-0750)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.18

736-0192

17

Flat Washer .531 x .93 x .090

Part# 736-0192 (Superseded to 936-0192)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.77

781-0525

18

Dislodger

Part# 781-0525

OEM Warranty Repair Part for MTD

Variations

CHARCOAL GRAY (0483)

DISLODGER

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $98.66

MAJESTIC ORANGE (0606)

DISLODGER

Part# MAJESTIC ORANGE (0606)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $98.66

POWDER BLACK (0637)

DISLODGER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $98.66

MTD/TROY-BILT RED (0638)

DISLODGER

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $98.66

OYSTER GRAY (0662)

DISLODGER

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $98.66

CUB YELLOW 2 (4021)

DISLODGER

Part# CUB YELLOW 2 (4021)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $98.66

710-0514

19

Hex Cap Screw 3/8-16 x 1.0

Part# 710-0514

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.78

681-0128

20

Beam Asm

Part# 681-0128

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

No Longer Available VERTICAL B

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

714-0211

21

Cotter Pin

Part# 714-0211

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.81

718-0313

22

Hydraulic Cylinder

Part# 718-0313

Note: replace with 718-0313A

OEM Warranty Repair Part for MTD

Variations

OLD CUB YELLOW (0498)

CYLINDER-LOGSPLITT

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $808.02

POWDER BLACK (0637)

CYLINDER-LOGSPLITT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $808.02

MTD/TROY-BILT RED (0638)

CYLINDER-LOGSPLITT

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $808.02

OYSTER GRAY (0662)

CYLINDER-LOGSPLITT

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $808.02

YARDMAN YELLOW (0674)

CYLINDER-LOGSPLITT

Part# YARDMAN YELLOW (0674)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $808.02

753-0564

22

Kit Seal 5.0" for Fisher Hydraulics cylinder 718-0313

Part# 753-0564

Note: Fisher cylinders use a snap ring retainer system to secure the piston assembly into the cylinder.

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $169.00

753-0691

22

Kit Seal 5.0" for Best Metals cylinder 718-0313

Part# 753-0691

Note: BEST cylinders will have "BM" or "BEST" cast into the end cap.

OEM Warranty Repair Part for MTD

Not available

718-0313A

22

Hydraulic Cylinder

Part# 718-0313A (Superseded to 918-0313A)

Note: replaces 718-0313

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $808.02

953-05609

22

Kit Seal 5.0" for XINGHUI cylinder 718-0313A

Part# 953-05609

Note: See Service Kit 753-05609

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $60.79

953-05610

22

Kit Seal 5.0" for ENERGY cylinder 718-0313A

Part# 953-05610

Note: See Service Kit 753-05610

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $164.37

711-1135

23

Clevis Pin

Part# 711-1135

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $45.72

727-0471

24

Hydraulic Tube

Part# 727-0471

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $64.48

727-0443

25

Return Hose 3/4" ID x 44" Lg

Part# 727-0443

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $77.13

781-0526

26

Hose Guard

Part# 781-0526

OEM Warranty Repair Part for MTD

Not available

726-0132

27

Hose Clamp 5/6"

Part# 726-0132

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $10.00

737-0153

28

Return Elbow

Part# 737-0153

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $37.60

737-0192

29

90 Degree Solid Male Adapter

Part# 737-0192

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $27.16

737-0235

30

3/4" Hose Adapter

Part# 737-0235

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $16.61

718-0481

31

Control Valve

Part# 718-0481

OEM Warranty Repair Part for MTD

Variations

OLD CUB YELLOW (0498)

VALVE-LOGSPLITTER

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $279.26

POWDER BLACK (0637)

VALVE-LOGSPLITTER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $279.26

737-0306

32

Filter Housing

Part# 737-0306 (Superseded to 681-0179)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $115.82

723-0405

33

Oil Filter

Part# 723-0405

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $31.04

727-0502

34

High Pressure Hydraulic Hose

Part# 727-0502

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $136.18

781-0538

35

Hose Guard

Part# 781-0538 (Superseded to 781-0538A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $23.15

714-0470

36

Cotter Pin 1/8" Dia

Part# 714-0470 (Superseded to 914-0470)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.85

738-0805

37

Hinge Pin 1/2 x 4.8" Lg.

Part# 738-0805

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.89

726-0214

38

Push Cap

Part# 726-0214

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.74

732-0583

39

Comp. Spring 4" Lg.

Part# 732-0583

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.90

736-0116

40

Flat Washer .635 ID x .93 OD

Part# 736-0116 (Superseded to 936-0116)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.50

781-0690

41

Locking Rod

Part# 781-0690

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $23.23

737-0236

42

Pipe Plug

Part# 737-0236 (Superseded to 737-0348A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $15.23

681-0138

43

Fender Asm

Part# 681-0138

OEM Warranty Repair Part for MTD

Variations

CHARCOAL GRAY (0483)

No Longer Available

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for MTD

Not available

OLD CUB YELLOW (0498)

No Longer Available 781-04000-

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for MTD

Not available

POWDER BLACK (0637)

No Longer Available

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

MTD/TROY-BILT RED (0638)

FENDER LOGSPLTR

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $84.77

OYSTER GRAY (0662)

Fender

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Not available

YARDMAN GREEN (0665)

No Longer Available

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Not available

POLO GREEN (0689)

No Longer Available

Part# POLO GREEN (0689)

OEM Warranty Repair Part for MTD

Not available

CUB YELLOW-99 (0716)

No Longer Available FENDER LOG

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for MTD

Not available

736-0159

44

5/16 Washer

Part# 736-0159 (Superseded to 936-0159)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.76

710-0157

45

Hex Cap Screw 5/16-24 x .75

Part# 710-0157

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.85

681-0103A

46

Frame Asm

Part# 681-0103A

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

No Longer Available

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

MTD/TROY-BILT RED (0638)

No Longer Available

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Not available

YARDMAN GREEN (0665)

No Longer Available

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Not available

736-0119

47

Lock Washer 5/16

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

712-0123

48

Hex Nut 5/16-24

Part# 712-0123 (Superseded to 912-3057)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.40

710-0409

49

Hex Cap Screw 5/16-24 x 1.

Part# 710-0409

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.97

710-1253

50

Hex Cap Screw 5/16-24 x 5.

Part# 710-1253

OEM Warranty Repair Part for MTD

Not available

781-0535

51

Fuel Tank Mounting Bracket

Part# 781-0535

OEM Warranty Repair Part for MTD

Not available

781-0536

52

Fuel Tank Support Bracket

Part# 781-0536

OEM Warranty Repair Part for MTD

Not available

736-0119

53

Lock Washer 5/16

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

710-0117

54

Hex Cap Screw 5/16-24 x 1.0

Part# 710-0117 (Superseded to 710-0888)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.83

710-0514

55

Hex Cap Screw 3/8-16 x 1.0

Part# 710-0514

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.78

719-0315

56

Shoulder Spacer

Part# 719-0315

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $88.65

714-0114

57

Key

Part# 714-0114 (Superseded to 914-0114)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.74

712-0123

58

Hex Nut 5/16

Part# 712-0123 (Superseded to 912-3057)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.40

717-0462

59

Flex Coupling

Part# 717-0462

OEM Warranty Repair Part for MTD

Not available

726-0205

60

Hose Clamp

Part# 726-0205

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.73

751-0535

61

Fuel Line Hose

Part# 751-0535

OEM Warranty Repair Part for MTD

Currently unavailable

781-0097

62

Rear Coupling Support

Part# 781-0097

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

BRACKET-SUPPORT-RR

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $45.48

737-0264

63

Adapter 7/8-14

Part# 737-0264

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $40.02

718-0477

64

Pump (16 gpm)

Part# 718-0477 (Superseded to 753-05195)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $1220.37

726-0174

65

Hose Clamp

Part# 726-0174

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.00

727-0451

66

Suction Hose

Part# 727-0451

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $70.29

710-0521

67

Hex Cap Screw 3/8-16 x 3.0

Part# 710-0521

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.37

712-0798

68

Hex Nut 3/8-16

Part# 712-0798

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.83

736-0169

69

Lock Washer 3/8

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.47

781-0680A

70

Tube

Part# 781-0680A

OEM Warranty Repair Part for MTD

Variations

CHARCOAL GRAY (0483)

TUBE-TONGUE

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for MTD

Not available

OLD CUB YELLOW (0498)

TONGUE TUBE

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $154.66

POWDER BLACK (0637)

TUBE-TONGUE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $154.66

MTD/TROY-BILT RED (0638)

TUBE-TONGUE

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $154.66

TECH GRAY (0648)

TUBE-TONGUE

Part# TECH GRAY (0648)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $154.66

RED METALLIC (0650)

TUBE-TONGUE

Part# RED METALLIC (0650)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $154.66

OYSTER GRAY (0662)

TUBE-TONGUE

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Not available

YARDMAN GREEN (0665)

TUBE-TONGUE

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $154.66

YARDMAN YELLOW (0674)

TUBE-TONGUE

Part# YARDMAN YELLOW (0674)

OEM Warranty Repair Part for MTD

Not available

POLO GREEN (0689)

TUBE-TONGUE

Part# POLO GREEN (0689)

OEM Warranty Repair Part for MTD

Not available

CUB YELLOW-99 (0716)

TONGUE TUBE

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for MTD

Not available

781-0690

71

Locking Rod

Part# 781-0690

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $23.23

710-0411

72

Hex Cap Screw 3/8-16 x 4.0

Part# 710-0411

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.31

681-0110

73

Support Beam Asm

Part# 681-0110

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

SUPPORT ASM. BEAM

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

681-0006

74

Adjustable Jack Stand

Part# 681-0006 (Superseded to 981-04029)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $216.39

710-0944

75

Hex Cap Screw 3/8-16 x 4.25

Part# 710-0944

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.44

736-0262

76

Flat Washer .385 ID x .870 OD

Part# 736-0262

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.69

713-0433

77

Chain

Part# 713-0433 (Superseded to 713-0433A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $29.11

750-0497

78

Spacer

Part# 750-0497

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.86

727-0311

79

Hitch Coupler

Part# 727-0311

OEM Warranty Repair Part for MTD

Not available

712-0375

80

Lock Nut 3/8-16

Part# 712-0375

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94

712-3008

81

Hex Jam Nut 3/8-16

Part# 712-3008 (Superseded to 912-3008)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.03

711-0813

82

Clevis Pin

Part# 711-0813 (Superseded to 911-0813)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.40

736-0185

83

Flat Washer

Part# 736-0185 (Superseded to 936-0185)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.55

781-0162

84

Jack Stand

Part# 781-0162

OEM Warranty Repair Part for MTD

Variations

CHARCOAL GRAY (0483)

STAND-JACK

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $82.45

POWDER BLACK (0637)

STAND-JACK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $82.45

MTD/TROY-BILT RED (0638)

STAND-JACK

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $82.45

TECH GRAY (0648)

STAND-JACK

Part# TECH GRAY (0648)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $82.45

YARDMAN YELLOW (0674)

STAND-JACK

Part# YARDMAN YELLOW (0674)

OEM Warranty Repair Part for MTD

Not available

CUB YELLOW-99 (0716)

STAND-JACK

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $82.45

732-0194

85

Spring Pin

Part# 732-0194

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.07

721-0168

86

Bearing Seal Only

Part# 721-0168 (Superseded to 921-0168)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.68

741-0987

87

Bearing Cone

Part# 741-0987 (Superseded to 941-04089)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $11.02

634-0186

88

Wheel Asm Comp - Gray

Part# 634-0186

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $248.93

634-0188

88

Rim Asm - Gray

Part# 634-0188

Note: Not shown

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $155.60

734-0872

88

Tire 16 x 4.8

Part# 734-0872

Note: Not shown

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $110.89

734-0255

88

Air Valve

Part# 734-0255 (Superseded to 934-0255)

Note: Not shown

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.86

741-0988

89

Bearing Cup

Part# 741-0988

OEM Warranty Repair Part for MTD

Currently unavailable

736-0351

90

Flat Washer .76" ID x 1.5" OD

Part# 736-0351 (Superseded to 936-0351)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.88

712-0359

91

Slotted Nut 3/4-16

Part# 712-0359

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.52

714-0162

92

Cotter Pin 5/32" x 1-1/4" Lg.

Part# 714-0162

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.18

734-0873

93

Hub Cap

Part# 734-0873

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.73

681-0074

94

Light Bracket Asm - LH

Part# 681-0074

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

BRACKET-TAILLIGHT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

625-0009

95

Tail Light Asm

Part# 625-0009

OEM Warranty Repair Part for MTD

Not available

712-0292

96

Nut 1/4-20

Part# 712-0292

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.65

781-0624

97

Light Bracket Asm - RH

Part# 781-0624

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

BRACKET-TAILLIGHT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

710-0157

98

Hex Cap Screw 5/16-24 x .75

Part# 710-0157

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.85

736-0119

99

Lock Washer 5/16

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

712-0123

100

Hex Nut 5/16-24

Part# 712-0123 (Superseded to 912-3057)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.40

OEM-290-004

101

Taillight Kit

Part# OEM-290-004

OEM Warranty Repair Part for MTD

Not available
