24BF50MX783 - Remington Log Splitter (2014) General Assembly 24BF50MX783 Parts Diagram

Log Splitter

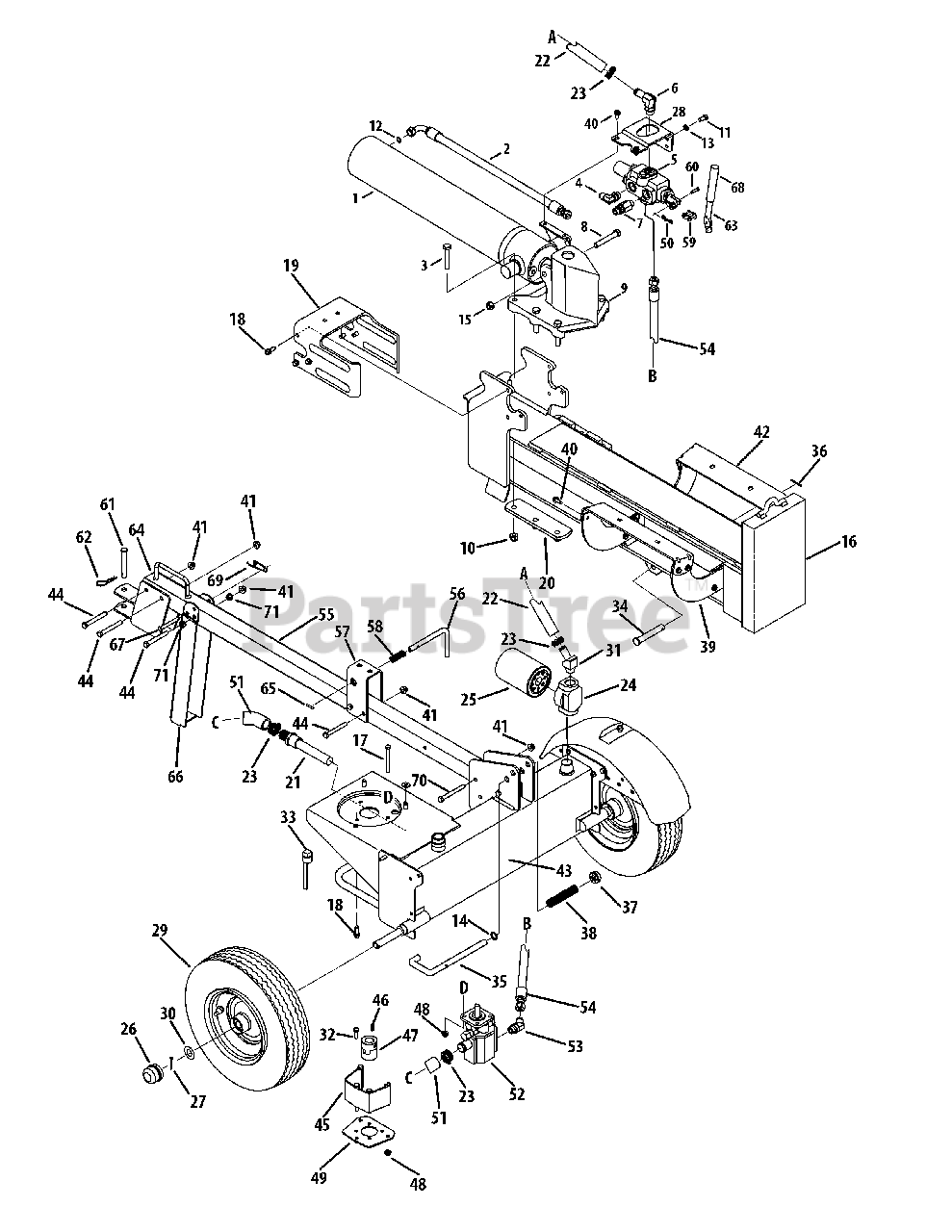

General Assembly 24BF50MX783 Parts Diagram

  • Title

1

MTD 918-04713

Hydraulic Cylinder

$760.99

$

Usually ships in 3-6 days

0

2

MTD 727-04362

Hydraulic Tube

$85.99

$

Usually ships in 3-6 days

0

3

MTD 710-1018

Hex Cap Screw, 1/2-20 x 2.75

$10.99

$

In Stock, Qty 20+

0

4

MTD 737-04320

90 Degree Solid Adapter

$19.99

$

Usually ships in 3-6 days

0

5

MTD 718-05392

Control Valve
(Superseded to 918-05392)

$260.99

$

Usually ships in 3-6 days

0

6

MTD 737-04307

Return Elbow

$22.99

$

Usually ships in 3-6 days

0

7

MTD 737-04309

Nipple Pipe, 1/2-14

$19.99

$

In Stock, Qty 7

0

8

MTD 710-1806

Hex Cap Screw, 1/2-13 x 3.25

$9.49

$

In Stock, Qty 12

0

9

MTD 719-04529

Wedge Assembly

$234.99

$

Usually ships in 3-6 days

0

10

MTD 912-3058

Hex Lock Nut, 1/2-20

$5.49

$

In Stock, Qty 20+

0

11

MTD 710-0216

Hex Cap Screw, 3/8-16 x .75

$3.99

$

In Stock, Qty 17

0

12

MTD 721-04411

O-Ring, .419 ID x .070 Dia.

$3.99

$

Usually ships in 3-6 days

0

13

MTD 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

14

MTD 936-0116

Flat Washer, .635 x.93 x.06

$6.49

$

In Stock, only 1 left!

0

15

MTD 712-3022

Hex Lock Nut, 1/2-13

$3.99

$

In Stock, Qty 20+

0

16

MTD 681-04112-0637

Beam Assembly
(Superseded to 681-04112A-0637)

$1290.99

$

Usually ships in 3-6 days

0

17

MTD 710-3056

Hex Screw, 5/16-18 x 3.25

$9.49

$

In Stock, only 1 left!

0

18

MTD 710-04683B

Self Tapping Screw, 3/8-16 x 1.0
(Superseded to 710-04683C)

$6.49

$

In Stock, Qty 6

0

19

MTD 781-04426-4041

Dislodger Bracket

$75.99

$

Usually ships in 3-6 days

0

20

MTD 781-0790A-0637

Back Plate

$37.99

$

In Stock, only 2 left!

0

21

MTD 737-04308

Inlet Filter

$40.99

$

Usually ships in 3-6 days

0

22

MTD 727-0443

Return Hose, 3/4 x 44

$110.99

$

In Stock, only 1 left!

0

23

MTD 726-0132

Hose Clamp, 5/8

$14.99

$

Usually ships in 3-6 days

0

24

MTD 737-04267

Filter Housing

$53.99

$

In Stock, only 1 left!

0

25

MTD 723-0405

Oil Filter
(Superseded to 723P0405)

$39.99

$

In Stock, only 4 left!

0

26

MTD 931-0484A

Hub Cap

$5.99

$

In Stock, Qty 20+

0

27

MTD 714-0162

Cotter Pin

$4.99

$

In Stock, Qty 20+

0

28

MTD 781-04418-0637

Outer Valve Bracket

$16.99

$

Usually ships in 3-6 days

0

29

MTD 634-05059

Complete Wheel Assembly

Variations

MTD 634-05059-0961

Wheel Complete, 13 - Carlisle Gray (0961)

$103.99

$

In Stock, Qty 20+

0

$103.99

$

In Stock, Qty 20+

0

30

MTD 936-0316

Flat Washer, .780 x 1.590
(Superseded to 736-0316)

$3.99

$

In Stock, Qty 20+

0

31

MTD 737-04323

Hydraulic Fitting, 1 1/16 Orb x .75

$26.99

$

Usually ships in 3-6 days

0

32

MTD 710-0376

Hex Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 17

0

33

MTD 737-0348A

Vented Dipstick

$21.99

$

In Stock, only 4 left!

0

34

MTD 711-05169

Clevis Pin

$4.99

$

Usually ships in 3-6 days

0

35

MTD 747-04983

Lock Rod

$23.99

$

Usually ships in 3-6 days

0

36

MTD 914-0470

Cotter Pin
(Superseded to 714-0470)

$3.99

$

In Stock, Qty 20+

0

37

MTD 726-0214

Push Cap

$9.99

$

In Stock, Qty 20+

0

38

MTD 732-0583

Compression Spring

$11.99

$

Usually ships in 3-6 days

0

39

MTD 781-04293-0637

Log Tray Bracket

$19.99

$

In Stock, only 2 left!

0

40

MTD 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

41

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

42

MTD 781-04179-0637

Log Tray

$46.99

$

In Stock, Qty 8

0

43

MTD 981-04187-0637

Frame Assembly

$399.99

$

Usually ships in 3-6 days

0

44

MTD 710-0521

Hex Bolt, 3/8-16 x 3

$4.99

$

In Stock, Qty 15

0

45

MTD 719-0353

Coupling Shield

$50.99

$

Usually ships in 3-6 days

0

46

MTD 914-0122

Square Key, 3/16" x .75
(Superseded to 714-0122)

$

$

Not available

47

N/A

Log Splitter Coupling

$

$

Not available

47

MTD 718-04392

Coupling, .500

$13.99

$

In Stock, only 4 left!

0

47

MTD 718-04395

Coupling, .875

$17.99

$

In Stock, Qty 9

0

47

MTD 735-0652

Spider Bushing

$43.99

$

Usually ships in 3-6 days

0

47

MTD 710-1842A

Set Screws

$5.49

$

In Stock, Qty 8

0

48

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

49

MTD 781-0097-0637

Rear Coupling Support Bracket

$64.99

$

In Stock, only 3 left!

0

50

MTD 714-04040

Cotter Pin, Bow Tie

$1.49

$

In Stock, Qty 20+

0

51

MTD 727-04290

Hose
(Superseded to 727-04130)

$99.99

$

In Stock, only 1 left!

0

52

MTD 918-04127

Gear Pump

$698.99

$

Usually ships in 3-6 days

0

53

MTD 737-04321

45 Degree Elbow Fitting

$16.99

$

Usually ships in 3-6 days

0

54

MTD 727-04288

High Pressure Hydraulic Hose

$85.99

$

Usually ships in 3-6 days

0

55

MTD 681-04188-0637

Tongue Assembly

$

$

Not available

56

MTD 747-1261

Latch Rod

$37.99

$

Usually ships in 3-6 days

0

57

MTD 781-1045-0637

Latch

$55.99

$

Usually ships in 3-6 days

0

58

MTD 932-3127

Compression Spring

$4.49

$

In Stock, Qty 17

0

59

MTD 913-04036

Valve Handle Link

$19.99

$

In Stock, only 2 left!

0

60

MTD 711-04585

Clevis Pin

$6.49

$

In Stock, only 3 left!

0

61

MTD 711-0578

Clevis Pin

$10.99

$

Usually ships in 3-6 days

0

62

MTD 714-3020

Internal Cotter Pin

$3.99

$

In Stock, Qty 9

0

63

MTD 747-04539A

Hydraulic Valve Control

$42.99

$

In Stock, only 1 left!

0

64

MTD 681-0167

Hitch Mounting Assembly

Variations

MTD 681-0167-0637

HITCH ASM-TONGUE L - POWDER BLACK (0637)

$

$

Not available

$

$

65

MTD 715-0120

Spiral Pin

$9.99

$

In Stock, only 3 left!

0

66

MTD 781-04430

Jack Stand

Variations

MTD 781-04430-0606

STAND-JACK LGSPLT - MAJESTIC ORANGE (0606)

$37.99

$

Usually ships in 3-6 days

0

MTD 781-04430-0638

Stand Jack Logspli - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

MTD 781-04430-0662

STAND-JACK LOGSPLI - OYSTER GRAY (0662)

$39.99

$

Usually ships in 3-6 days

0

MTD 781-04430-4021

STAND-JACK LOGSPLI - CUB YELLOW 2 (4021)

$39.99

$

Usually ships in 3-6 days

0

MTD 781-04430-0637

STAND-JACK LOGSPLI - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

67

MTD 911-0813

Clevis Pin

$6.49

$

In Stock, only 1 left!

0

68

MTD 720-04088

Grip

$9.99

$

In Stock, only 1 left!

0

69

MTD 732-0194

Spring Pin

$4.49

$

In Stock, only 1 left!

0

70

MTD 710-3085

Hex Cap Screw, 3/8-16 x 3.50

$4.49

$

In Stock, Qty 20+

0

71

MTD 941-0475

Plastic Bushing, .380 ID

$3.99

$

In Stock, Qty 20+

0
