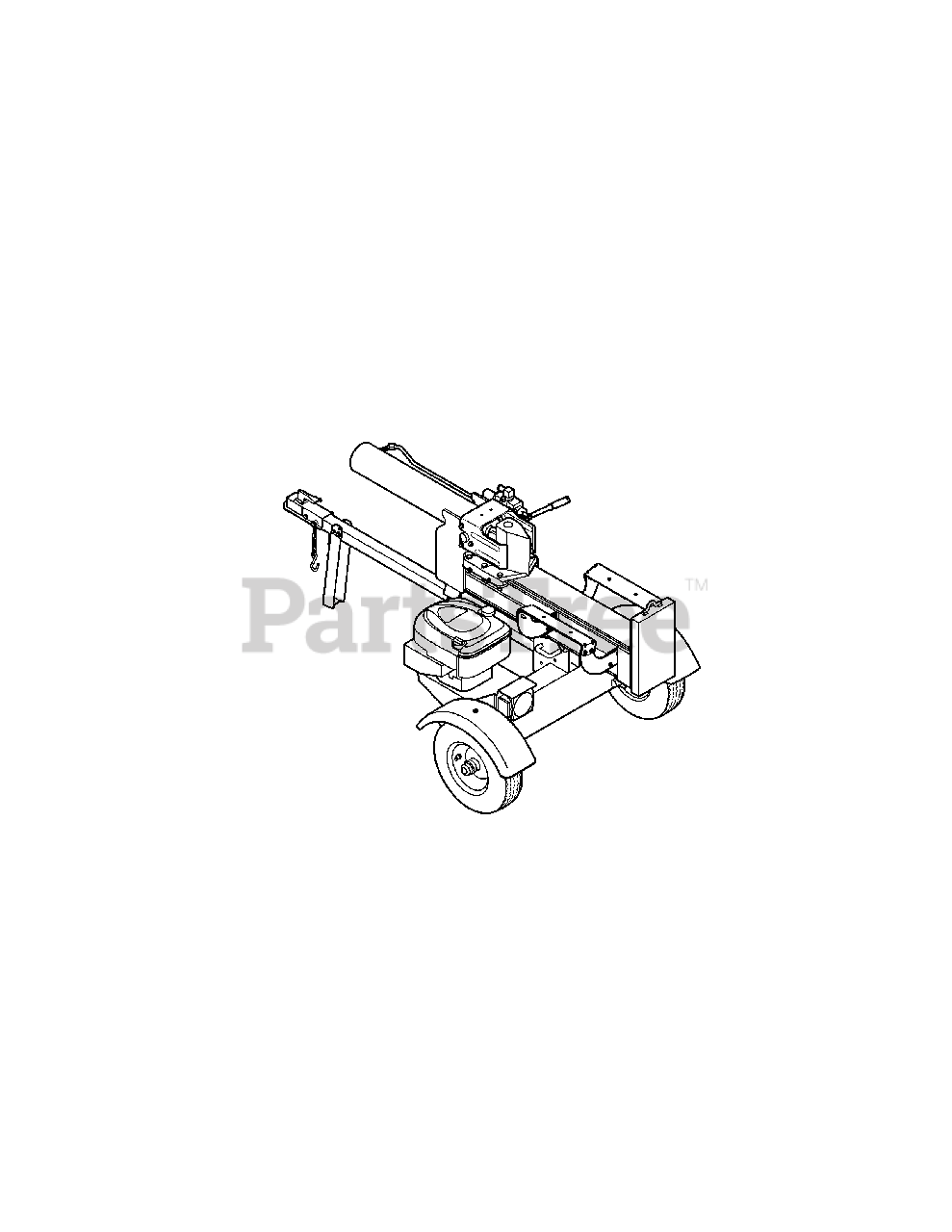

24BF550M006 - MTD Log Splitter (2010) .Quick Reference Parts Diagram

Log Splitter

.Quick Reference Parts Diagram

  • Title

MTD 759-3338

Spark Plug

$3.49

$

In Stock, Qty 20+

0

MTD BS-493537S

Pre Filter

$6.49

$

In Stock, Qty 20+

0

MTD BS-491588S

Air Filter

$6.49

$

In Stock, Qty 20+

0

N/A

Fuel Filter

$

$

Not available

MTD 918-0769A

Hydraulic Cylinder

$991.99

$

Usually ships in 3-6 days

0

MTD 723-0405

Hydraulic Filter
(Superseded to 723P0405)

$42.99

$

In Stock, only 4 left!

0

MTD 737-04093

Inlet Filter

$90.99

$

Usually ships in 3-6 days

0

MTD 737-0348A

Vented Dipstick

$23.99

$

In Stock, only 4 left!

0

MTD 718-04392

Coupling, .500, Engine Side

$14.99

$

In Stock, only 4 left!

0

MTD 718-04395

Coupling, .875, Pump Side

$18.99

$

In Stock, Qty 9

0

MTD 735-04103

Spider Bushing

$14.99

$

In Stock, Qty 8

0

N/A

Adjustable Gibbs

$

$

Not available

N/A

Belt

$

$

Not available

MTD 747-04539

Hydraulic Valve Control
(Superseded to 747-04539A)

$45.99

$

In Stock, only 1 left!

0

MTD 720-04088

Grip

$10.99

$

In Stock, only 1 left!

0

MTD 913-04036

Valve Handle Link

$21.99

$

In Stock, only 2 left!

0

MTD 713-0433A

Chain

$44.99

$

Usually ships in 3-6 days

0

MTD 734-0873

Hub Cap

$11.99

$

In Stock, only 2 left!

0

MTD 634-0186

Wheel Assembly

$363.99

$

In Stock, only 1 left!

0
