250 PS - Husqvarna Pole Saw (SN: 19940600001 - 19960500000) SAW HEAD Parts Diagram

Pole Saw

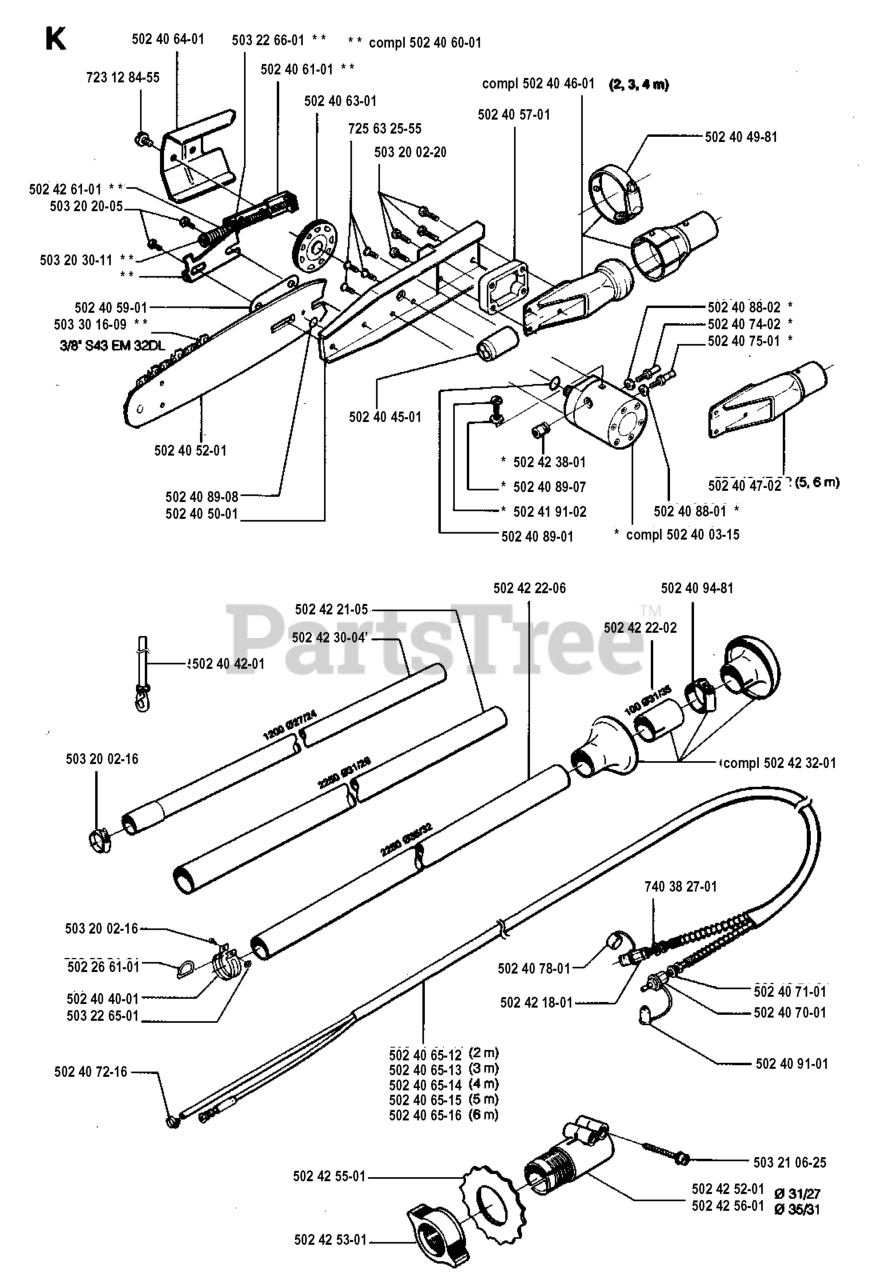

SAW HEAD Parts Diagram

  • Title

502 42 38-01

Husqvarna 502423801

OVERFLOW VALVE
(Superseded to 502423802)

$

$

Not available

502 40 89-08

Husqvarna 502408908

O-RING

$

$

Not available

503 20 20-05

Husqvarna 503202005

SCREW

$

$

Not available

502 40 65-12

Husqvarna 502406512

HOSE 2 M

Note: 2M

$

$

Not available

502 40 70-01

Husqvarna 502407001

CLATCH

$

$

Not available

502 40 52-01

Husqvarna 502405201

GUIDE BAR, 6

$

$

Not available

502 42 18-01

Husqvarna 502421801

HOSE CONNECTION

$

$

Not available

502 40 91-01

Husqvarna 502409101

DUST PROTECTOR

$

$

Not available

502 40 89-01

Husqvarna 502408901

O-RING

$

$

Not available

502 40 71-01

Husqvarna 502407101

WASHER

$

$

Not available

502 40 40-01

Husqvarna 502404001

LOOP

$

$

Not available

503 20 02-16

Husqvarna 503200216

SCREW

$4.99

$

In Stock, Qty 20+

0

723 12 84-55

Husqvarna 723128455

SCREW

$

$

Not available

502 40 78-01

Husqvarna 502407801

DUST PROTECTOR

$

$

Not available

502 40 88-01

Husqvarna 502408801

WASHER-COMPRESSION SIDE

$

$

Not available

502 40 65-13

Husqvarna 502406513

HOSE 3 M

Note: 3M

$

$

Not available

502 40 75-01

Husqvarna 502407501

NIPPLE-COMPRESSION SIDE

$

$

Not available

502 40 74-02

Husqvarna 502407402

NIPPLE-RETURN SIDE

$

$

Not available

502 40 45-01

Husqvarna 502404501

GASKET

$

$

Not available

502 40 50-01

Husqvarna 502405001

BRACKET
(Superseded to 537164901)

$

$

Not available

502 40 65-16

Husqvarna 502406516

HOSE 6 M

Note: 6M

$

$

Not available

502 40 03-15

Husqvarna 502400315

HYDRAULIC MOTOR

$

$

Not available

502 40 65-15

Husqvarna 502406515

HOSE 5 M

Note: 5M

$

$

Not available

725 63 25-55

Husqvarna 725632555

SCREW

$

$

Not available

503 22 66-01

Husqvarna 503226601

NUT

$6.49

$

Usually ships in 3-10 days

0

503 30 16-09

Husqvarna 503301609

REPL BY 503 30 31-32
(Superseded to 503303132)

Note: 3/8 S43 EM 32DL

$

$

Not available

740 38 27-01

Husqvarna 740382701

SEAL RING

$

$

Not available

503 21 06-25

Husqvarna 503210625

SCREW
(Superseded to 503214925)

$6.49

$

In Stock, Qty 8

0

502 40 49-81

Husqvarna 502404981

CLAMP
(Superseded to 502425901)

$

$

Not available

502 40 61-01

Husqvarna 502406101

HOLDER

$

$

Not available

502 40 89-07

Husqvarna 502408907

0-RING

$

$

Not available

502 40 59-01

Husqvarna 502405901

GASKET

$

$

Not available

502 42 30-04

Husqvarna 502423004

SHAFT
(Superseded to 502422002)

$

$

Not available

502 42 21-05

Husqvarna 502422105

SHAFT

$

$

Not available

502 40 46-01

Husqvarna 502404601

BALL JOINT
(Superseded to 502428301)

Note: 2, 3, 4M

$

$

Not available

502 42 32-01

Husqvarna 502423201

HOSE GUARD COMPLETE

$

$

Not available

502 42 56-01

Husqvarna 502425601

CLAMP 35/31
(Superseded to 502425603)

Note: DIA. 35/31

$

$

Not available

502 40 63-01

Husqvarna 502406301

WORM WHEEL

$

$

Not available

503 20 30-11

Husqvarna 503203011

SCREW

$8.49

$

In Stock, only 1 left!

0

502 26 61-01

Husqvarna 502266101

HOOK

$

$

Not available

502 40 88-02

Husqvarna 502408802

WASHER-RETURN SIDE

$

$

Not available

502 40 94-81

Husqvarna 502409481

CLAMP

$

$

Not available

502 40 72-16

Husqvarna 502407216

CLAMP

$

$

Not available

502 42 61-01

Husqvarna 502426101

$

$

Currently unavailable

502 42 22-06

Husqvarna 502422206

SHAFT

$

$

Not available

502 42 53-01

Husqvarna 502425301

WING NUT
(Superseded to 502425303)

$

$

Not available

502 40 42-01

Husqvarna 502404201

BELT
(Superseded to 502404203)

$

$

Not available

502 42 52-01

Husqvarna 502425201

CLAMP 31/27
(Superseded to 502425205)

Note: DIA. 31/27

$

$

Not available

503 20 02-20

Husqvarna 503200220

SCREW

$6.49

$

In Stock, Qty 20+

0

502 40 65-14

Husqvarna 502406514

HOSE 4 M

Note: 4M

$

$

Not available

502 40 47-02

Husqvarna 502404702

BRACKET
(Superseded to 502428303)

Note: 5, 6M

$

$

Not available

502 42 55-01

Husqvarna 502425501

LOCK
(Superseded to 502425503)

$

$

Not available

502 42 22-02

Husqvarna 502422202

CLAMP

$

$

Not available

502 41 91-02

Husqvarna 502419102

ADJUSTMENT SCREW-CHAIN LUBE

$

$

Not available

502 40 64-01

Husqvarna 502406401

COVER

$

$

Not available

502 40 57-01

Husqvarna 502405701

SPACER

$

$

Not available

503 22 65-01

Husqvarna 503226501

SQUARE NUT M5
(Superseded to 503226504)

$6.49

$

In Stock, Qty 20+

0

502 40 60-01

Husqvarna 502406001

CHAIN TENSIONER

$

$

Not available
