250 PS - Husqvarna Pole Saw (SN: 19984000001 - 20023500000) CRANKCASE Parts Diagram

Pole Saw

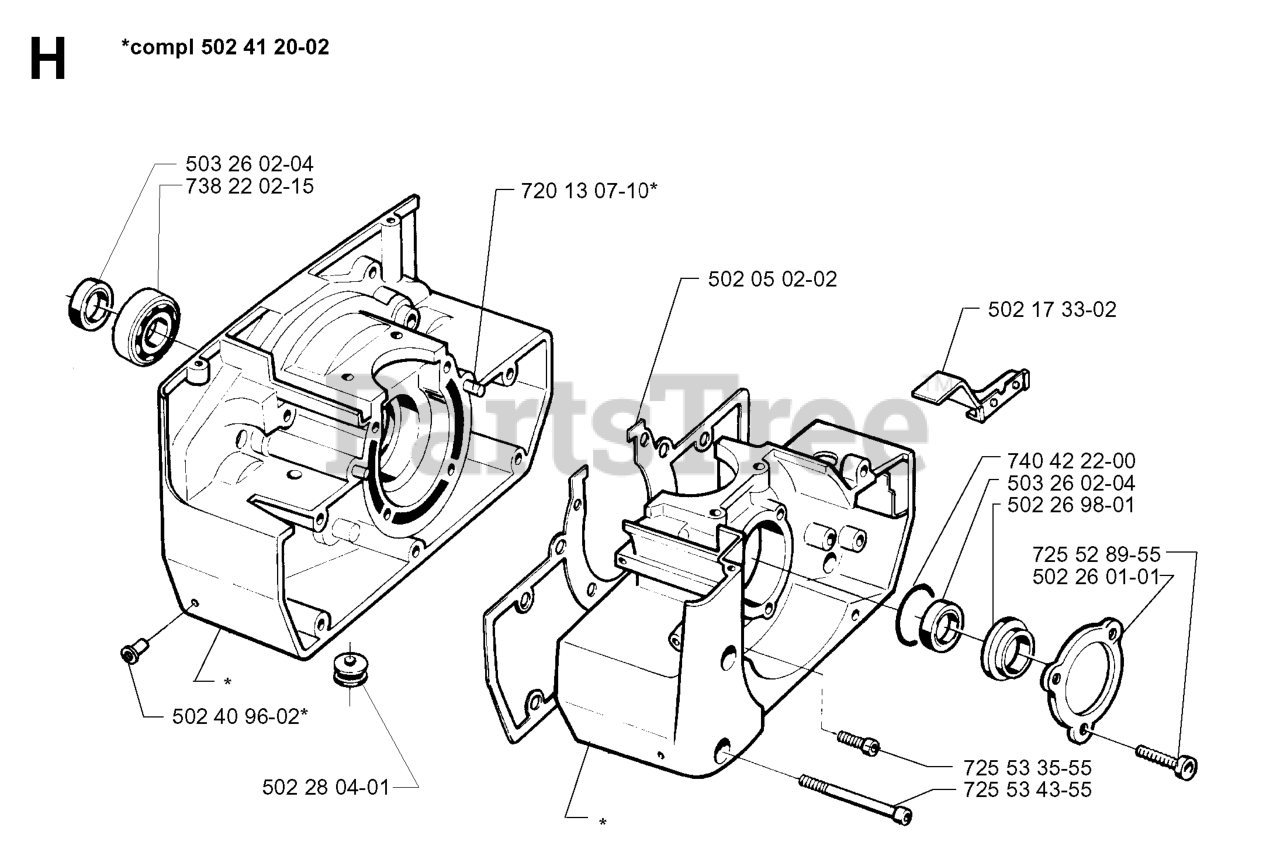

CRANKCASE Parts Diagram

  • Title

502 28 04-01

Husqvarna 502280401

GROMMET

$3.49

$

Usually ships in 3-10 days

0

502 26 98-01

Husqvarna 502269801

HOLDER

$8.07

$

Usually ships in 3-10 days

0

738 22 02-15

Husqvarna 738220215

BALL BEARING 6202-QE6
(Superseded to 738220225)

$41.99

$

Usually ships in 3-10 days

0

725 52 89-55

Husqvarna 725528955

Screw Mc6s 4x10

$

$

Not available

740 42 22-00

Husqvarna 740422200

O-RING

$4.99

$

In Stock, only 1 left!

0

502 26 01-01

Husqvarna 502260101

Retainer

$

$

Not available

503 26 02-04

Husqvarna 503260204

SEALING RING

$16.99

$

In Stock, Qty 12

0

502 05 02-02

Husqvarna 502050202

GASKET
(Superseded to 502229401)

$5.76

$

Usually ships in 3-10 days

0

725 53 35-55

Husqvarna 725533555

SCREW MC6S 5X30

$3.49

$

In Stock, only 1 left!

0

502 41 20-02

Husqvarna 502412002

$

$

Currently unavailable

720 13 07-10

Husqvarna 720130710

PIN 5X14
(Superseded to 720130752)

$8.99

$

Usually ships in 3-10 days

0

502 17 33-02

Husqvarna 502173302

Bracket

$

$

Not available

725 53 43-55

Husqvarna 725534355

SCREW MC6S 5X60

$4.99

$

Usually ships in 3-10 days

0

502 40 96-02

Husqvarna 502409602

PLUG

$

$

Not available
