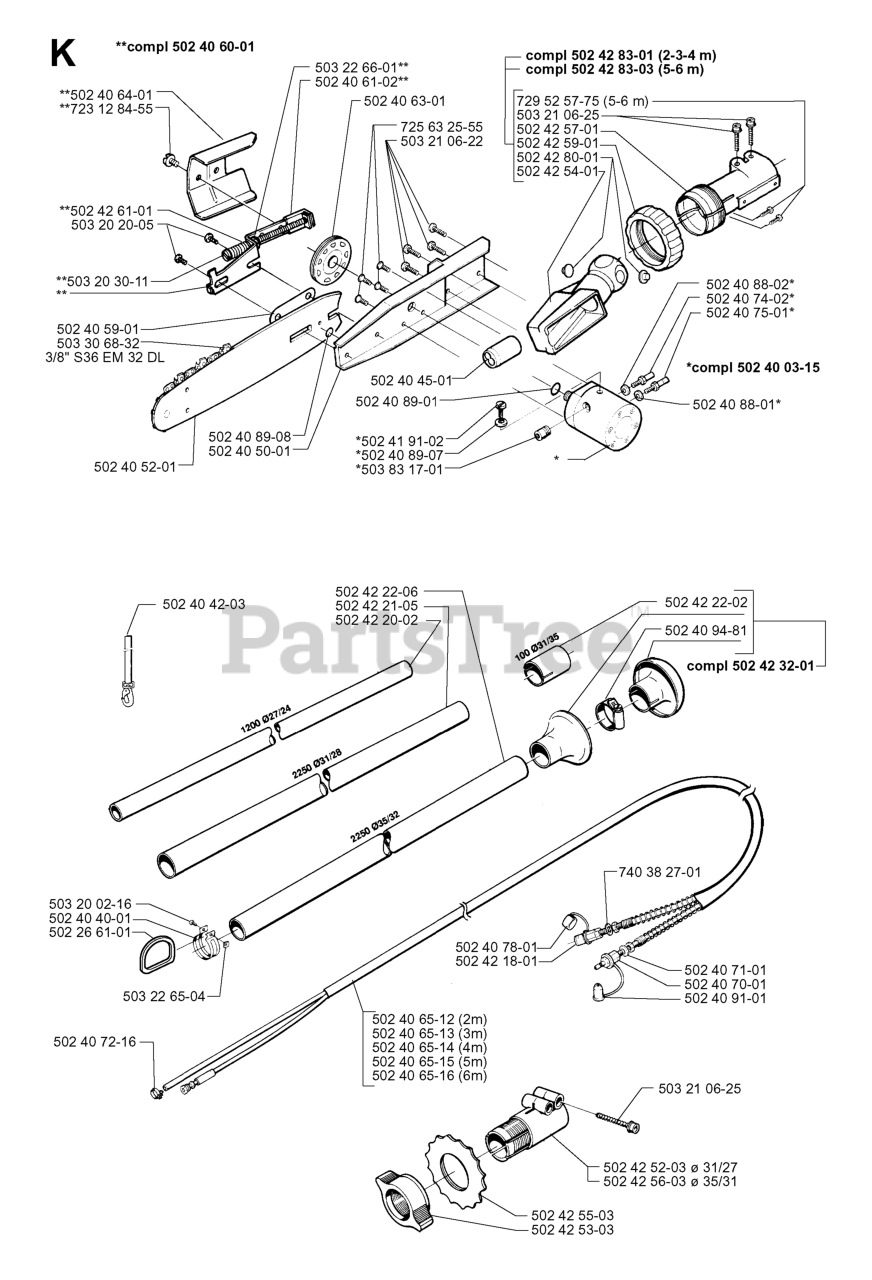

250 PS - Husqvarna Pole Saw (SN: 19984000001 - 20023500000) SAW HEAD Parts Diagram

Pole Saw

SAW HEAD Parts Diagram

  • Title

740 38 27-01

Husqvarna 740382701

SEAL RING

$

$

Not available

502 42 61-01

Husqvarna 502426101

$

$

Currently unavailable

502 40 03-15

Husqvarna 502400315

HYDRAULIC MOTOR

$

$

Not available

502 42 83-03

Husqvarna 502428303

BALL JOINT COMPLETE

Note: 5-6 M

$

$

Not available

502 40 75-01

Husqvarna 502407501

NIPPLE-COMPRESSION SIDE

$

$

Not available

502 40 89-07

Husqvarna 502408907

0-RING

$

$

Not available

502 40 88-02

Husqvarna 502408802

WASHER-RETURN SIDE

$

$

Not available

502 40 65-14

Husqvarna 502406514

HOSE 4 M

Note: 4M

$

$

Not available

502 40 64-01

Husqvarna 502406401

COVER

$

$

Not available

502 40 88-01

Husqvarna 502408801

WASHER-COMPRESSION SIDE

$

$

Not available

503 20 02-16

Husqvarna 503200216

SCREW

$4.99

$

In Stock, Qty 20+

0

502 40 42-03

Husqvarna 502404203

BELT

$

$

Not available

503 83 17-01

Husqvarna 503831701

VALVE
(Superseded to 502423802)

$

$

Not available

502 40 71-01

Husqvarna 502407101

WASHER

$

$

Not available

502 40 61-02

Husqvarna 502406102

$

$

Currently unavailable

502 40 78-01

Husqvarna 502407801

DUST PROTECTOR

$

$

Not available

503 21 06-25

Husqvarna 503210625

SCREW
(Superseded to 503214925)

$6.49

$

In Stock, Qty 8

0

502 42 21-05

Husqvarna 502422105

SHAFT

$

$

Not available

502 40 52-01

Husqvarna 502405201

GUIDE BAR, 6

$

$

Not available

502 41 91-02

Husqvarna 502419102

ADJUSTMENT SCREW-CHAIN LUBE

$

$

Not available

502 40 65-12

Husqvarna 502406512

HOSE 2 M

Note: 2M

$

$

Not available

502 40 59-01

Husqvarna 502405901

GASKET

$

$

Not available

502 42 56-03

Husqvarna 502425603

SLEEVE

Note: DIA. 35/31

$

$

Not available

502 40 70-01

Husqvarna 502407001

CLATCH

$

$

Not available

502 42 20-02

Husqvarna 502422002

SHAFT TOP

$

$

Not available

503 20 30-11

Husqvarna 503203011

SCREW

$8.49

$

In Stock, only 1 left!

0

502 40 74-02

Husqvarna 502407402

NIPPLE-RETURN SIDE

$

$

Not available

729 52 57-75

Husqvarna 729525775

SCREW

Note: 5-6 M

$2.49

$

Usually ships in 3-10 days

0

502 40 65-16

Husqvarna 502406516

HOSE 6 M

Note: 6M

$

$

Not available

502 42 22-06

Husqvarna 502422206

SHAFT

$

$

Not available

502 40 50-01

Husqvarna 502405001

BRACKET
(Superseded to 537164901)

$

$

Not available

502 42 52-03

Husqvarna 502425203

SLEEVE
(Superseded to 502425205)

Note: DIA. 31/27

$

$

Not available

502 42 54-01

Husqvarna 502425401

JOINT BALL

$

$

Not available

502 40 91-01

Husqvarna 502409101

DUST PROTECTOR

$

$

Not available

502 40 65-13

Husqvarna 502406513

HOSE 3 M

Note: 3M

$

$

Not available

723 12 84-55

Husqvarna 723128455

SCREW

$

$

Not available

502 40 89-01

Husqvarna 502408901

O-RING

$

$

Not available

502 42 22-02

Husqvarna 502422202

CLAMP

$

$

Not available

502 40 65-15

Husqvarna 502406515

HOSE 5 M

Note: 5M

$

$

Not available

502 40 40-01

Husqvarna 502404001

LOOP

$

$

Not available

502 42 57-01

Husqvarna 502425701

SOCKET JOINT

$

$

Not available

503 22 66-01

Husqvarna 503226601

NUT

$6.49

$

Usually ships in 3-10 days

0

503 22 65-04

Husqvarna 503226504

NUT

$6.49

$

In Stock, Qty 20+

0

502 40 89-08

Husqvarna 502408908

O-RING

$

$

Not available

502 42 18-01

Husqvarna 502421801

HOSE CONNECTION

$

$

Not available

503 21 06-22

Husqvarna 503210622

SCREW

$6.99

$

In Stock, Qty 9

0

502 40 63-01

Husqvarna 502406301

WORM WHEEL

$

$

Not available

502 40 94-81

Husqvarna 502409481

CLAMP

$

$

Not available

502 42 55-03

Husqvarna 502425503

RETAINING RING

$

$

Not available

502 40 60-01

Husqvarna 502406001

CHAIN TENSIONER

$

$

Not available

502 40 45-01

Husqvarna 502404501

GASKET

$

$

Not available

502 42 53-03

Husqvarna 502425303

WINGNUT

$

$

Not available

502 26 61-01

Husqvarna 502266101

HOOK

$

$

Not available

502 40 72-16

Husqvarna 502407216

CLAMP

$

$

Not available

503 20 20-05

Husqvarna 503202005

SCREW

$

$

Not available

502 42 59-01

Husqvarna 502425901

LOCK NUT

$

$

Not available

502 42 32-01

Husqvarna 502423201

HOSE GUARD COMPLETE

$

$

Not available

503 30 68-32

Husqvarna 503306832

NEEDS DESCRIPTION

Note: 3/8 S36 EM 32 DL

$

$

Currently unavailable

725 63 25-55

Husqvarna 725632555

SCREW

$

$

Not available

502 42 80-01

Husqvarna 502428001

STUD TOP EXTENSION

$

$

Not available

502 42 83-01

Husqvarna 502428301

BALL JOINT

Note: 2-3-4 M

$

$

Not available
