250 R - Husqvarna String Trimmer (2001-05) Ignition/Flywheel Parts Diagram

String Trimmer

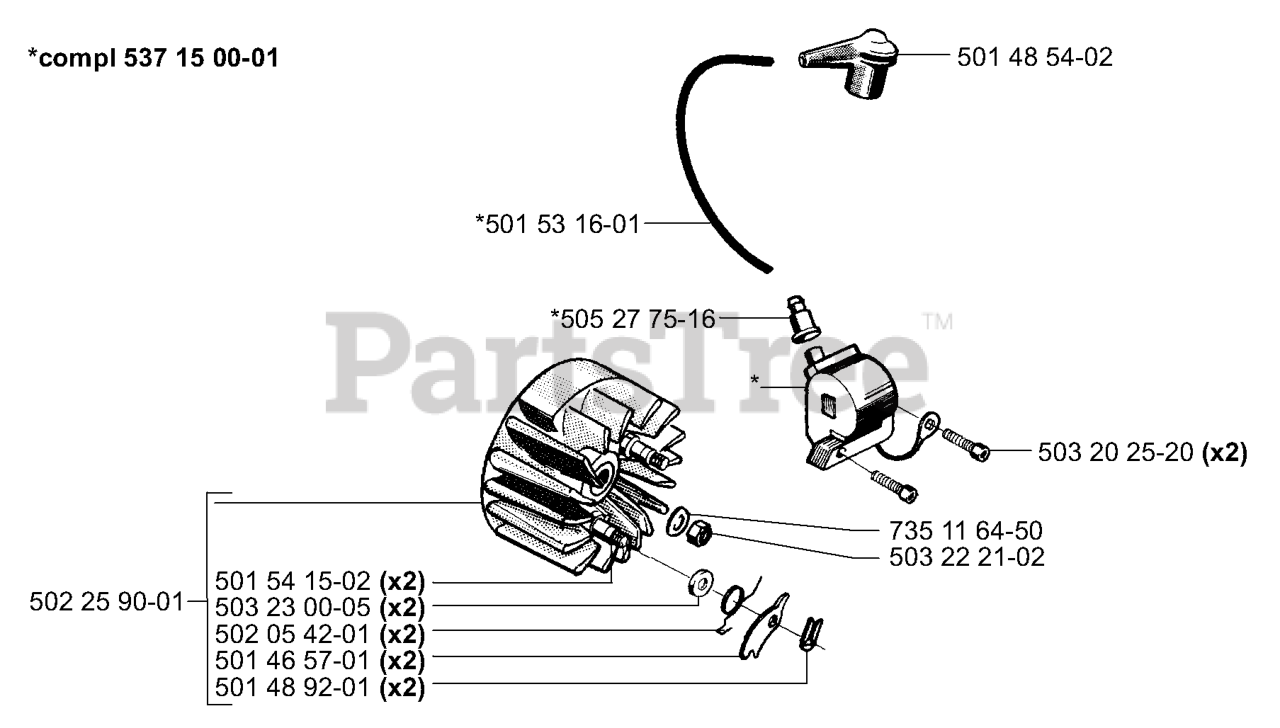

Ignition/Flywheel Parts Diagram

  • Title

537150001

Husqvarna 537150001

IGNITION MODULE
(Superseded to 544018601)

$

$

Not available

502259001

Husqvarna 502259001

Flywheel

$

$

Not available

501541502

Husqvarna 501541502

DRIVE PIN
(Superseded to 501541503)

$

$

Not available

503230005

Husqvarna 503230005

WASHER 6.5X11

$4.99

$

In Stock, only 1 left!

0

502054201

Husqvarna 502054201

SPRING

$

$

Not available

501465701

Husqvarna 501465701

PAWL

$

$

Not available

501489201

Husqvarna 501489201

RETAINING RING

$6.99

$

Usually ships in 3-10 days

0

503222102

Husqvarna 503222102

LOCK NUT M8

$3.99

$

Usually ships in 3-10 days

0

735116450

Husqvarna 735116450

Spring Washer 8.4x15

$3.49

$

In Stock, only 1 left!

0

503202520

Husqvarna 503202520

SCREW

$3.99

$

In Stock, only 4 left!

0

501485402

Husqvarna 501485402

SPARK PLUG CONN. KIT

$16.99

$

In Stock, Qty 11

0

501531601

Husqvarna 501531601

CABLE 13 3/8"IN

$

$

Not available

505277516

Husqvarna 505277516

INSULATING CAP

$

$

Not available
