250 R - Husqvarna String Trimmer (SN: 19954000001 - 19973100000) CYLINDER PISTON Parts Diagram

String Trimmer

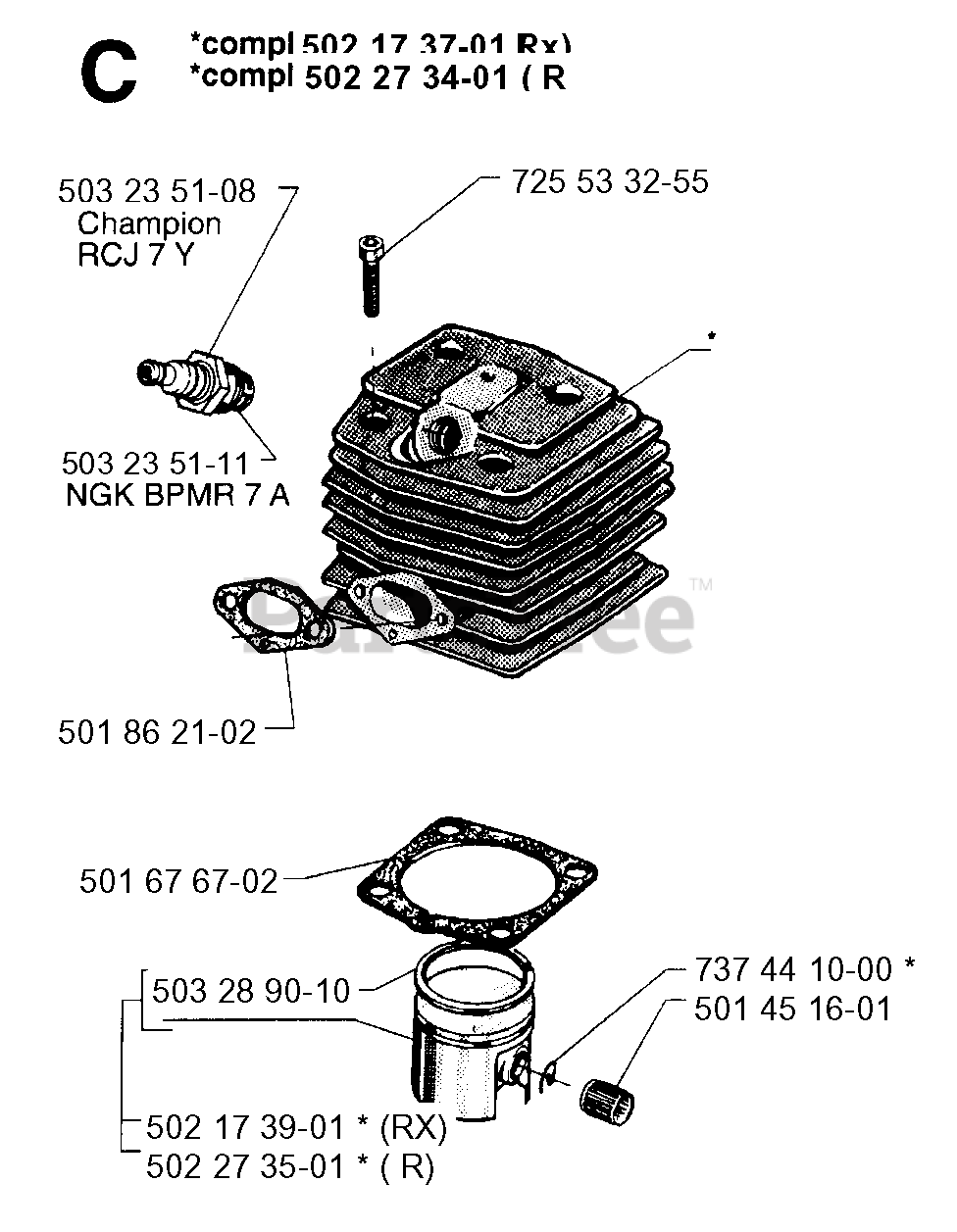

CYLINDER PISTON Parts Diagram

  • Title

501 86 21-02

Husqvarna 501862102

GASKET

$

$

Not available

725 53 32-55

Husqvarna 725533255

SCREW MC6S 5X22

$

$

Not available

502 17 39-01

Husqvarna 502173901

PISTON

Note: RX

$

$

Not available

503 23 51-08

Husqvarna 503235108

SPARK PLUG RCJ7Y
(Superseded to 503235109)

Note: CHAMPION RCJ 7 Y

$4.49

$

Usually ships in 3-10 days

0

501 45 16-01

Husqvarna 501451601

SUPPORT BUSHING
(Superseded to 503256302)

$28.99

$

In Stock, only 1 left!

0

737 44 10-00

Husqvarna 737441000

LOCKING RING

$3.49

$

In Stock, Qty 8

0

503 23 51-11

Husqvarna 503235111

SPARK PLUG M14X1.25 NGK BPMR7A

Note: NGK BPMR 7 A

$3.99

$

In Stock, Qty 20+

0

502 17 37-01

Husqvarna 502173701

CYLINDER W/PISTON
(Superseded to 502273401)

Note: RX

$

$

Not available

502 27 35-01

Husqvarna 502273501

PISTON ASSY

Note: R

$

$

Not available

501 67 67-02

Husqvarna 501676702

GASKET
(Superseded to 501676703)

$

$

Not available

502 27 34-01

Husqvarna 502273401

CYLINDER ASSY

Note: R

$

$

Not available

503 28 90-10

Husqvarna 503289010

PISTON RING

$30.99

$

In Stock, only 1 left!

0
