250 RX - Husqvarna String Trimmer (SN: 19944000001 - 19954000000) MUFFLER Parts Diagram

String Trimmer

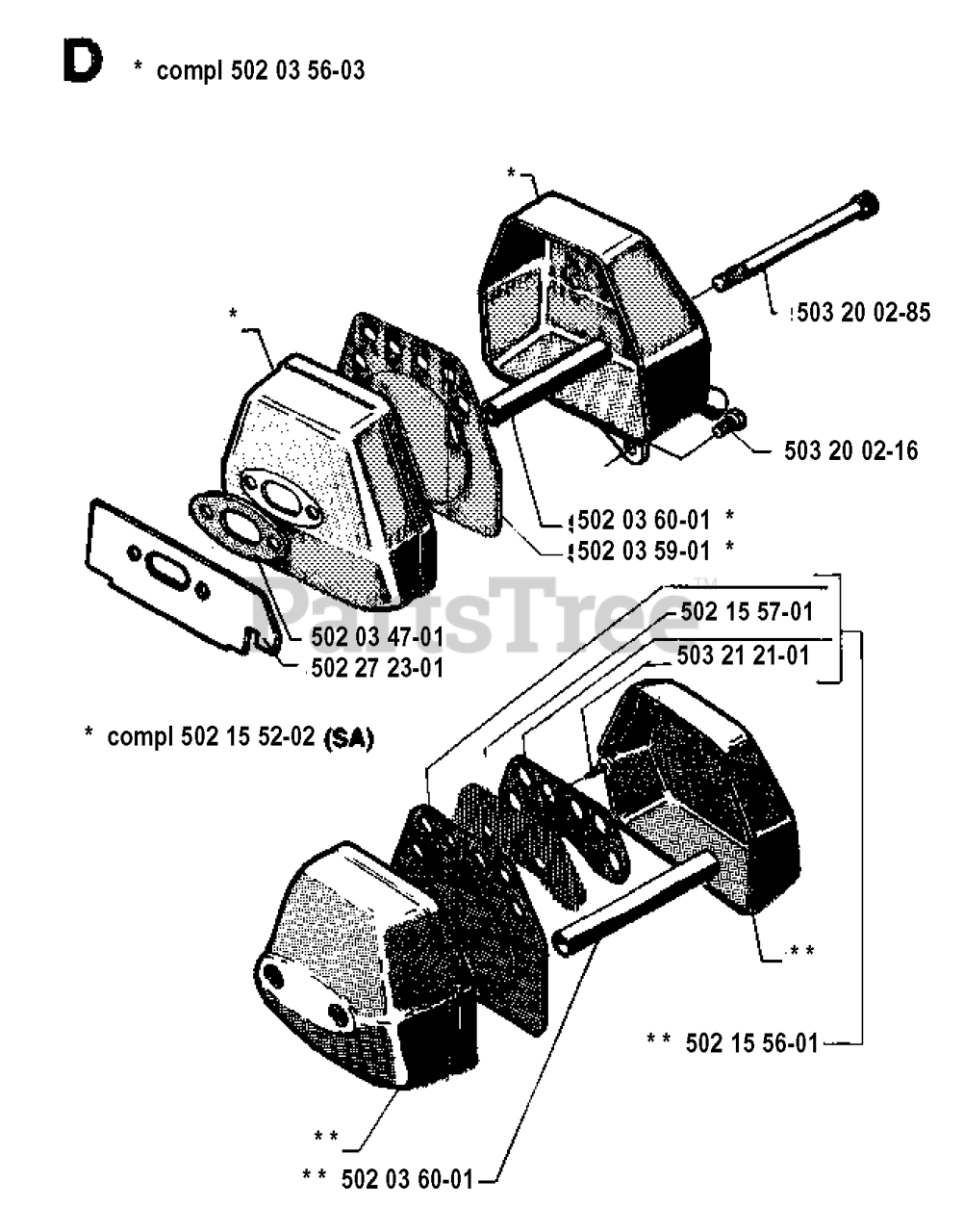

MUFFLER Parts Diagram

  • Title

503 20 02-16

Husqvarna 503200216

SCREW

$3.99

$

In Stock, Qty 11

0

502 15 56-01

Husqvarna 502155601

Plate Kpl.

$

$

Not available

502 15 57-01

Husqvarna 502155701

SCREEN
(Superseded to 502155702)

$

$

Not available

502 03 47-01

Husqvarna 502034701

GASKET EXHAUST

$

$

Not available

502 15 52-02

Husqvarna 502155202

SILENCER
(Superseded to 537150701)

Note: SA

$

$

Not available

503 20 02-85

Husqvarna 503200285

BOLT
(Superseded to 503202985)

$

$

Not available

503 21 21-01

Husqvarna 503212101

SCREW CSS B8X10
(Superseded to 503211103)

$

$

Not available

502 03 59-01

Husqvarna 502035901

PLATE

$

$

Not available

502 03 60-01

Husqvarna 502036001

SPACER

$

$

Not available

502 27 23-01

Husqvarna 502272301

SEALING PLATE
(Superseded to 537043601)

$

$

Not available

502 03 56-03

Husqvarna 502035603

SILENCER
(Superseded to 537150701)

$

$

Not available
