250 RX - Husqvarna String Trimmer (SN: 19954000001 - 19973100000) HANDLE & CONTROLS Parts Diagram

String Trimmer

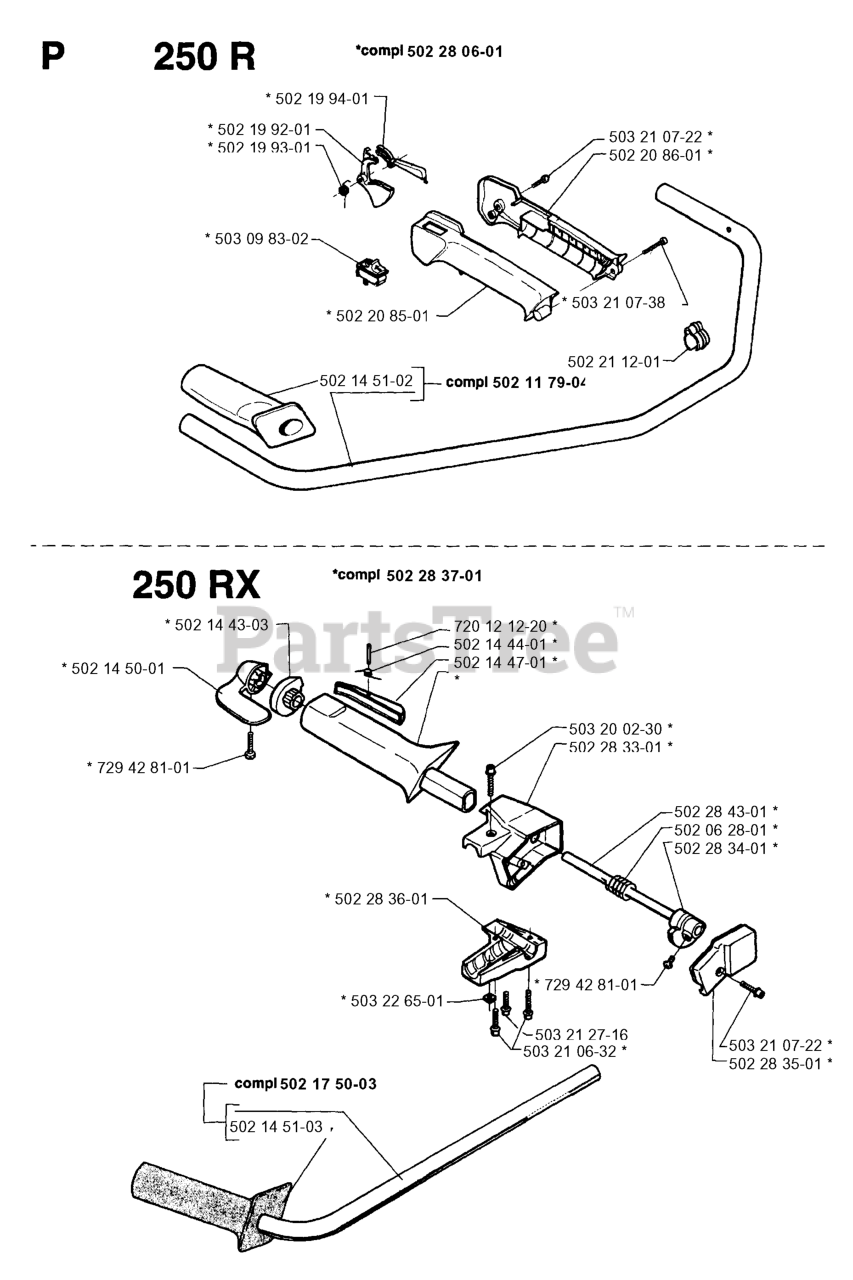

HANDLE & CONTROLS Parts Diagram

  • Title

502 14 43-03

Husqvarna 502144303

BUSHING
(Superseded to 502144306)

$

$

Not available

720 12 12-20

Husqvarna 720121220

PIN

$

$

Not available

503 21 07-38

Husqvarna 503210738

SCREW

$

$

Not available

503 09 83-02

Husqvarna 503098302

SWITCH
(Superseded to 503718201)

$14.99

$

In Stock, Qty 9

0

729 42 81-01

Husqvarna 729428101

SCREW

$

$

Not available

503 21 07-22

Husqvarna 503210722

SCREW
(Superseded to 503216722)

$3.49

$

In Stock, Qty 10

0

502 14 44-01

Husqvarna 502144401

SPRING

$

$

Not available

502 11 79-04

Husqvarna 502117904

HANDLE
(Superseded to 502117906)

$

$

Not available

502 21 12-01

Husqvarna 502211201

GROMMET

$3.49

$

In Stock, only 2 left!

0

502 19 93-01

Husqvarna 502199301

SPRING
(Superseded to 503794101)

$3.49

$

In Stock, only 3 left!

0

502 20 85-01

Husqvarna 502208501

HANDLE LEFT
(Superseded to 502208507)

$28.99

$

Usually ships in 3-10 days

0

502 14 50-01

Husqvarna 502145001

TRIGGER

$

$

Not available

502 17 50-03

Husqvarna 502175003

HANDLE
(Superseded to 502175005)

$68.99

$

Usually ships in 3-10 days

0

503 22 65-01

Husqvarna 503226501

SQUARE NUT M5
(Superseded to 503226504)

$5.49

$

In Stock, Qty 20+

0

503 21 27-16

Husqvarna 503212716

SCREW

$3.49

$

In Stock, Qty 20+

0

502 19 92-01

Husqvarna 502199201

THROTTLE CONTROL

$7.99

$

In Stock, only 2 left!

0

502 14 51-03

Husqvarna 502145103

HANDLE
(Superseded to 502145102)

$22.99

$

Usually ships in 3-10 days

0

503 20 02-30

Husqvarna 503200230

SCREW

$3.49

$

In Stock, only 4 left!

0

502 19 94-01

Husqvarna 502199401

THROTTLE CATCH

$6.99

$

In Stock, only 2 left!

0

502 28 37-01

Husqvarna 502283701

THROTTLE COMPLETE
(Superseded to 502283705)

$

$

Not available

502 28 34-01

Husqvarna 502283401

PULLEY

$

$

Not available

502 14 51-02

Husqvarna 502145102

HANDLE

$22.99

$

Usually ships in 3-10 days

0

502 28 36-01

Husqvarna 502283601

RETAINER
(Superseded to 502283604)

$

$

Not available

502 06 28-01

Husqvarna 502062801

SPRING

$11.99

$

Usually ships in 3-10 days

0

502 28 33-01

Husqvarna 502283301

TRIGGER HOUSING
(Superseded to 502283304)

$

$

Not available

502 28 35-01

Husqvarna 502283501

COVER
(Superseded to 502283503)

$

$

Not available

503 21 06-32

Husqvarna 503210632

SCREW

$

$

Not available

502 14 47-01

Husqvarna 502144701

CATCH

$

$

Not available

502 28 43-01

Husqvarna 502284301

PIPE

$

$

Not available

502 20 86-01

Husqvarna 502208601

HANDLE RIGHT
(Superseded to 502208608)

$

$

Not available

502 28 06-01

Husqvarna 502280601

HANDLE ASSY
(Superseded to 502280614)

$

$

Not available
