250 (UT-10681) - Homelite Chainsaw Handle & Chain Brake Parts Diagram

Chainsaw

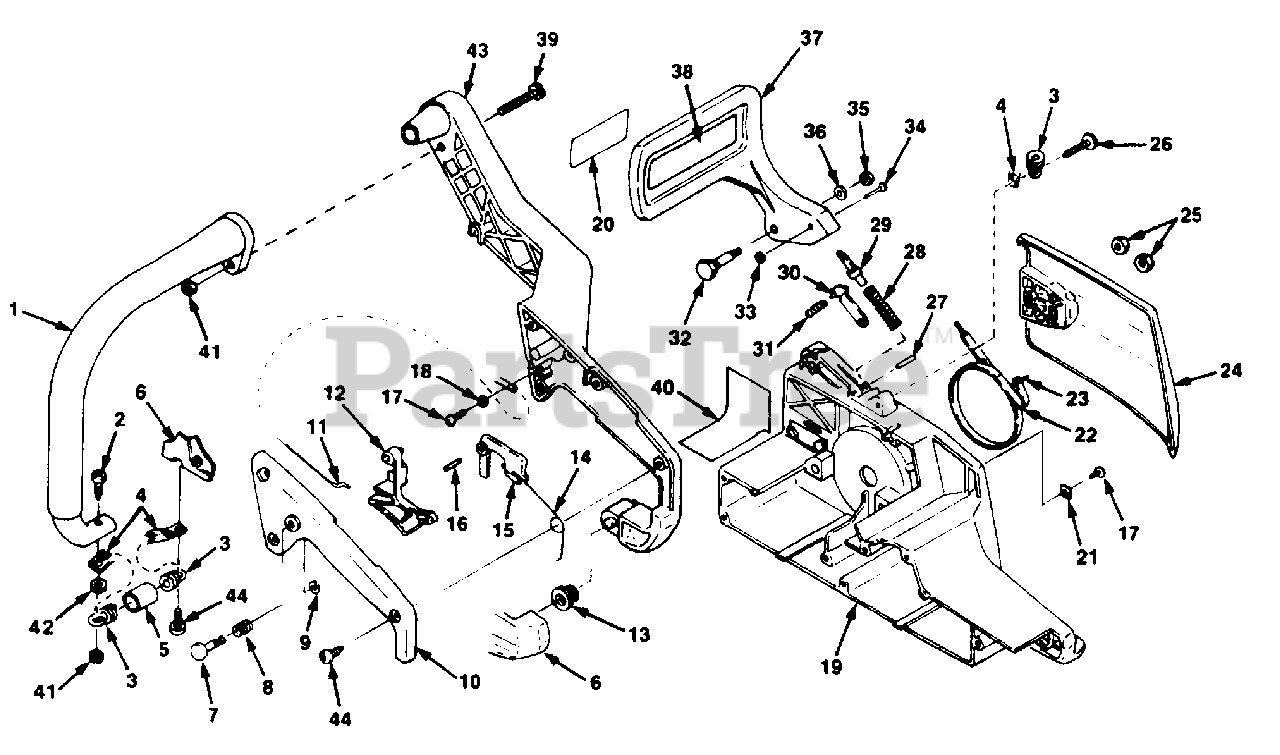

Handle & Chain Brake Parts Diagram

  • Title

1

Homelite A02790

HANDLE BAR

$

$

Currently unavailable

2

Homelite 96620

SCREW

$2.99

$

Usually ships in 3-7 days

0

3

Homelite 01168

SPRING

$6.49

$

Usually ships in 3-7 days

0

4

Homelite 01812A

RETAINER- Spring
(Superseded to 631050001)

$

$

Not available

5

Homelite 01813

SLEEVE

$

$

Not available

6

Homelite 002071A

HOUSING- Starter side
(Superseded to 002071B)

$

$

Currently unavailable

7

Homelite 95671

PIN-Throttle lock
(Superseded to UP05997)

$2.49

$

In Stock, only 2 left!

0

8

Homelite 95020

SPRING- Compression
(Superseded to UP04716)

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 58409

RING- Retaining

$4.49

$

Usually ships in 3-7 days

0

10

Homelite 00210A

COVER- Rear handle

$

$

Currently unavailable

11

Homelite 00997A

CABLE- Throttle

$

$

Currently unavailable

12

Homelite 00211A

TRIGGER-Throttle

$

$

Currently unavailable

13

Homelite 02508

ISOLATOR
(Superseded to UP07433)

$

$

Not available

14

Homelite 01177A

SPRING- Throttle

$

$

Not available

15

Homelite 93385A

LOCK- Throttle

$

$

Not available

16

Homelite 70253

PIN- Dowel

$

$

Not available

17

Homelite 82513

SCREW

$1.49

$

In Stock, Qty 5

0

18

Homelite 84123

WASHER

$

$

Not available

19

Homelite 00206C

HOUSING- Drive side

$

$

Currently unavailable

20

Homelite 02561

LABLE- Kick back
(Superseded to 02561A)

$

$

Not available

21

Homelite 01180

RETAINER

$

$

Not available

22

Homelite A98298A

BRAKE BAND ASSEMBLY

$

$

Currently unavailable

23

Homelite 98447A

PIN

$

$

Not available

24

Homelite A00226

COVER- Drive case
(Superseded to A00226A)

$

$

Currently unavailable

25

Homelite 81196

NUT- Hex
(Superseded to 671076001)

$1.49

$

In Stock, Qty 5

0

26

Homelite 82546

SCREW- (8-16 x 5/8")
(Superseded to 660675001)

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 98456

PIN

$

$

Not available

28

Homelite 00890

SPRING- Compression
(Superseded to 984679001)

$

$

Not available

29

Homelite A00888A

ADJUSTER- Brake

$

$

Currently unavailable

30

Homelite A98317A

BRAKE LATCH ASSEMBLY

$

$

Not available

31

Homelite 98308

SPRING- Coil
(Superseded to 984679001)

$

$

Not available

32

Homelite 98461

SCREW- Shoulder

$

$

Not available

33

Homelite 01820

RING- Retainer

$

$

Not available

34

Homelite 98422A

PIN

$

$

Currently unavailable

35

Homelite 98457

NUT- (M5)

$

$

Not available

36

Homelite 83203

WASHER

$

$

Not available

37

Homelite 00805A

GUARD- Hand

$

$

Currently unavailable

38

Homelite 02661

DECAL- Safety

$

$

Not available

39

Homelite 82218

SCREW

$

$

Not available

40

Homelite 02743

DEFLECTOR- Heat

$

$

Currently unavailable

41

Homelite 81261

NUT- Hex

$

$

Not available

42

Homelite 84008

WASHER
(Superseded to 671080001)

$1.49

$

Usually ships in 3-7 days

0

43

Homelite 00209B

HANDLE

$

$

Currently unavailable

44

Homelite 82546

SCREW- (8-16 x 5/8")
(Superseded to 660675001)

$1.49

$

Usually ships in 3-7 days

0
