250 (UT-10681) - Homelite Chainsaw Housing & Tank Assys Parts Diagram

Chainsaw

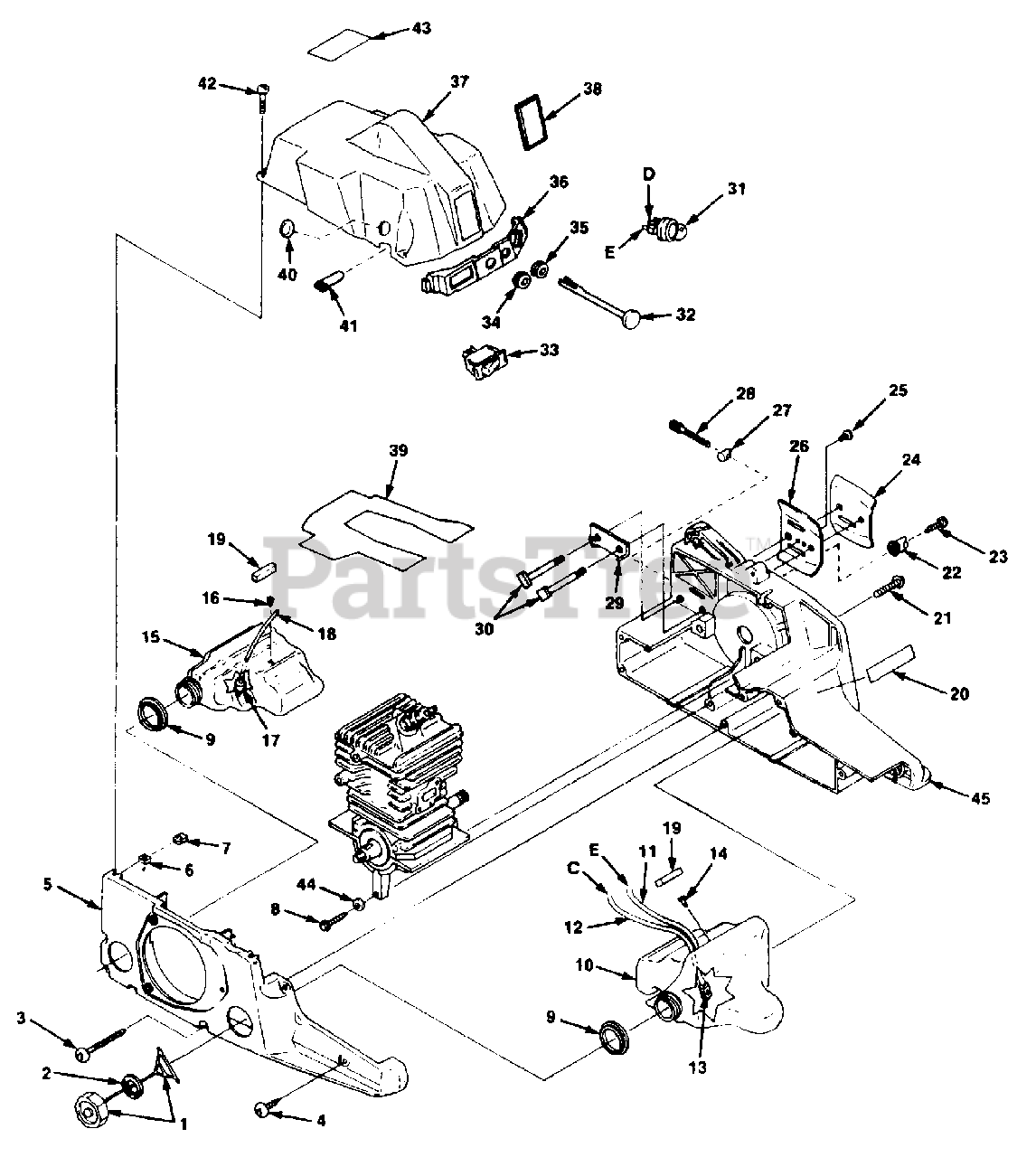

Housing & Tank Assys Parts Diagram

  • Title

1

Homelite A00904

CAP- Tank (w/retainer)

$

$

Currently unavailable

2

Homelite 02762

GASKET
(Superseded to UP07434)

$

$

Not available

3

Homelite 82545

SCREW

$

$

Not available

4

Homelite 82546

SCREW- (8-16 x 5/8")
(Superseded to 660675001)

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 002071A

HOUSING- Starter side
(Superseded to 002071B)

$

$

Currently unavailable

6

Homelite 70810

NUT- Square (10-24)
(Superseded to UP06986)

$

$

Not available

7

Homelite 95337

NUT- Retainer

$

$

Not available

8

Homelite 82558

SCREW- Thd. forming

$

$

Not available

9

Homelite 00993

SEAL- Tank

$

$

Not available

10

Homelite A01811

TANK- Fuel
(Superseded to A06637)

$

$

Not available

11

Homelite 7031021

TUBING- Rubber (5 1/4")
(Superseded to 0745422)

$5.49

$

Usually ships in 3-7 days

0

12

Homelite 7031036

TUBING- Rubber (9")
(Superseded to UP06561)

$

$

Not available

13

Homelite 49422

FILTER- Fuel
(Superseded to PS03380)

$

$

Not available

14

Homelite 69451

VALVE- Check

$

$

Not available

15

Homelite A01810A

TANK- Oil

$

$

Currently unavailable

16

Homelite 69451

VALVE- Check

$

$

Not available

17

Homelite A68593

FILTER- Oil

$

$

Not available

18

Homelite 7031027

TUBING- Rubber

$

$

Not available

19

Homelite 69443

FILTER- Valve

$

$

Not available

20

Homelite 01805

DECAL- Instruction
(Superseded to 01805A)

$

$

Not available

21

Homelite 80864

SCREW
(Superseded to 808641)

$

$

Not available

22

Homelite 95212

STOP- Chain

$

$

Not available

23

Homelite 82537

SCREW

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 01170

PLATE- Guide bar (outer)
(Superseded to UP06590)

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 82513

SCREW

$1.49

$

In Stock, Qty 5

0

26

Homelite 98278

PLATE- Guide bar (inner)

$

$

Not available

27

Homelite 651121

PIN- Guide bar adjusting
(Superseded to 651121A)

$

$

Not available

28

Homelite 03139

SCREW- Guide bar adjusting
(Superseded to UP06838)

$2.99

$

Usually ships in 3-7 days

0

29

Homelite 01809A

PLATE- Guide bar stud

$

$

Currently unavailable

30

Homelite 03132

BOLT- Guide bar

$

$

Not available

31

Homelite 01183

BULB- Primer bulb
(Superseded to 300780002)

$

$

Not available

32

Homelite 01527A

ROD- Choke

$

$

Not available

33

Homelite 01802

SWITCH
(Superseded to UP06786)

$

$

Not available

34

Homelite 69889

BOOT- Throttle rod

$

$

Not available

35

Homelite 64862

GROMMET
(Superseded to 570219001)

$

$

Not available

36

Homelite 01169

PANEL- Control

$

$

Not available

37

Homelite A02581A

COVER- Cylinder
(Superseded to A02581C)

$

$

Not available

38

Homelite 01173

SCREEN- Air inlet

$

$

Not available

39

Homelite 01181

FOAM- Adhesive

$

$

Currently unavailable

40

Homelite 01179A

PLUG- Idle speed

$

$

Not available

41

Homelite 01172

GROMMET- Hi/Lo

$

$

Not available

42

Homelite 95792

SCREW- Rd. hd.

$

$

Not available

43

Homelite 02506

LABEL- Warning

$

$

Not available

44

Homelite 83056

WASHER- Lock

$

$

Not available

45

Homelite 00206C

HOUSING- Drive side

$

$

Currently unavailable
