250 (UT-10681) - Homelite Chainsaw Starter & Engine Assy Parts Diagram

Chainsaw

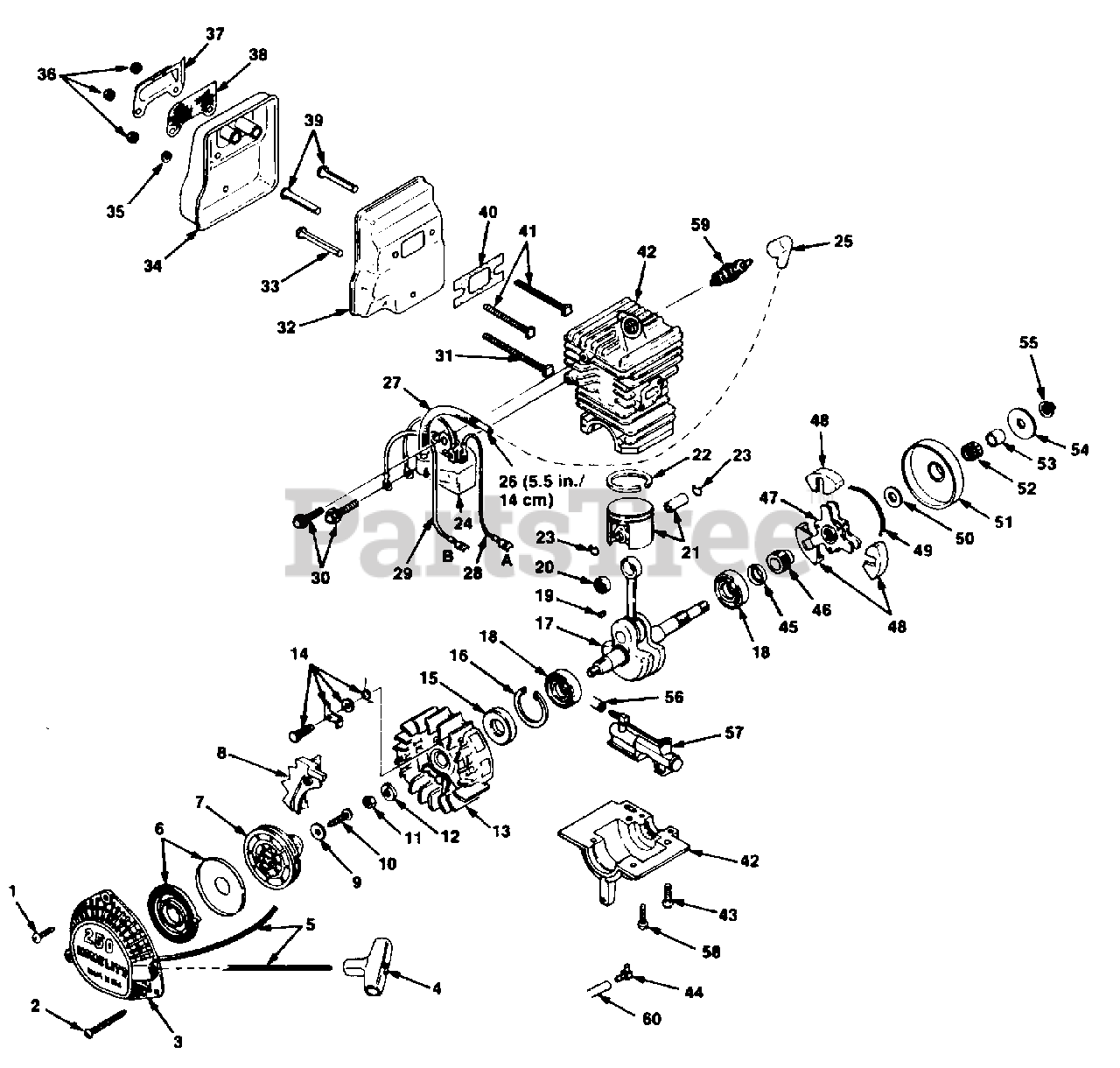

Starter & Engine Assy Parts Diagram

  • Title

1

Homelite 82546

SCREW- (8-16 x 5/8")
(Superseded to 660675001)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 82544

SCREW- (8-16 x 2")

$

$

Not available

3

Homelite A02580A

STARTER HOUSING w/Decal

$

$

Currently unavailable

4

Homelite 02264

GRIP-Starter
(Superseded to UP03832)

$

$

Not available

5

Homelite 97899

ROPE
(Superseded to 9789901)

$2.49

$

In Stock, only 2 left!

0

6

Homelite A97908

SPRING & CONTAINER
(Superseded to 300982011)

$

$

Not available

7

Homelite 97768A

PULLEY

$

$

Currently unavailable

8

Homelite 002071A

HOUSING- Starter side
(Superseded to 002071B)

$

$

Currently unavailable

9

Homelite 94062

WASHER- Retainer

$

$

Not available

10

Homelite 93417

SCREW- Thd. forming (10-24 x 5/8")
(Superseded to 82409)

$

$

Not available

11

Homelite 81124A

NUT- Jam

$

$

Not available

12

Homelite 83102

WASHER- Lock (3/8")

$

$

Not available

13

Homelite A00994B

ROTOR & STARTER PAWL ASSY.
(Superseded to A00994C)

$

$

Not available

14

Homelite A02774

STARTER PAWL

$

$

Currently unavailable

15

Homelite 98197

SEAL- Shaft
(Superseded to UP06470)

$

$

Not available

16

Homelite 289221

RING- Retaining

$

$

Not available

17

Homelite A02573

CRANKSHAFT

$

$

Currently unavailable

18

Homelite 98797

BEARING- Ball

$

$

Not available

19

Homelite 75078

KEY- Woodruff
(Superseded to UP07068)

$

$

Not available

20

Homelite 68512

BEARING- Roller
(Superseded to UP05641)

$14.99

$

Usually ships in 3-7 days

0

21

Homelite A02579

PISTON & PIN

$

$

Currently unavailable

22

Homelite 01545

RING- Piston
(Superseded to 01545B)

$

$

Not available

23

Homelite 64813

RING- Retainer

$5.99

$

Usually ships in 3-7 days

0

24

Homelite A01546

MODULE- Ignition

$

$

Not available

25

Homelite A02597

BOOT- Spark plug

$

$

Not available

26

Homelite 69326

LEAD- Hi Tension

$

$

Not available

27

Homelite 95098

INSULATOR- Lead

$

$

Not available

28

Homelite A01822A

WIRE- Ignition

$

$

Currently unavailable

29

Homelite A01821A

WIRE- Ground

$

$

Not available

30

Homelite 88052

SCREW- (10-24 x 7/8")

$5.99

$

Usually ships in 3-7 days

0

31

Homelite 02176

SCREW- Square hd. (10-32 x 2 1/2")

$

$

Not available

32

Homelite A01538

BODY- Muffler
(Superseded to A06631A)

$72.99

$

Usually ships in 3-7 days

0

33

Homelite 9398311

SPACER- Muffler

$

$

Currently unavailable

34

Homelite A01539A

COVER- Muffler
(Superseded to A06631A)

$72.99

$

Usually ships in 3-7 days

0

35

Homelite 84003

WASHER- Flat #10

$2.49

$

Usually ships in 3-7 days

0

36

Homelite 81206

NUT- Hex 10-32
(Superseded to 671079001)

$1.49

$

In Stock, Qty 6

0

37

Homelite 01531A

COVER- Exhaust

$

$

Not available

38

Homelite 01532

SCREEN- Spark arrestor

$

$

Not available

39

Homelite 9398310

SPACER- Muffler

$

$

Currently unavailable

40

Homelite 01543

GASKET- Muffler
(Superseded to 01543B)

$

$

Not available

41

Homelite 02509

SCREW- (10-32 x 2 1/4")

$

$

Not available

42

Homelite A02577A

CYLINDER & CRANKCASE

$

$

Currently unavailable

43

Homelite 80891

SCREW-Hex hd.

$

$

Not available

44

Homelite 98109

FITTING- Oil tube

$

$

Not available

45

Homelite 93858

SEAL- Crankshaft
(Superseded to UP07439)

$

$

Not available

46

Homelite 00229

WORM- Left hand

$

$

Not available

47

Homelite A00769

SPIDER- Clutch

$

$

Not available

48

Homelite 98292

SHOE- Clutch

$10.99

$

Usually ships in 3-7 days

0

49

Homelite 98453

SPRING- Clutch
(Superseded to UP07449)

$

$

Not available

50

Homelite 65027

WASHER- Thrust

$

$

Not available

51

Homelite 00996A

SPROCKET & DRUM

$

$

Not available

52

Homelite 64333

BEARING- Needle

$

$

Not available

53

Homelite 69423

RACE- Inner

$

$

Not available

54

Homelite 65064

WASHER- Thrust

$

$

Not available

55

Homelite 81255

NUT- Hex Lock 3/8-24

$

$

Not available

56

Homelite 02548

LINE- Oil

$

$

Not available

57

Homelite A02802A

PUMP- Oil
(Superseded to UP06621)

$95.99

$

Usually ships in 3-7 days

0

58

Homelite 82146

SCREW
(Superseded to UP03887)

$1.49

$

Usually ships in 3-7 days

0

59

Homelite 93561S

PLUG- Spark
(Superseded to D93561)

$

$

Not available

60

Homelite 7031027

TUBING- Rubber

$

$

Not available
