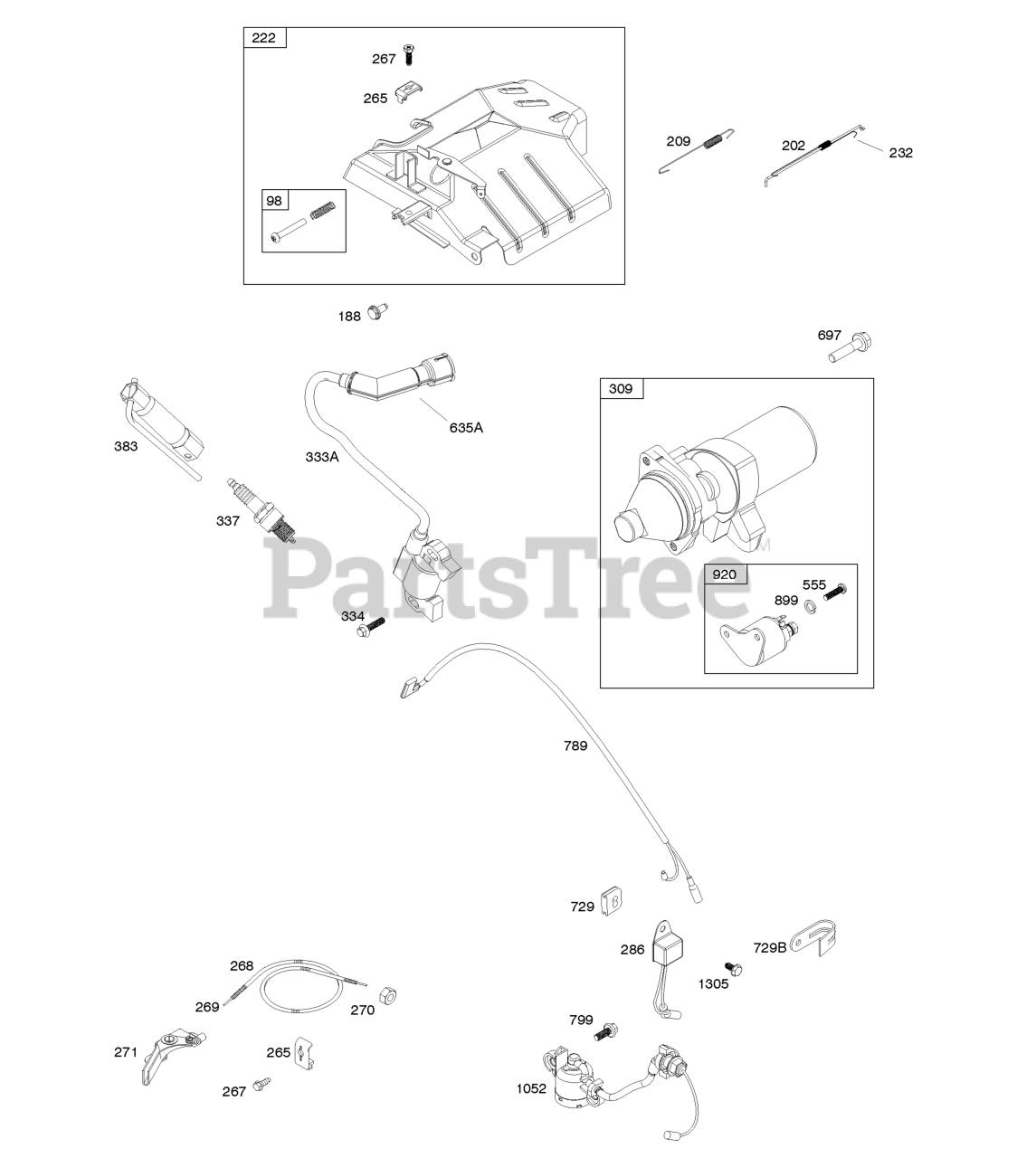

250035-0111-B1 - Briggs & Stratton Horizontal Engine Controls, Electrical System, Governor Spring, Ignition Parts Diagram

Horizontal Engine

Controls, Electrical System, Governor Spring, Ignition Parts Diagram

  • Title

98

Briggs & Stratton 797752

Kit-Idle Speed
(Superseded to 592978)

$11.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 798618

SCREW

Note: (Control Bracket)

$3.99

$

Usually ships in 2-12 days

0

202

Briggs & Stratton 797810

Link-Mechanical Governor

$8.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 797843

Spring-Governor

$7.49

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 797751

Bracket-Control

$45.99

$

Usually ships in 2-12 days

0

232

Briggs & Stratton 797809

SPRING, Governor Link

$10.99

$

In Stock, only 1 left!

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

Usually ships in 2-12 days

0

267

Briggs & Stratton 699492

SCREW

Note: (Casing Clamp)

$3.99

$

In Stock, only 2 left!

0

268

Briggs & Stratton 691025

CASING, Control Wire

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

286

Briggs & Stratton 797772

Module-Oil Sensor
(Superseded to 84004388)

$56.99

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 797775

Motor-Starter

$190.99

$

Usually ships in 2-12 days

0

333A

Briggs & Stratton 798616

Armature-Magneto

$78.99

$

In Stock, only 1 left!

0

334

Briggs & Stratton 797655

SCREW

Note: (Magneto Armature)

$4.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 798615

PLUG, Spark

$7.49

$

In Stock, Qty 8

0

383

Briggs & Stratton 19605S

Wrench-Spark Plug

$

$

Not available

555

Briggs & Stratton 799532

Screw

Note: (Starter Solenoid)

$3.99

$

In Stock, only 2 left!

0

635A

Briggs & Stratton 797685

BOOT, Spark Plug

$29.99

$

Usually ships in 2-12 days

0

697

Briggs & Stratton 797776

SCREW

Note: (Drive Cap)

$4.49

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 797750

CLIP, Wire

$5.49

$

Usually ships in 2-12 days

0

729B

Briggs & Stratton 592311

Clip-Wire

$4.49

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 797856

Harness-Wiring

$16.99

$

Usually ships in 2-12 days

0

799

Briggs & Stratton 798975

SCREW

Note: (Oil Sensor)

$3.99

$

Usually ships in 2-12 days

0

899

Briggs & Stratton 799642

Washer

Note: (Starter Solenoid)

$3.99

$

In Stock, only 1 left!

0

920

Briggs & Stratton 799481

Solenoid-Starter

$47.99

$

In Stock, only 2 left!

0

1052

Briggs & Stratton 797771

SENSOR, Oil

$61.99

$

Usually ships in 2-12 days

0

1305

Briggs & Stratton 798618

SCREW

Note: (Oil Sensor Module)

$3.99

$

Usually ships in 2-12 days

0
