25066 (81007) - Snapper 25" Rear-Engine Riding Mower, 6hp Bag-N-Wagon, Frame & Canopy Parts Diagram

25" Rear-Engine Riding Mower, 6hp

Bag-N-Wagon, Frame & Canopy Parts Diagram

  • Title

1

Snapper 60302

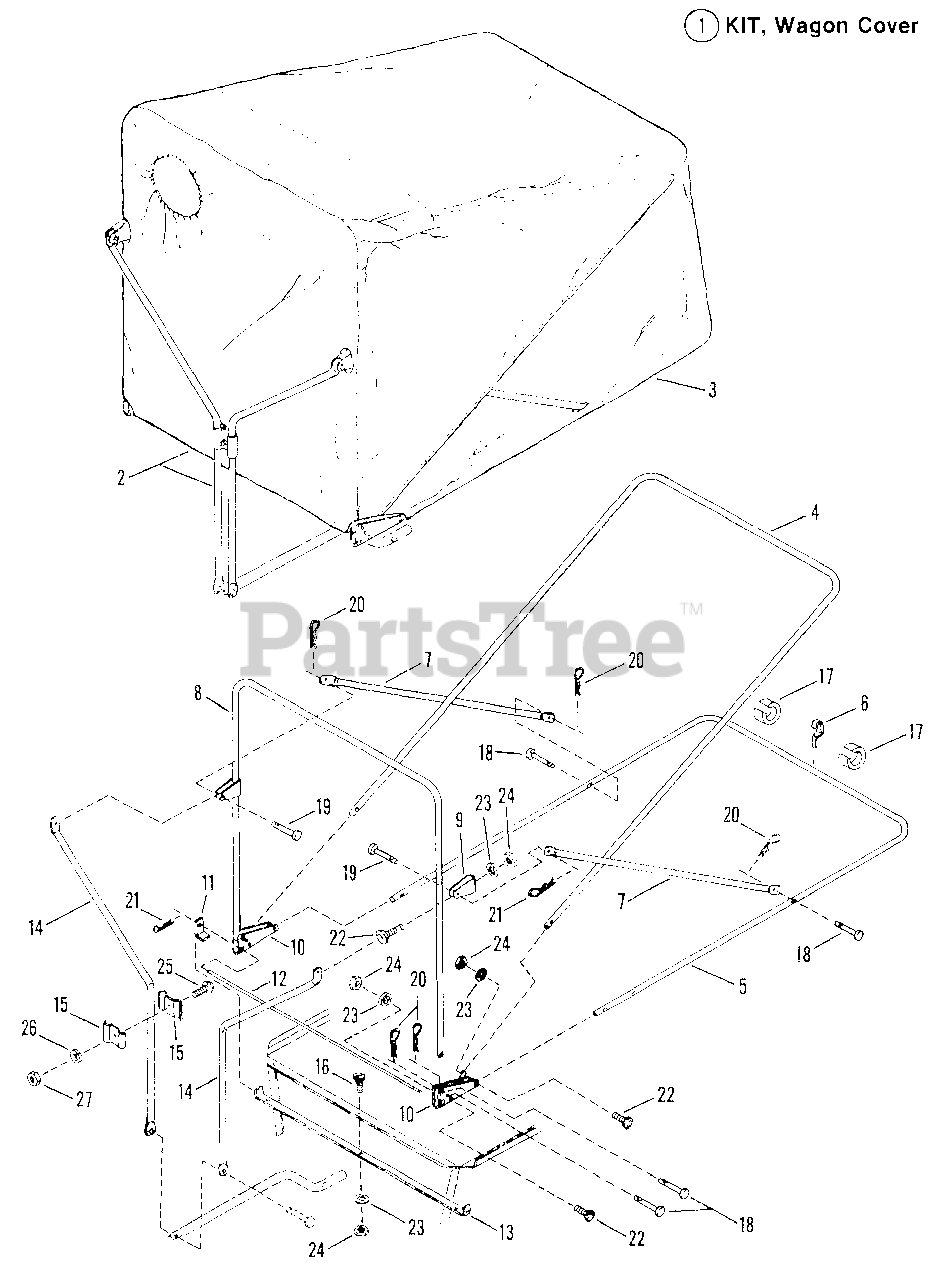

KIT, Wagon Cover

Note: (Also Part of 6-0300, P. 9.6);(Includes items 2 thru 27)

$

$

Currently unavailable

2

Snapper 7060964

FRAME/CANOPY ASSEMBLY

Note: Was 50806 (Includes items 3 thru 27)

$

$

Currently unavailable

3

Snapper 7023818

CANOPY, Cloth Only

Note: Was 12396

$

$

Not available

4

Snapper 7031943

FRAME, Center
(Superseded to 7031943YP)

$36.99

$

Usually ships in 2-12 days

0

5

Snapper 7031945

FRAME, Base
(Superseded to 7031945YP)

$122.99

$

Usually ships in 2-12 days

0

6

Snapper 7031950

LOCK, Canopy

$

$

Not available

7

Snapper 7031941

BRACE, Frame
(Superseded to 7031941YP)

$29.99

$

Usually ships in 2-12 days

0

8

Snapper 7031944

FRAME, Front
(Superseded to 7031944BMYP)

$

$

Not available

9

Snapper 7031939

CLAMP, Rod
(Superseded to 7031939YP)

$29.99

$

Usually ships in 2-12 days

0

10

Snapper 7031938

BRACKET, Corner
(Superseded to 7031938YP)

$31.99

$

Usually ships in 2-12 days

0

11

Snapper 7031948

CLIP, Hinge
(Superseded to 7031948YP)

$22.99

$

Usually ships in 2-12 days

0

12

Snapper 7021761

PIN, hinge
(Superseded to 7021761YP)

$64.99

$

Usually ships in 2-12 days

0

13

Snapper 7031940

Mount, Hinge
(Superseded to 7031940YP)

$20.99

$

Usually ships in 2-12 days

0

14

Snapper 7031942

STRUT, Frame

$

$

Not available

15

Snapper 7031956

CLAMP, Strut
(Superseded to 7031956YP)

$23.99

$

Usually ships in 2-12 days

0

16

Snapper 7091530

BOLT, 1/4-20x3/4" Carriage
(Superseded to 7091530SM)

Note: Was 90074

$3.99

$

In Stock, Qty 5

0

17

Snapper 7010996

BUSHING, Plastic Wear Pads
(Superseded to 704009)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper 7012393

PIN, 1/4x1 1/8" Clevis
(Superseded to 7012393YP)

$4.49

$

Usually ships in 2-12 days

0

19

Snapper 7029841

PIN, 5/16 Clevis
(Superseded to 704029)

Note: Was 12407

$4.49

$

In Stock, Qty 6

0

20

Snapper 7012431

PIN, 1/4 Hair
(Superseded to 7012431SM)

$2.99

$

In Stock, only 1 left!

0

21

Snapper 7091503

PIN, Hair
(Superseded to 7091503SM)

Note: Was 15067

$3.99

$

In Stock, Qty 20+

0

22

Snapper 7090496

BOLT, 1/4-20x1" Carriage
(Superseded to 7090496YP)

$3.49

$

Usually ships in 2-12 days

0

23

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 13

0

24

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, only 4 left!

0

25

Snapper 7090160

SCREW, 3/8-24x1" Hex Head Cap
(Superseded to 7090160YP)

$3.49

$

In Stock, only 2 left!

0

26

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 10

0

27

Snapper 7091630

NUT, 3/8-24 Hex
(Superseded to 703895)

Note: Was 90155

$4.49

$

In Stock, Qty 8

0

ADAPTER, Air Lift, Grass Tube

Note: (See "Bag-N-Wagon Accessory"); NOT SHOWN

$

$

Not available
