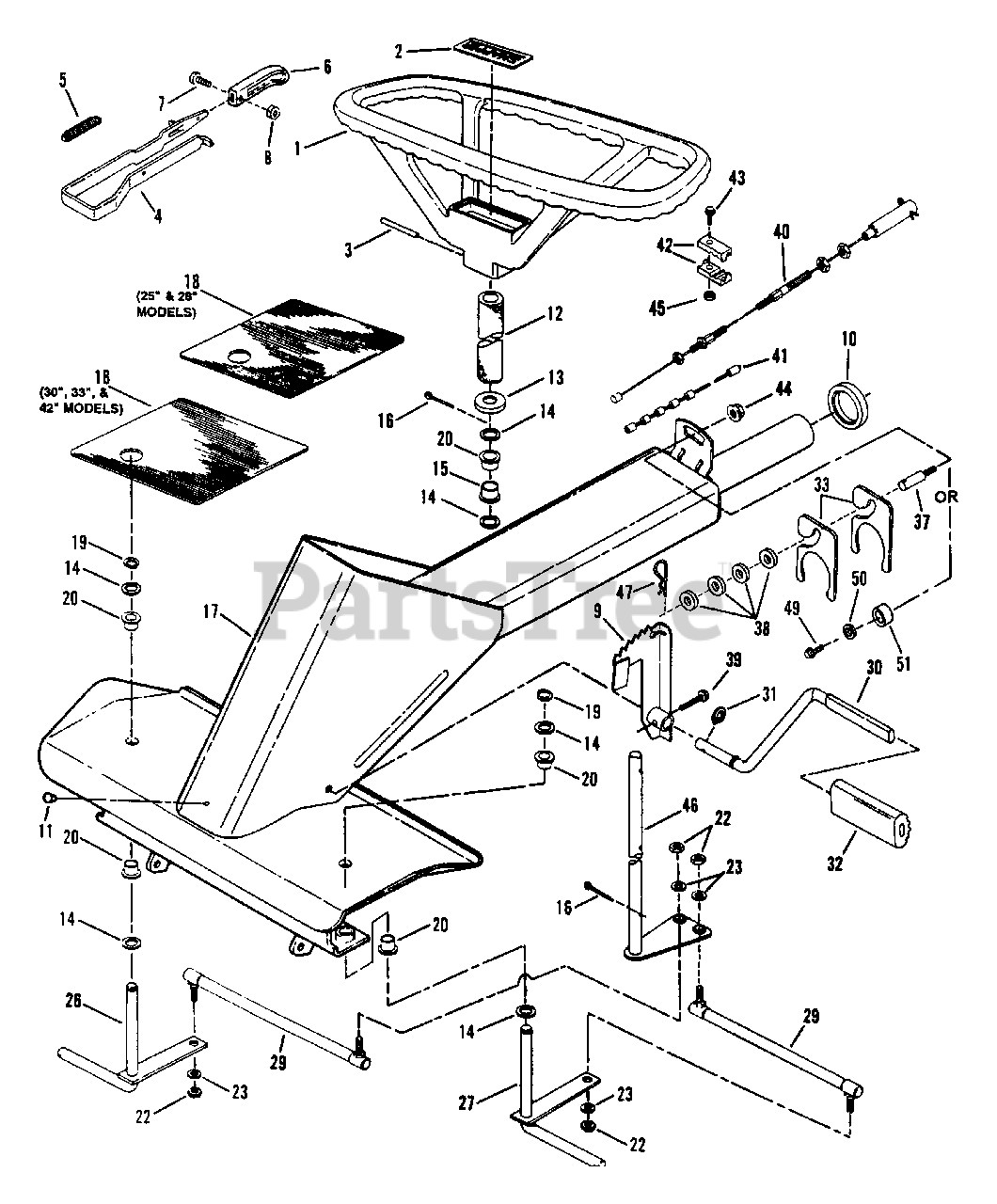

250815B (80022) - Snapper 25" Rear-Engine Riding Mower, 8hp Front End Steering (Part 1) Parts Diagram

25" Rear-Engine Riding Mower, 8hp

Front End Steering (Part 1) Parts Diagram

  • Title

1

Snapper 7051941

ASSEMBLY, Steering Wheel
(Superseded to 7051941YP)

Note: (Includes Item 2)

$179.99

$

In Stock, only 1 left!

0

2

Snapper 7023781

DECAL, Snapper
(Superseded to 7023781YP)

$15.99

$

In Stock, only 2 left!

0

3

Snapper 7013862

PIN, 1/4 x 1-1/2" Roll
(Superseded to 7013862YP)

$4.49

$

In Stock, Qty 20+

0

4

Snapper 7033882

BRACKET, Clutch/Brake

$

$

Not available

5

Snapper 7023666

SPRING
(Superseded to 7023666YP)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper 7023655

KNOB
(Superseded to 7023655YP)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 7091017

SCREW, #8-32 x 3/8" Cross Recess
(Superseded to 7091017YP)

$3.99

$

In Stock, Qty 5

0

8

Snapper 7091018

NUT, #8-32 Hex
(Superseded to 7091018YP)

$3.99

$

In Stock, Qty 11

0

9

Snapper 7041476

ARM, Clutch/Brake
(Superseded to 7041476YP)

$43.99

$

Usually ships in 2-12 days

0

10

Snapper 7022372

SPACER, Main Tube
(Superseded to 7022372YP)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper 7016704

PLUG
(Superseded to 7016704SM)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7023667

COVER, Steering Shaft (Foam)
(Superseded to 7023667YP)

$8.49

$

In Stock, Qty 9

0

13

Snapper 7023671

COVER
(Superseded to 7023671YP)

$4.49

$

In Stock, Qty 10

0

14

Snapper 7010935

WASHER, 3/4 Flat
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

15

Snapper 7019166

BUSHING, 3/4" Steering Shaft
(Superseded to 7019166YP)

$4.49

$

In Stock, only 2 left!

0

16

Snapper 7091515

PIN, 3/16 x 1-1/2" Cotter
(Superseded to 703983)

$4.49

$

In Stock, Qty 8

0

17

Snapper 7041654

FRAME, Front

Note: Was 41393 (25" & 28" Models)

$

$

Currently unavailable

Snapper 7041653

FRAME, Front
(Superseded to 7041653YP)

Note: Was 41622 (30" & 33" Models)

$583.99

$

Usually ships in 2-12 days

0

18

Snapper 7023660

PAD, Foot (Right Side)

Note: (25" & 28" Models); (Shown)

$

$

Not available

Snapper 7023663

PAD, Foot (Right Side)
(Superseded to 7023663YP)

Note: (30" & 33" Models); (Shown)

$9.49

$

Usually ships in 2-12 days

0

Snapper 7023659

PAD, Foot (Left Side)

Note: (Not Shown); (25" & 28" Models)

$

$

Not available

Snapper 7023662

PAD, Foot (Left Side)

Note: (Not Shown); (30" & 33" Models)

$

$

Not available

19

Snapper 7010746

RING, Retaining
(Superseded to 703975)

$3.99

$

In Stock, Qty 20+

0

20

Snapper 7010986

BEARING
(Superseded to 7010986YP)

$4.49

$

In Stock, Qty 20+

0

22

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

23

Snapper 7091315

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

26

Snapper 7041686

PIN, Wide King (Right Side)
(Superseded to 7041686YP)

$

$

Not available

?26A

Snapper 7041683

PIN, Wide King, 11.0 Tires (Right Side)
(Superseded to 7041683YP)

$128.99

$

Usually ships in 2-12 days

0

27

Snapper 7041685

PIN, Wide King (Left Side)
(Superseded to 7041685YP)

$44.99

$

Usually ships in 2-12 days

0

?27A

Snapper 7041684

PIN, Wide King, 11.0 Tires (Left Side)

$

$

Not available

29

Snapper 7024935

TIE-ROD
(Superseded to 7024935YP)

Note: (30" & 33" Models)

$36.99

$

In Stock, Qty 8

0

30

Snapper 7024735

PEDAL, Clutch/Brake
(Superseded to 7024735YP)

$13.99

$

In Stock, only 1 left!

0

31

Snapper 7010739

RING, 5/8" External Retaining
(Superseded to 7010739SM)

$3.49

$

In Stock, only 2 left!

0

32

Snapper 7012661

PAD, Clutch/Brake Pedal
(Superseded to 7012661YP)

$

$

Not available

33

Snapper 7028395

SPACER, Pivot
(Superseded to 7028395YP)

Note: 25" Models Only

$6.99

$

In Stock, only 4 left!

0

37

Snapper 7028332

STUD, 3/8-24 x 5/8" Shoulder
(Superseded to 7028332YP)

Note: 25" Models Only

$14.99

$

Usually ships in 2-12 days

0

38

Snapper 7022881

SPACER
(Superseded to 7022881YP)

Note: 25" Models Only

$4.99

$

In Stock, Qty 17

0

39

Snapper 7091524

SCREW, 5/16-18 x 1-1/4" Self-Tapping
(Superseded to 703167)

Note: Was 91151

$3.99

$

In Stock, Qty 17

0

40

Snapper 7022344

CABLE, Brake
(Superseded to 7022344YP)

$34.99

$

In Stock, only 1 left!

0

41

Snapper 7029913

CABLE, Clutch
(Superseded to 7029913YP)

$28.99

$

In Stock, only 4 left!

0

42

Snapper 7034174

UNION, Cable
(Superseded to 7034174YP)

$4.99

$

In Stock, only 1 left!

0

43

Snapper 7091495

BOLT, 1/4-20 x 3/4" Hex Flange Lock
(Superseded to 703925)

$4.49

$

In Stock, Qty 6

0

44

Snapper 7091299

NUT, 3/8-16 Hex Nylock
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

45

Snapper 7090372

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)

$

$

Not available

46

Snapper 7041553

SHAFT, Steering (Wide Front End)
(Superseded to 7041553YP)

$137.99

$

Usually ships in 2-12 days

0

47

Snapper 7012867

PIN, 1/8 x 2-9/16" Hair
(Superseded to 7012867YP)

Note: 25" Models Only

$2.99

$

Usually ships in 2-12 days

0

49

Snapper 7091198

SCREW, 3/8-16 x 5/8 Self Tapping
(Superseded to 7091198SM)

$4.49

$

Usually ships in 2-12 days

0

50

Snapper 7090517

WASHER, 3/8" Flat
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

51

Snapper 7028774

SPACER, .39 x .625 x .19

$

$

Not available
