250BV (86326) - Snapper Blower 250BV General Assembly Parts Diagram

Blower

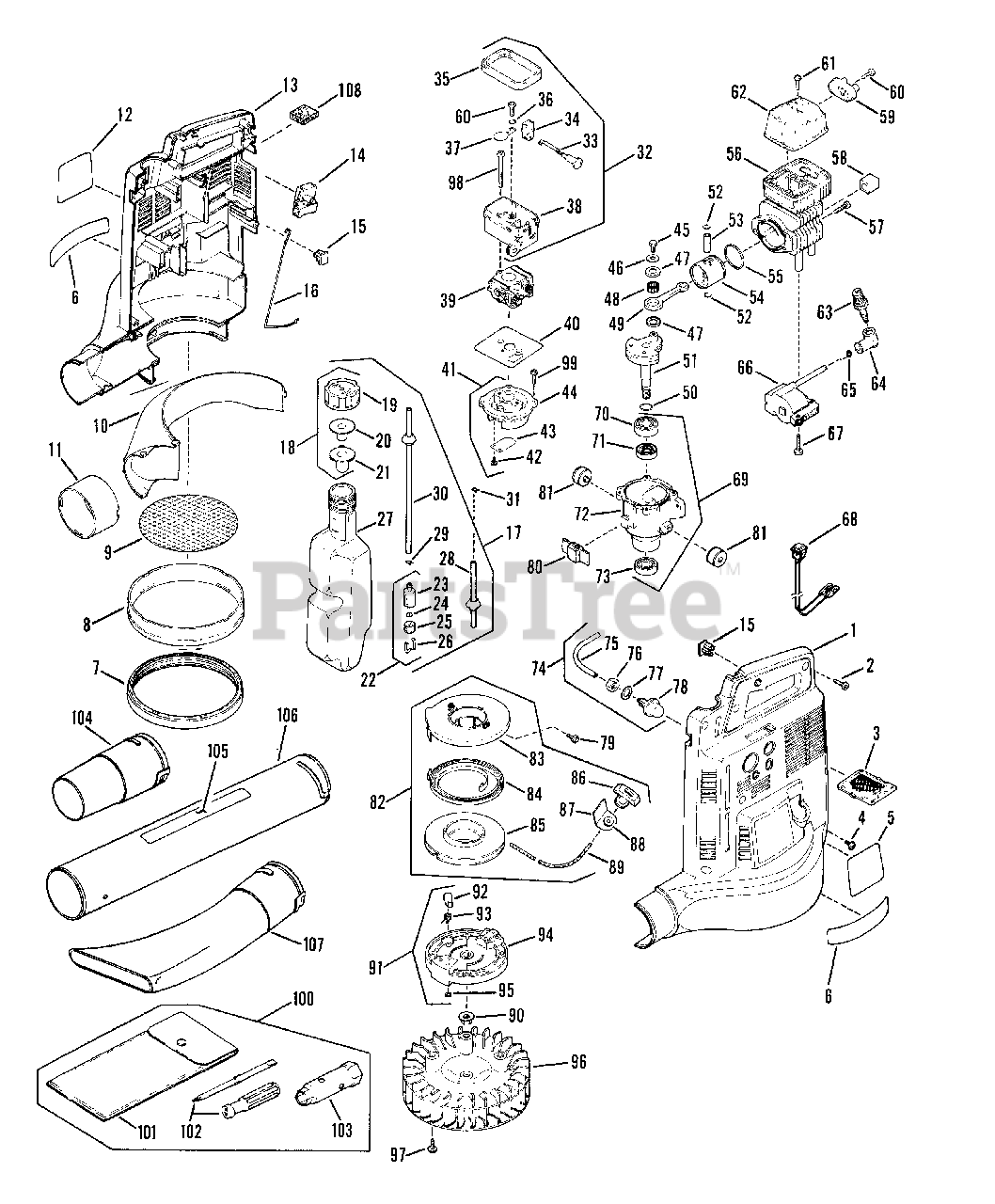

250BV General Assembly Parts Diagram

  • Title

1

Snapper 46017

HOUSING, Blower (L.H.)

Note: USE ON SERIAL NO'S. THAT START WITH 64

$

$

Currently unavailable

Snapper 46145

HOUSING, Blower (L.H.)

Note: USE ON SERIAL NO'S. THAT START WITH 74

$

$

Currently unavailable

2

Snapper 7046019

SCREW, M4.5x 18mm

Note: USE ON SERIAL NO'S. THAT START WITH 64

$

$

Currently unavailable

Snapper 7046141

SCREW, M4.5x 23mm

Note: USE ON SERIAL NO'S. THAT START WITH 74

$

$

Currently unavailable

3

Snapper 7046058

ELEMENT, Air Filter

$

$

Not available

4

Snapper 7046135

SCREW, M4 x 16mm

$

$

Currently unavailable

5

Snapper 7046001

DECAL, Starting Instructions

$

$

Currently unavailable

6

Snapper 7015083

DECAL, Snapper

$

$

Not available

7

Snapper 7046093

RING, Lower Housing

Note: USE ON SERIAL NO'S. THAT START WITH 64

$

$

Currently unavailable

Snapper 7046143

RING, Lower Housing

Note: USE ON SERIAL NO'S. THAT START WITH 74

$

$

Currently unavailable

8

Snapper 7046020

RING, Air Inlet

$

$

Currently unavailable

9

Snapper 7046018

GUARD, Mesh

$

$

Currently unavailable

10

Snapper 7046016

GUIDE, Air Flow

$

$

Currently unavailable

11

Snapper 7046021

RING, Exhaust

$

$

Currently unavailable

12

Snapper 7046002

DECAL, Model

$

$

Currently unavailable

13

Snapper 46015

HOUSING, Blower (R.H.)
(Superseded to 5046015B)

Note: USE ON SERIAL NO'S. THAT START WITH 64

$188.99

$

Usually ships in 2-12 days

0

Snapper 46144

HOUSING, Blower (R.H.)

Note: USE ON SERIAL NO'S. THAT START WITH 74

$

$

Currently unavailable

14

Snapper 7046059

ASSEMBLY, Throttle/Lockout

$

$

Currently unavailable

15

Snapper 7046137

PLATE

$

$

Currently unavailable

16

Snapper 7046060

ROD, Throttle

$

$

Currently unavailable

17

Snapper 46089

ASSEMBLY, Tank

Note: (Includes items 18 thru 30)

$

$

Currently unavailable

18

Snapper 7046090

ASSEMBLY, Cap

Note: (Includes items 19 thru 21)

$

$

Currently unavailable

19

Snapper 7046062

CAP, Fuel Tank

$

$

Currently unavailable

20

Snapper 7046063

VALVE

$

$

Currently unavailable

21

Snapper 7046064

COVER

$

$

Currently unavailable

22

Snapper 7046091

ASSEMBLY, Filter

Note: (Includes items 23 thru 26)

$

$

Currently unavailable

23

Snapper 7046066

WEIGHT

$

$

Currently unavailable

24

Snapper 7046069

SCREEN

$

$

Currently unavailable

25

Snapper 7046067

FILTER

$

$

Currently unavailable

26

Snapper 7046068

RETAINER

$

$

Currently unavailable

27

Snapper 46061

TANK, Fuel
(Superseded to 5046061B)

$

$

Currently unavailable

28

Snapper 7046071

TUBING, Overflow

$

$

Not available

29

Snapper 7046070

CLIP

$

$

Currently unavailable

30

Snapper 7046065

TUBING, Filter
(Superseded to 7046065YP)

$5.49

$

Usually ships in 2-12 days

0

31

Snapper 7046131

CLIP

$

$

Currently unavailable

32

Snapper 7046088

ASSEMBLY, Body

Note: (Includes items 33 thru 38 8 60)

$

$

Currently unavailable

33

Snapper 7046053

ROD, Choke
(Superseded to 7046053YP)

$8.99

$

Usually ships in 2-12 days

0

34

Snapper 7046054

GROMMET

$

$

Currently unavailable

35

Snapper 7046056

GASKET

$

$

Not available

36

Snapper 7046055

0-RING

$

$

Currently unavailable

37

Snapper 7046052

PLATE

$

$

Currently unavailable

38

Snapper 7046051

BODY
(Superseded to 7046051YP)

$14.99

$

Usually ships in 2-12 days

0

39

Snapper 7046059

ASSEMBLY, Carburetor (See page 4 for breakdown)

$

$

Currently unavailable

40

Snapper 7046050

GASKET

$

$

Currently unavailable

41

Snapper 7046086

ASSEMBLY, Cover

Note: (Includes items 42 thru 44)

$

$

Currently unavailable

42

Snapper 7046014

SCREW

$

$

Currently unavailable

43

Snapper 7046013

REED

$

$

Currently unavailable

44

Snapper 7046086

COVER

Note: Was 46012

$

$

Currently unavailable

45

Snapper 7046034

BOLT

$

$

Currently unavailable

46

Snapper 7046033

WASHER

$

$

Currently unavailable

47

Snapper 7046032

WASHER

$

$

Currently unavailable

48

Snapper 7046031

BEARING, Roller

$

$

Currently unavailable

49

Snapper 7046030

ROD, Piston

$

$

Currently unavailable

50

Snapper 7046029

WASHER

$

$

Currently unavailable

51

Snapper 7046028

ASSEMBLY, Crankshaft

$

$

Currently unavailable

52

Snapper 7046027

RING, Clip

$

$

Currently unavailable

53

Snapper 7046026

PIN, Piston

$

$

Currently unavailable

54

Snapper 7046024

PISTON
(Superseded to 7046024YP)

$32.99

$

Usually ships in 2-12 days

0

55

Snapper 7046025

RING, Piston
(Superseded to 7046025YP)

$8.99

$

Usually ships in 2-12 days

0

56

Snapper 7046003

CYLINDER

$

$

Currently unavailable

57

Snapper 7046004

SCREW, M5 x 20mm

$

$

Currently unavailable

58

Snapper 7046130

MOUNT, Rear

$

$

Currently unavailable

59

Snapper 7046006

TAIL, Muffler
(Superseded to 7046006YP)

$6.49

$

Usually ships in 2-12 days

0

60

Snapper 7046007

SCREW, M4 x 16mm

$

$

Not available

61

Snapper 7046146

SCREW, M5 x 2mm

Note: Was 46134

$

$

Currently unavailable

62

Snapper 7046005

MUFFLER

$

$

Not available

63

SPARK PLUG(Champion CJ-8Y)

$

$

Not available

64

Snapper 46041

CAP, Spark Plug

$

$

Currently unavailable

65

Snapper 7046042

SPRING

$

$

Currently unavailable

66

Snapper 7046040

ASSEMBLY, Coil

$

$

Currently unavailable

67

Snapper 7046043

SCREW, M4x25mm

$

$

Currently unavailable

68

Snapper 7046045

ASSEMBLY, Switch

$

$

Currently unavailable

69

Snapper 7046085

ASSEMBLY, Crankcase

Note: (Includes items 70 thru 73)

$

$

Currently unavailable

70

Snapper 7046009

BEARING

$

$

Currently unavailable

71

Snapper 7046010

SEAL

$

$

Currently unavailable

72

Snapper 46008

HOUSING, Crankcase

$

$

Currently unavailable

73

Snapper 46011

BEARING
(Superseded to 5046011)

$10.99

$

Usually ships in 2-12 days

0

74

Snapper 7046132

ASSEMBLY, Pump

Note: (Includes items 75 thru 78)

$

$

Not available

75

Snapper 7046124

HOSE, Primer Joint

$

$

Not available

76

Snapper 7046123

NUT, Primer

$

$

Currently unavailable

77

Snapper 7046122

WASHER

$

$

Currently unavailable

78

Snapper 7046121

ASSEMBLY, Primer Body

$

$

Not available

79

Snapper 7046133

SCREW, M4x8mm

$

$

Currently unavailable

80

Snapper 7046023

MOUNT, Front

$

$

Currently unavailable

81

Snapper 7046022

MOUNT, Side

$

$

Currently unavailable

82

Snapper 7046048

ASSEMBLY, Starter
(Superseded to 7046048YP)

Note: (Includes items 83 thru 89)

$111.99

$

Usually ships in 2-12 days

0

83

Snapper 7046084

PLATE, Starter

$

$

Not available

84

Snapper 7046083

SPRING

$

$

Currently unavailable

85

Snapper 7046082

PULLEY

$

$

Currently unavailable

86

Snapper 7046081

HANDLE, Rope

$

$

Currently unavailable

87

Snapper 7046129

GUARD

$

$

Currently unavailable

88

Snapper 7046080

GUIDE, Rope

$

$

Currently unavailable

89

Snapper 7046079

ROPE, Starter

$

$

Not available

90

Snapper 7046035

NUT

$

$

Currently unavailable

91

Snapper 7046087

ASSEMBLY, Rotor

Note: (Includes items 92 thru 95)

$

$

Currently unavailable

92

Snapper 7046037

RATCHET

$

$

Currently unavailable

93

Snapper 7046038

SPRING

$

$

Currently unavailable

94

Snapper 7046036

ROTOR

$

$

Currently unavailable

95

Snapper 7046039

E-RING

$

$

Currently unavailable

96

Snapper 7046046

FAN

$

$

Currently unavailable

97

Snapper 7046047

SCREW, M4x20mm

$

$

Currently unavailable

98

Snapper 7046057

SCREW, M5x45mm

$

$

Currently unavailable

99

Snapper 7046136

SCREW, M4x16mm

$

$

Currently unavailable

100

Snapper 46078

KIT, Tool

Note: (Includes items 101 thru 103)

$

$

Currently unavailable

101

Snapper 46075

BAG
(Superseded to 5046075B)

$

$

Currently unavailable

102

Snapper 46076

SCREWDRIVER
(Superseded to 5046076B)

$

$

Currently unavailable

103

Snapper 46077

SOCKET
(Superseded to 5046077)

$

$

Currently unavailable

104

Snapper 7044537

NOZZLE, Jet Type

Note: Was 46073

$

$

Not available

105

Snapper 7015083

DECAL, Snapper

$

$

Not available

106

Snapper 7046072

PIPE

Note: (Includes item 105)

$

$

Currently unavailable

107

Snapper 7046074

NOZZLE, Fan Type

$

$

Currently unavailable

108

Snapper 7046142

PRE-FILTER

$

$

Currently unavailable
