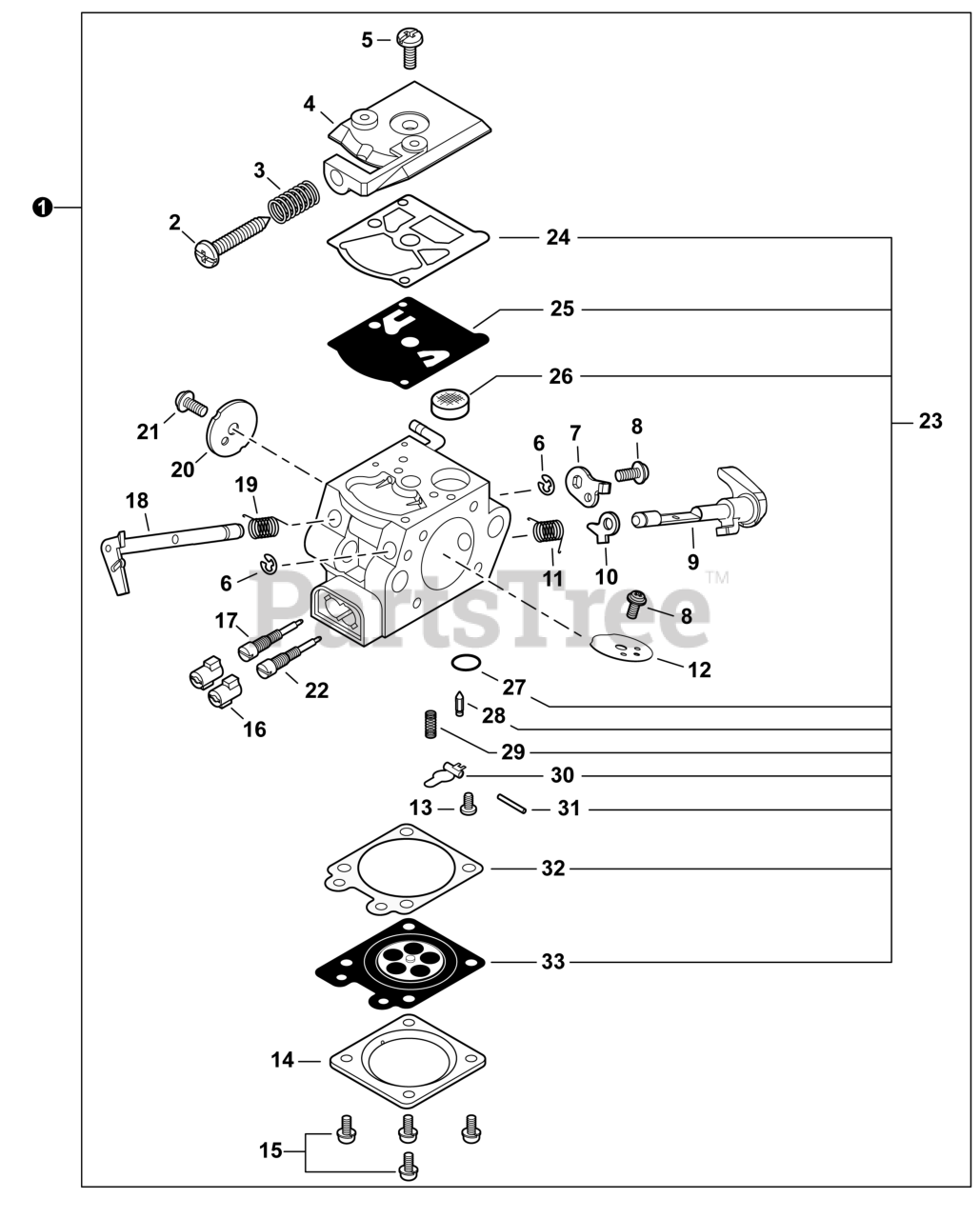

251 TSN - Shindaiwa Chainsaw (SN: F05513001001 - F05513999999) CARBURETOR Parts Diagram

Chainsaw

CARBURETOR Parts Diagram

  • Title

1

Echo A021005700

CARBURETOR WT-1270

Note: Includes Items 2-33

$124.99

$

Usually ships in 2-4 days

0

2

Echo 12313404260

SCREW, IDLE ADJUST

Note: +

$2.49

$

In Stock, only 2 left!

0

3

Echo 12313304260

SPRING, IDLE ADJUST

Note: +

$7.49

$

In Stock, only 2 left!

0

4

Echo P003005980

COVER, FUEL PUMP

Note: +

$20.99

$

Usually ships in 2-4 days

0

5

Echo 12311003930

SCREW

Note: +

$0.99

$

Usually ships in 2-4 days

0

6

Echo 12312715030

E-RING

Note: +

$0.99

$

In Stock, only 2 left!

0

7

Echo P003000380

LEVER, THROTTLE

Note: +

$2.49

$

Usually ships in 2-4 days

0

8

Echo 12311438830

SCREW

Note: +

$1.49

$

In Stock, Qty 6

0

9

Echo P003005810

SHAFT ASSY, CHOKE

Note: +

$21.99

$

Usually ships in 2-4 days

0

10

Echo P003001510

LEVER, FAST IDLE

Note: +

$1.49

$

In Stock, only 1 left!

0

11

Echo P003004780

SPRING

Note: +

$8.49

$

In Stock, only 1 left!

0

12

Echo P003000410

VALVE, CHOKE

Note: +

$10.99

$

Usually ships in 2-4 days

0

13

Echo P003005400

SCREW

Note: +

$10.99

$

Usually ships in 2-4 days

0

14

Echo 12314203930

COVER, METERING DIAPHRAGM

Note: +

$4.99

$

In Stock, only 2 left!

0

15

Echo 12313002960

SCREW

Note: +

$1.99

$

In Stock, only 1 left!

0

16

Echo P003000010

CAP, LIMITER

Note: +

$0.99

$

In Stock, Qty 17

0

17

Echo P003004820

NEEDLE, MIXTURE

Note: +

$4.99

$

In Stock, only 2 left!

0

18

Echo P003001300

SHAFT, THROTTLE
(Superseded to Discontinued)

Note: +

$

$

Not available

19

Echo 12311337530

SPRING, THROTTLE RETURN

Note: +

$3.49

$

Usually ships in 2-4 days

0

20

Echo P003005750

VALVE, THROTTLE

Note: +

$6.49

$

Usually ships in 2-4 days

0

21

Echo P003002380

SCREW

Note: +

$0.99

$

Usually ships in 2-4 days

0

22

Echo 12312003661

NEEDLE, MIXTURE

Note: +

$4.99

$

In Stock, only 1 left!

0

23

Echo P033000030

REPAIR KIT, CARBURETOR

Note: Includes Items 24-33+

$18.99

$

In Stock, Qty 20+

0

24

--

GASKET, FUEL PUMP

Note: ++

$

$

Not available

25

--

DIAPHRAGM, PUMP

Note: ++

$

$

Not available

26

--

SCREEN, FUEL INLET

Note: ++

$

$

Not available

27

--

PLUG, WELCH

Note: ++

$

$

Not available

28

--

VALVE, INLET NEEDLE

Note: ++

$

$

Not available

29

--

SPRING, METERING LEVER

Note: ++

$

$

Not available

30

--

LEVER, METERING

Note: ++

$

$

Not available

31

--

PIN, METERING LEVER

Note: ++

$

$

Not available

32

--

GASKET, METERING DIAPHRAGM

Note: ++

$

$

Not available

33

--

DIAPHRAGM, METERING

Note: ++

$

$

Not available
