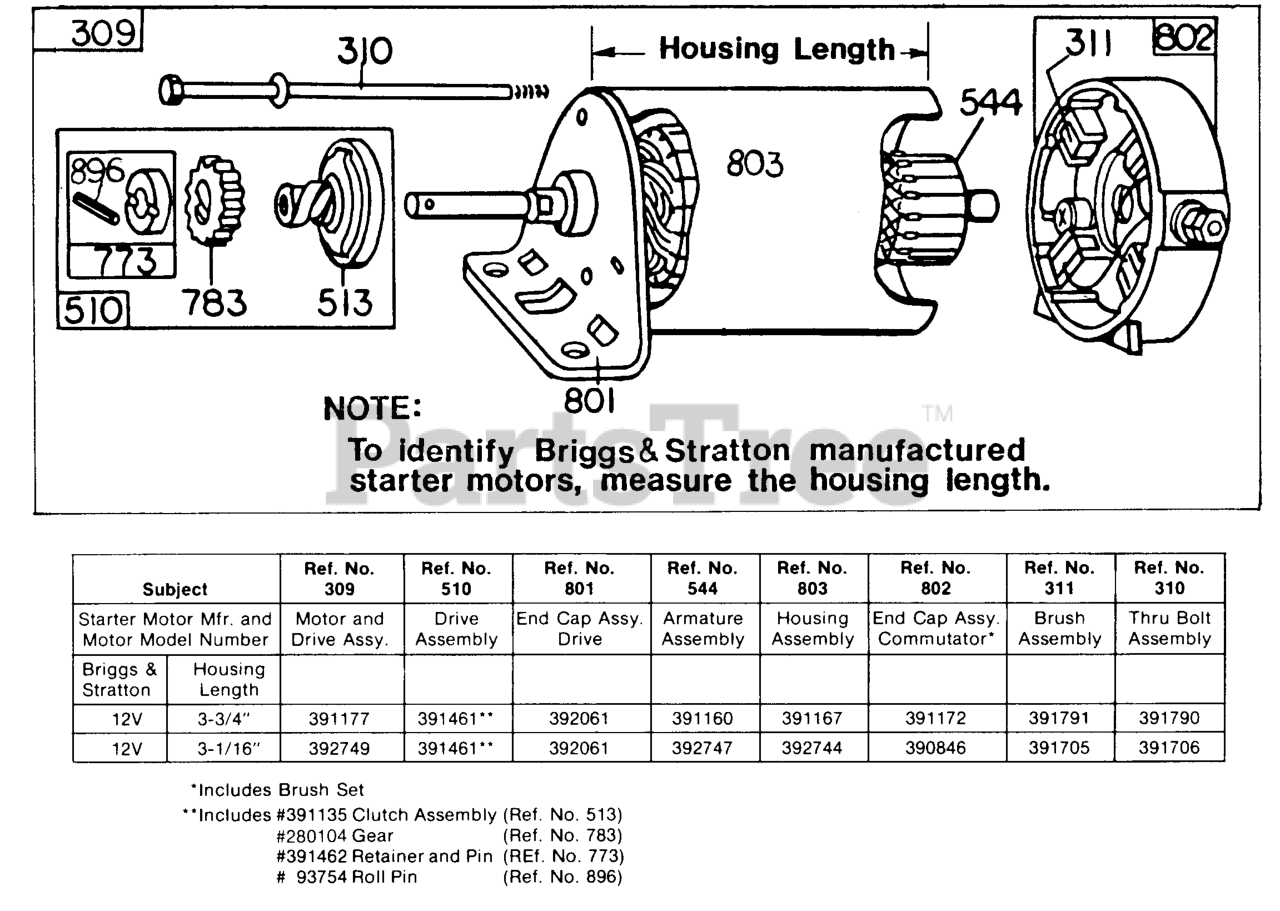

251417-0202-XX - Briggs & Stratton Horizontal Engine Electric Starter Parts Diagram

Horizontal Engine

Electric Starter Parts Diagram

  • Title

309

Briggs & Stratton 222592

Dripshield-Starter
(Superseded to 692860)

$31.99

$

Usually ships in 2-12 days

0

310

Briggs & Stratton 391706

Screw-Hex (For 3 1/16" Housing Length)

$3.99

$

Usually ships in 2-12 days

0

310

Briggs & Stratton 391790

Bolt-Thru (For 3-3/4" Housing Length)

$6.49

$

Usually ships in 2-12 days

0

311

Briggs & Stratton 391705

Brush Set (For 3 1/16" Housing Length)

$59.99

$

In Stock, only 1 left!

0

311

Briggs & Stratton 391791

Brush Set Briggs & Stratton 12V (3-3/4" Housing Length)
(Superseded to 391705)

$59.99

$

In Stock, only 1 left!

0

510

Briggs & Stratton 391461

Drive-Starter (For 3-1/2" Housing Length)
(Superseded to 696535)

Note: Includes #391135 Clutch Assembly (Ref. No. 513) #280104 Gear (Ref. No. 783) #391462 Retainer and Pin (Ref. No. 773) # 93754 Roll Pin (Ref. No. 896)

$36.99

$

Usually ships in 2-12 days

0

544

Briggs & Stratton 391160

Armature-Str

Note: (For 3 5/8" or 4 3/8" Housing Length)

$

$

Not available

544

Briggs & Stratton 392747

Armature Assy (For 3-21/32" Housing Length)
(Superseded to 390837)

$159.99

$

In Stock, only 1 left!

0

801

Briggs & Stratton 392061

Cap, Drive
(Superseded to 394857)

Note: (For 3-1/16" or 3-3/4" Housing Length)

$56.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 390846

Cap-End (For 3-1/16" Housing Length)

Note: Includes Brush Set

$33.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 391172

Cap-End (For 3-3/4" Housing Length)

Note: Includes Brush Set

$43.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 391167

Housing-Starter (For 3-3/4" Housing Length)

$

$

Not available

803

Briggs & Stratton 392744

Shell/Magnet Assy (For 3-1/16" Housing Length)
(Superseded to 497595)

$110.99

$

In Stock, Qty 9

0
