2518-48 (13A-288M100) - Cub Cadet Garden Tractor Blower Housing And Baffles (KH-64638) Parts Diagram

Garden Tractor

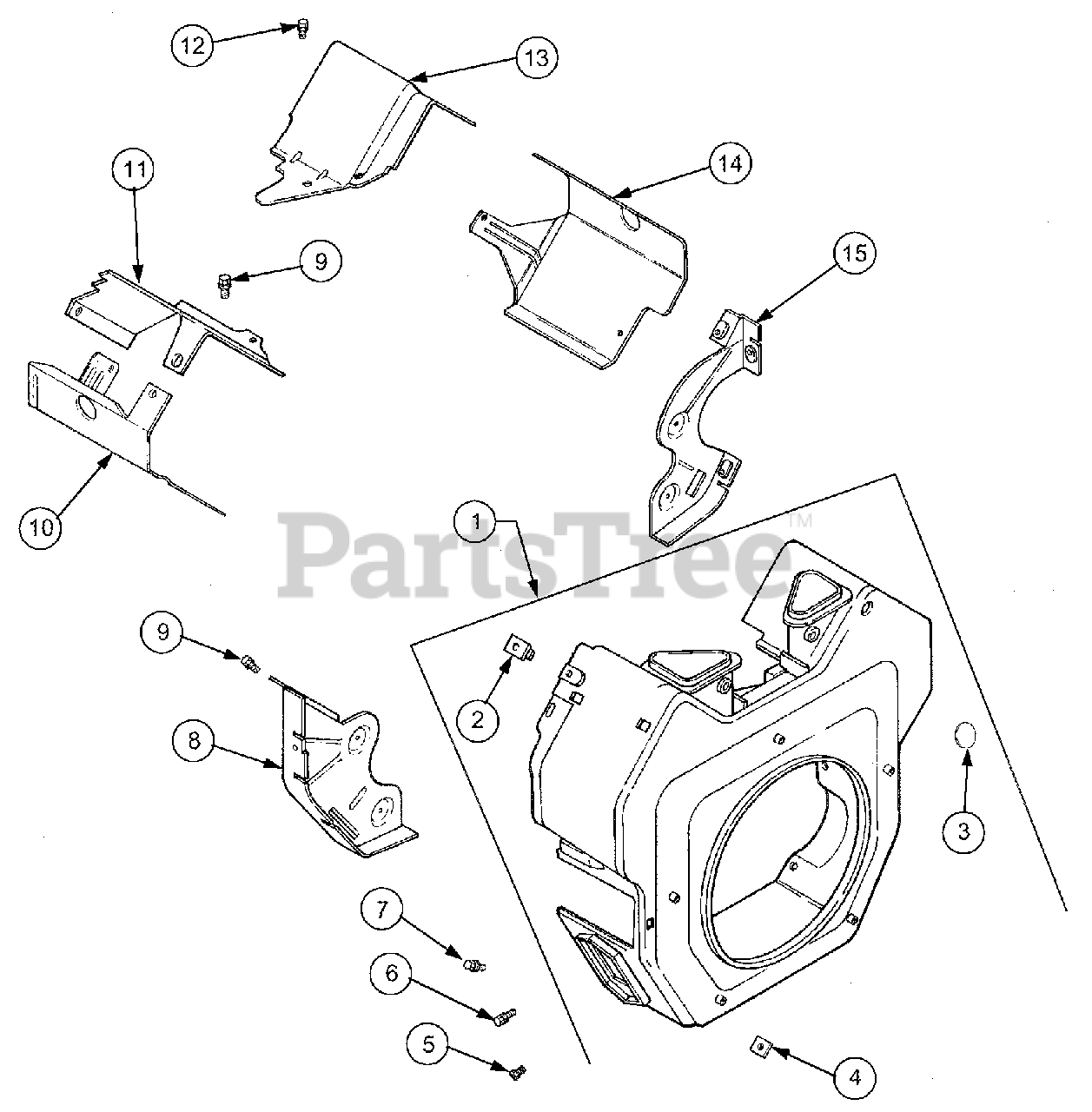

Blower Housing And Baffles (KH-64638) Parts Diagram

  • Title

1

Cub Cadet KH-24-027-175-S

Housing, Blower
(Superseded to KH-24-027-477-S)

Note: (Incl. Ref #2-4)

$111.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-24-100-02

Nut, Plastic

$

$

Not available

3

Cub Cadet KH-25-139-16

Plug, Button, 9/16

$

$

Not available

4

Cub Cadet KH-24-100-01

Nut, Plastic
(Superseded to KH-25-100-37-S)

$2.49

$

In Stock, only 4 left!

0

5

Cub Cadet KH-M-0551016

Screw, Hex Flange, M5 x 0.8 x 16

$

$

Not available

6

Cub Cadet KH-M-545016-S

Screw, Hex Flange, M5 x 0.8 x 16
(Superseded to KH-25-086-398-S)

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet KH-M-0545020

Screw, Hex Flange, M5 x 0.8 x 20

$

$

Not available

8

Cub Cadet KH-24-146-16-S

Plate, Backing - #2 Side

$

$

Not available

9

Cub Cadet KH-M-0645016

Screw, Hex Flange, M6 x 1.0 x 16
(Superseded to KH-M-645016-S)

$4.99

$

In Stock, Qty 9

0

10

Cub Cadet KH-24-063-20

Baffle, Cylinder Barrel - #2 Side
(Superseded to KH-24-063-88-S)

$28.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-24-063-17

Baffle, Valley - #2 Side
(Superseded to KH-24-063-94-S)

$9.49

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-M-0545010

Screw, Hex Flange, M5 x 0.8 x 10

$

$

Not available

13

Cub Cadet KH-24-063-59-S

Baffle, Valley - #1 Side
(Superseded to KH-24-063-93-S)

$5.49

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-24-063-58-S

Baffle, Cylinder Barrel - #1 Side
(Superseded to KH-24-063-85-S)

$17.99

$

In Stock, only 1 left!

0

15

Cub Cadet KH-24-146-20-S

Plate, Backing - #1 Side

$

$

Not available

Cub Cadet KH-64638

Complete Engine

$

$

Not available
