25203 - Toro 60" Direct Drive Boom for RT600 Traction Unit FRAME ASSEMBLY Parts Diagram

60" Direct Drive Boom for RT600 Traction Unit

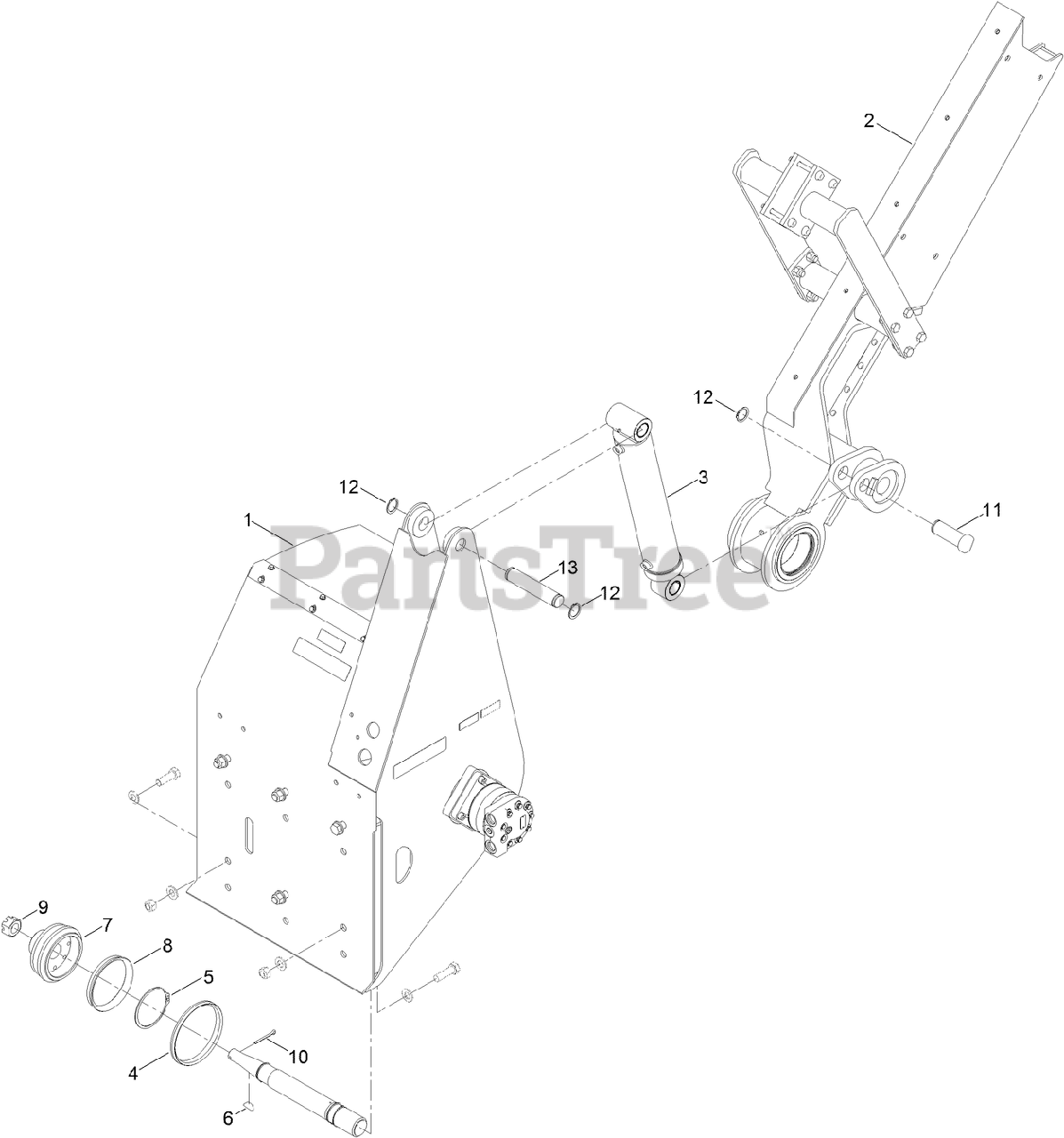

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 131-2520

TRENCHER FRAME ASM

$

$

Currently unavailable

2

Toro 130-8886

DIRECT DRIVE BOOM ASM

$

$

Currently unavailable

3

Toro 131-2471

CYLINDER-HYDRAULIC

$

$

Currently unavailable

4

Toro 131-2528

SEAL

$

$

Currently unavailable

5

Toro AUS64875

RING-RETAINING, EXTERNAL

$18.99

$

Usually ships in 3-6 days

0

6

Toro 131-2529

KEY-WOODRUFF

$

$

Currently unavailable

7

Toro 131-2508

HUB-TRENCHER, DRIVE

$

$

Not available

8

Toro AUH433852

SEAL-PLANETARY, URETHANE

$108.99

$

Usually ships in 3-6 days

0

9

Toro 32136-9

NUT-HEX, SLOTTED

$10.99

$

Usually ships in 3-6 days

0

10

Toro 3272-37

PIN-COTTER

$1.49

$

Usually ships in 3-6 days

0

11

Toro 131-2886

PIN-HEADED

$

$

Currently unavailable

12

Toro AUD25279

RING

$20.99

$

Usually ships in 3-6 days

0

13

Toro 131-2887

PIN-PLAIN

$

$

Currently unavailable
