253 RB - Husqvarna Brush Cutter (SN: 20182200001 & Above) CYLINDER PISTON Parts Diagram

Brush Cutter

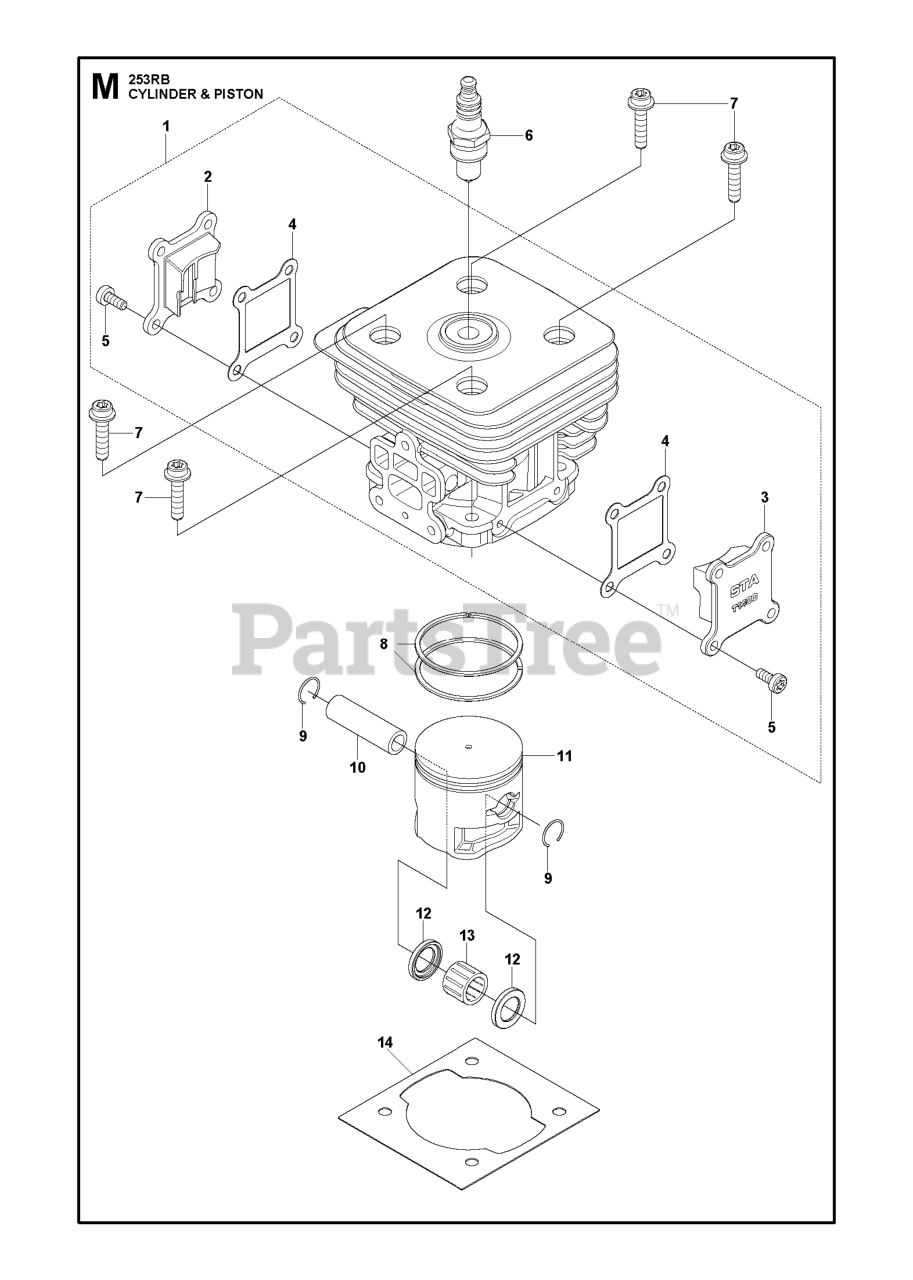

CYLINDER PISTON Parts Diagram

  • Title

11

Husqvarna 528774001

NEEDS DESCRIPTION

$

$

Currently unavailable

8

Husqvarna 512311201

RING
(Superseded to 521745501)

$7.49

$

Usually ships in 3-10 days

0

3

Husqvarna 574346701

NEEDS DESCRIPTION

$

$

Currently unavailable

5

Husqvarna 504119201

BOLT

$2.49

$

In Stock, Qty 8

0

14

Husqvarna 521634301

GASKET

$

$

Not available

2

Husqvarna 574346801

NEEDS DESCRIPTION

$

$

Currently unavailable

13

Husqvarna 576696301

BEARING
(Superseded to 502849901)

$12.99

$

In Stock, Qty 5

0

7

Husqvarna 506745201

BOLT

$4.99

$

In Stock, Qty 7

0

6

Husqvarna 521233401

PLUG CMR7H
(Superseded to 506615101)

$4.46

$

Usually ships in 3-10 days

0

9

Husqvarna 502849801

SNAP RING

$4.99

$

In Stock, only 2 left!

0

10

Husqvarna 510916901

PISTON PIN

$9.99

$

In Stock, Qty 14

0

12

Husqvarna 513622401

WASHER

$

$

Not available

4

Husqvarna 521634601

GASKET, TR

$

$

Not available

1

Husqvarna 582898301

NEEDS DESCRIPTION

$

$

Currently unavailable
