254-556A190 - White Outdoor Edger (1994) Edger Parts Diagram

Edger

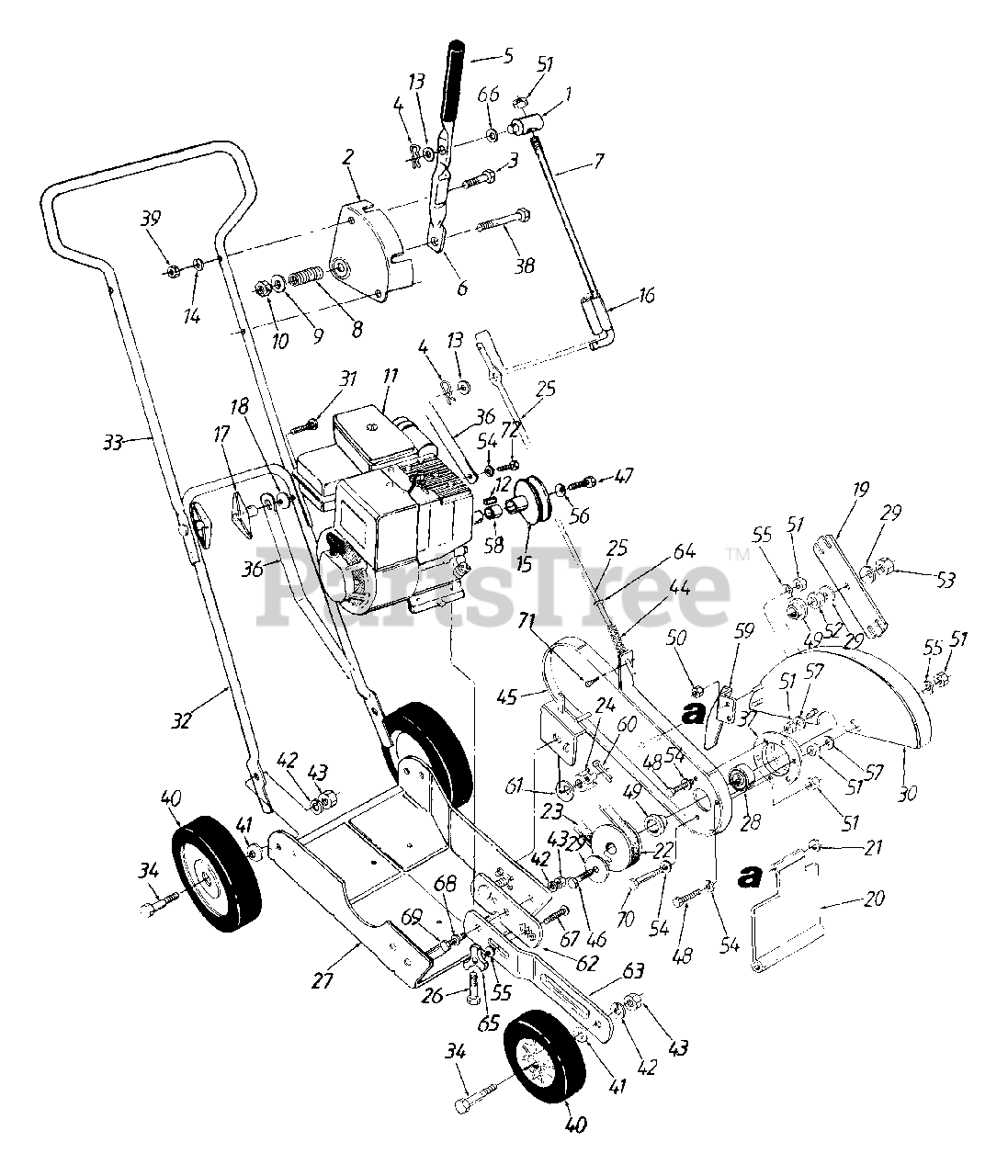

Edger Parts Diagram

  • Title

1

MTD 911-0677

Ferrule

$16.99

$

In Stock, only 4 left!

0

2

MTD 781-0583

Spindle Adj. Brkt.

Note: NLA

Variations

MTD 781-0583-0637

No Longer Available BRACKET-SP - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, only 1 left!

0

4

MTD 914-0104

Hairpin Clip
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

5

MTD 720-0283

Foam Grip

$7.99

$

In Stock, only 1 left!

0

6

MTD 749-0666-0637

Engagement Handle

$33.99

$

In Stock, only 3 left!

0

7

MTD 747-0907

Upper Clutch Rod

$

$

Not available

8

MTD 932-0369

Compression Spring 1.38" Lg.

$9.49

$

In Stock, only 1 left!

0

9

MTD 936-0264

Fl-Wash. .344" I.D.

$6.49

$

In Stock, Qty 11

0

10

MTD 912-0158

Hex L-Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 19

0

11

Engine

$

$

Not available

12

MTD 914-0105

Sq. Key 3/16" x 1" Lg.

$3.49

$

Usually ships in 3-6 days

0

13

MTD 936-0264

Fl-Wash. .344" I.D.

$6.49

$

In Stock, Qty 11

0

14

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 13

0

15

MTD 756-0327B

Engine Pulley

Note: NLA

$

$

Not available

16

MTD 950-0963

Clutch Rod Lock

$32.99

$

In Stock, only 3 left!

0

17

MTD 720-04072A

Wing Nut Ass'y.

$6.49

$

In Stock, Qty 20+

0

18

MTD 936-0451

Saddle Wash. .32" I.D. x .937" O.D.
(Superseded to 736-0451)

$3.99

$

In Stock, Qty 20+

0

19

MTD 781-0080-0637

Blade

$8.99

$

In Stock, Qty 20+

0

20

MTD 731-1518

Edger Guide Flap

$

$

Not available

21

MTD 726-0111

Push Cap

$6.49

$

Usually ships in 3-6 days

0

22

MTD 956-0449

3/8" "V"-Pulley

$13.99

$

In Stock, Qty 8

0

23

MTD 954-0142

V-Belt

$30.99

$

In Stock, Qty 17

0

24

MTD 912-0114

Hex Slotted Nut 1/2-20 Thd.

$

$

Not available

25

MTD 747-0906

Lower Clutch Rod

Note: NLA

$

$

Not available

26

MTD 710-0654A

Hex L-Wash. TT-Tap Scr. 3/8-16 x 1" Lg.

$3.99

$

In Stock, only 4 left!

0

27

MTD 781-0581

Edger Base

Note: NLA

Variations

MTD 781-0581-0637

No Longer Available BASE-EDGER - POWDER BLACK (0637)

$

$

Not available

MTD 781-0581-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0581-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 781-0581-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

$

$

28

MTD 941-0919A

Ball Bearing
(Superseded to 941-0919B)

$20.99

$

In Stock, Qty 20+

0

29

MTD 736-0317

Bell-Wash. 5/8" I.D. x 1-1/4" O.D.

$7.49

$

In Stock, Qty 20+

0

30

MTD 14341A

Blade Guard

Note: NLA

Variations

MTD 14341A-0637

No Longer Available GUARD-BLAD - POWDER BLACK (0637)

$

$

Not available

MTD 14341A-0638

No Longer Available GUARD-BLAD - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

31

MTD 710-1174

Curved Hd. Bolt 5/16-18 x 2" Lg.

$6.99

$

In Stock, Qty 20+

0

32

MTD 749-0937-0637

Lower Handle

$

$

Not available

33

MTD 749-0936

Upper Handle

Note: NLA

$

$

Not available

34

MTD 738-0414

Shld. Bolt 3/8-16 Thd.

Note: NLA

$

$

Not available

36

MTD 749-0941-0637

Strut 15.91" Lg.

$

$

Not available

37

MTD 08253B

Bearing Housing

$17.99

$

In Stock, only 3 left!

0

38

MTD 710-3103

Hex Bolt 5/16-18 x 2" Lg.

$4.49

$

In Stock, Qty 19

0

39

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.49

$

In Stock, only 2 left!

0

40

MTD 734-1779A

Wheel Ass'y.

$19.99

$

In Stock, only 3 left!

0

41

MTD 736-0105

Bell-Wash. .38" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

42

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

43

MTD 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

44

MTD 932-0330

Comp. Spring 2" Lg.

$

$

Not available

45

MTD 681-0049

Spindle Brkt. Ass'y.

Note: NLA

Variations

MTD 681-0049-0637

No Longer Available BRACKET-SP - POWDER BLACK (0637)

$

$

Not available

MTD 681-0049-0638

No Longer Available BRACKET-SP - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

46

MTD 710-0298

Hex Bolt 5/8-18 x 3.5" Lg.

$9.99

$

In Stock, only 2 left!

0

47

MTD 710-0459A

Hex Bolt 3/8-24 x 1.5" Lg. (Gr. 5)

$6.99

$

In Stock, Qty 10

0

48

MTD 710-0528

Hex Cap Bolt 5/16-18 x 1-1/4" Lg.

$4.49

$

In Stock, Qty 20+

0

49

MTD 711-1018

Shld. Spacer .626" I.D.

Note: NLA

$

$

Not available

50

MTD 912-0107

Hex Patch L-Nut 1/4-20 Thd.

$4.49

$

In Stock, only 1 left!

0

51

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

52

MTD 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 13

0

53

MTD 912-0413

Hex Ins. L-Nut 5/8-18 Thd.
(Superseded to 712-0413)

$

$

Not available

54

MTD 936-0119

L-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

55

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

56

MTD 936-0452

Bell-Wash. .396" I.D. x 1.14" O.D.
(Superseded to 736-0452)

$4.49

$

In Stock, Qty 16

0

57

MTD 936-3008

Fl-Wash. .312" I.D. x .75" O.D.

$6.49

$

In Stock, only 1 left!

0

58

MTD 750-0345

Spacer.748" I.D. x .985" O.D.

Note: NLA

$

$

Not available

59

MTD 781-0585

Edger Guide

Note: NLA

Variations

MTD 781-0585-0637

No Longer Available GUIDE-EDGE - POWDER BLACK (0637)

$

$

Not available

$

$

60

MTD 914-0470

Cotter Pin 1/8" Dia. x 1.25" Lg.
(Superseded to 714-0470)

$3.99

$

In Stock, Qty 20+

0

61

MTD 936-0255

Bell-Wash. .515" I.D. x 1.14" O.D.
(Superseded to 736-0255)

$

$

Not available

62

MTD 681-0045

Wheel Pivot Support Brkt. Ass'y.

Note: NLA

Variations

MTD 681-0045-0637

No Longer Available BRACKET-WH - POWDER BLACK (0637)

$

$

Not available

$

$

63

MTD 781-0582

Wheel Adjuster Brkt.

Note: NLA

Variations

MTD 781-0582-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 781-0582-0638

No Longer Available BRACKET-WH - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

64

MTD 736-3050

Fl-Wash.,406" I.D. x .81" O.D.

$3.99

$

In Stock, Qty 20+

0

65

MTD 720-0195

Hand Knob

$14.99

$

Usually ships in 3-6 days

0

66

MTD 936-0271

Spring Wash. .32" I.D.

$4.49

$

In Stock, Qty 12

0

67

MTD 710-1236

Carr. Bolt 5/16-18 x 1" Lg. (Special)

$6.49

$

In Stock, only 4 left!

0

68

MTD 950-0736

Spacer .383" I.D. x .503" O.D.

$5.49

$

Usually ships in 3-6 days

0

69

MTD 910-0253

Hex Bolt 3/8-16 x 1" Lg.
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

70

MTD 738-0413

Shld. Bolt 5/16-18 x 1.27" Lg.

Note: NLA

$

$

Not available

71

MTD 914-0115

Cotter Pin 1/8" Dia. x 1" Lg.
(Superseded to 714-0115)

$3.49

$

In Stock, Qty 20+

0

72

MTD 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0
