254 - Husqvarna Chainsaw (1988-02) Front/Handle/Tank Assembly Parts Diagram

Chainsaw

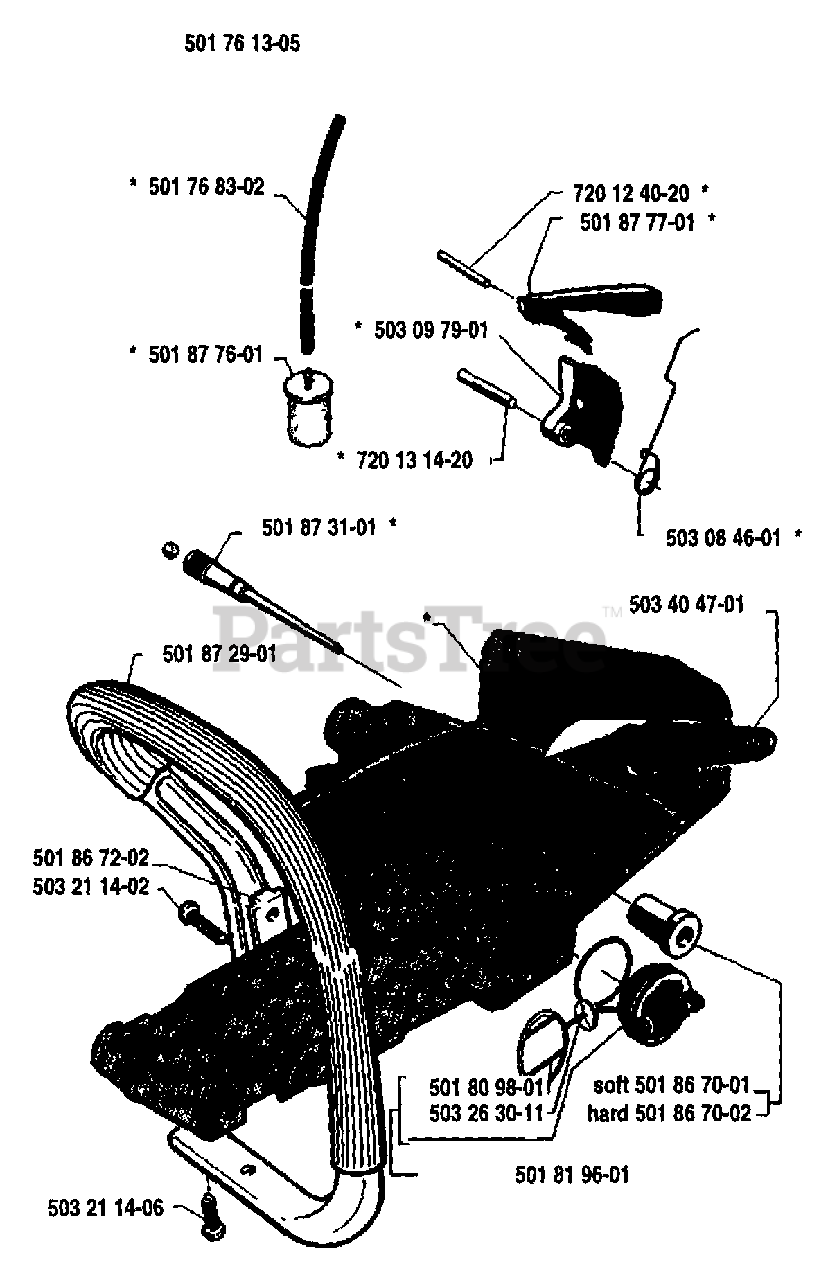

Front/Handle/Tank Assembly Parts Diagram

  • Title

501761305

Husqvarna 501761305

FUEL TANK
(Superseded to 501761310)

$

$

Not available

501768302

Husqvarna 501768302

FUEL HOSE
(Superseded to 581756103)

$7.99

$

In Stock, Qty 6

0

720124020

Husqvarna 720124020

PIN 3X25
(Superseded to 720182520)

$2.49

$

In Stock, Qty 20+

0

501877701

Husqvarna 501877701

THROTTLE CATCH
(Superseded to 501877702)

$

$

Not available

503097901

Husqvarna 503097901

THROTTLE TRIGGER
(Superseded to 503097904)

$12.99

$

Usually ships in 3-10 days

0

501877601

Husqvarna 501877601

FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

720131420

Husqvarna 720131420

PARALLEL PIN 5X30
(Superseded to 720131520)

$5.99

$

In Stock, only 4 left!

0

501873101

Husqvarna 501873101

FUEL TANK VENT

$13.99

$

In Stock, Qty 11

0

503084601

Husqvarna 503084601

SPRING

$

$

Not available

503404701

Husqvarna 503404701

HANDLE FILLER

$9.49

$

In Stock, Qty 6

0

501872901

Husqvarna 501872901

FRONT HANDLE
(Superseded to 501872907)

$

$

Not available

501867202

Husqvarna 501867202

SPACER

$

$

Not available

503211402

Husqvarna 503211402

SCREW B12X25
(Superseded to 503214925)

$6.49

$

In Stock, Qty 8

0

501809801

Husqvarna 501809801

HOLDER
(Superseded to 503578901)

$9.99

$

In Stock, Qty 15

0

503263011

Husqvarna 503263011

O-RING
(Superseded to 503263017)

$8.99

$

In Stock, Qty 20+

0

503211406

Husqvarna 503211406

SCREW B12X16
(Superseded to 503214972)

$10.99

$

In Stock, Qty 20+

0

501867001

Husqvarna 501867001

ANTIVIBE ELEMENT
(Superseded to 501867002)

$11.99

$

Usually ships in 3-10 days

0

501867002

Husqvarna 501867002

ANTIVIBE ELEMENT

$11.99

$

Usually ships in 3-10 days

0

501819601

Husqvarna 501819601

FUEL CAP
(Superseded to 537215207)

$10.99

$

In Stock, Qty 20+

0
