254 - Husqvarna Chainsaw (SN: 19924000001 - 19942300000) CHAIN BRAKE Parts Diagram

Chainsaw

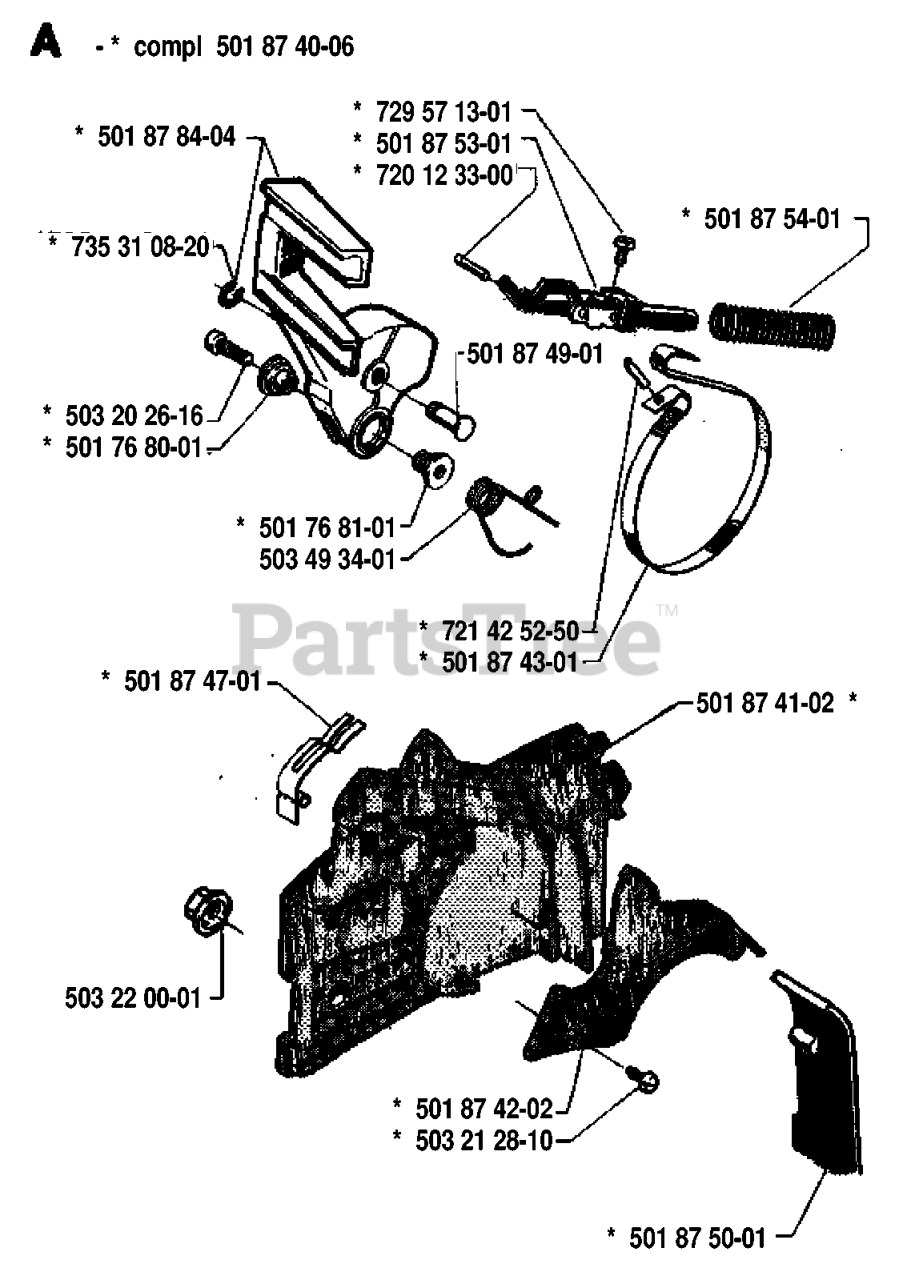

CHAIN BRAKE Parts Diagram

  • Title

720 12 33-00

Husqvarna 720123300

PIN 3X10

$2.49

$

In Stock, only 1 left!

0

501 87 43-01

Husqvarna 501874301

BRAKE BAND
(Superseded to 503718701)

$

$

Not available

721 42 52-50

Husqvarna 721425250

SPIRAL PIN 4X12

$3.49

$

In Stock, only 1 left!

0

503 20 26-16

Husqvarna 503202616

SCREW

$3.49

$

In Stock, only 2 left!

0

501 87 53-01

Husqvarna 501875301

KNEE-JOINT

$26.99

$

In Stock, only 2 left!

0

501 87 47-01

Husqvarna 501874701

SPRING

$3.49

$

In Stock, Qty 8

0

501 76 81-01

Husqvarna 501768101

PIVOT SLEEVE L

$

$

Not available

501 87 50-01

Husqvarna 501875001

DUST GUARD NLA

$

$

Not available

729 57 13-01

Husqvarna 729571301

SCREW
(Superseded to 503212810)

$3.49

$

In Stock, Qty 8

0

503 22 00-01

Husqvarna 503220001

NUT M8 FLANGE

$3.49

$

In Stock, Qty 20+

0

501 87 41-02

Husqvarna 501874102

BRAKE
(Superseded to 503747073)

$

$

Not available

501 76 80-01

Husqvarna 501768001

PIVOT SLEEVE R

$5.99

$

In Stock, only 2 left!

0

501 87 54-01

Husqvarna 501875401

SPRING

$

$

Not available

503 21 28-10

Husqvarna 503212810

SCREW

$3.49

$

In Stock, Qty 8

0

735 31 08-20

Husqvarna 735310820

E-RING 4

$3.49

$

In Stock, Qty 7

0

501 87 49-01

Husqvarna 501874901

PIVOT PIN
(Superseded to 503802701)

$5.99

$

In Stock, only 2 left!

0

503 49 34-01

Husqvarna 503493401

LOCK SPRING

$

$

Not available

501 87 42-02

Husqvarna 501874202

COVER

$

$

Not available

501 87 40-06

Husqvarna 501874006

CHAINBRAKE
(Superseded to 503747073)

$

$

Not available

501 87 84-04

Husqvarna 501878404

HANDGUARD
(Superseded to 503892701)

$

$

Not available
