254 - Husqvarna Chainsaw (SN: 19924000001 - 19942300000) CLUTCH & OIL PUMP Parts Diagram

Chainsaw

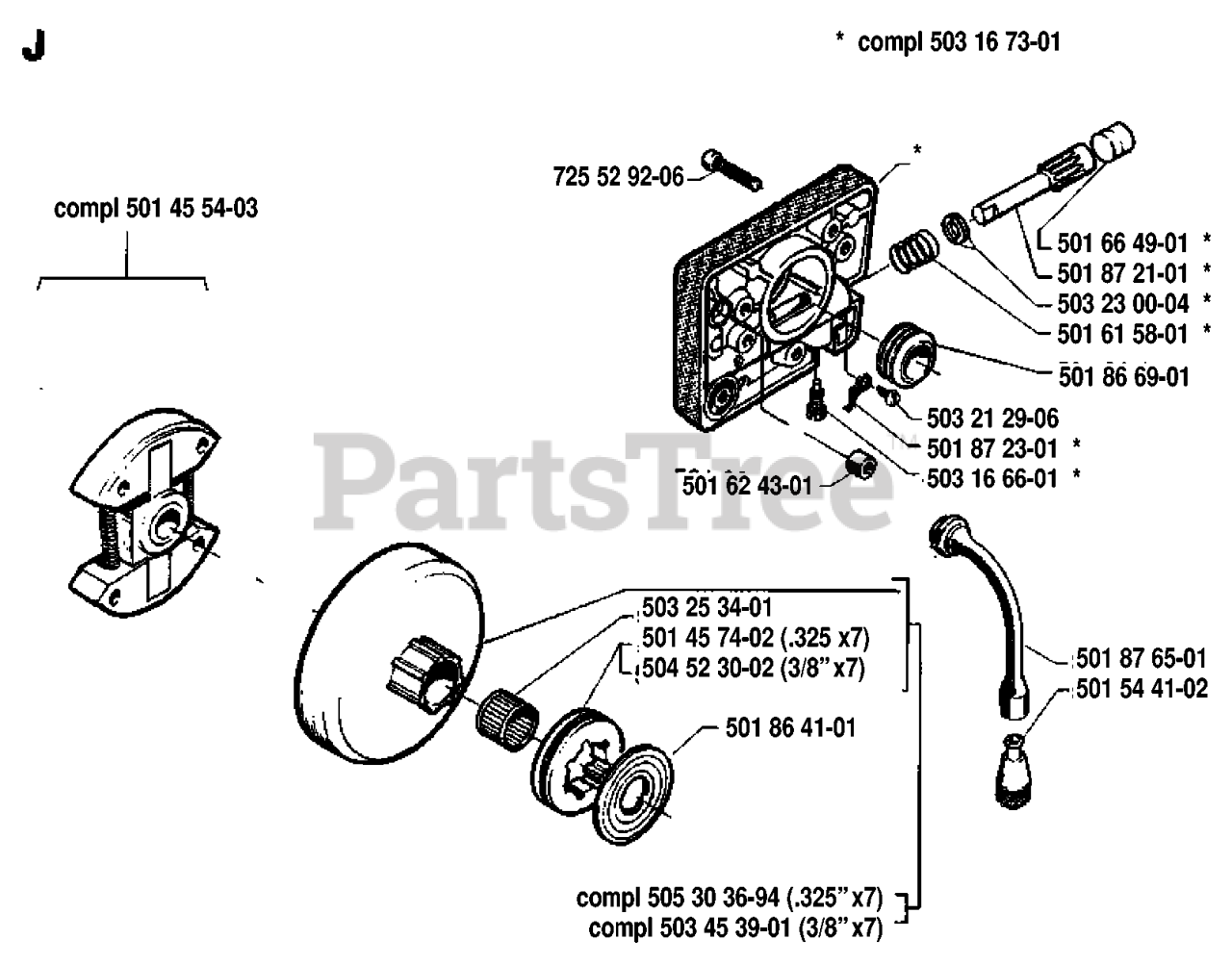

CLUTCH & OIL PUMP Parts Diagram

  • Title

725 52 92-06

Husqvarna 725529206

SCREW MC6S 4X14
(Superseded to 725529356)

$5.99

$

In Stock, Qty 5

0

501 62 43-01

Husqvarna 501624301

GASKET

$

$

Not available

501 54 41-02

Husqvarna 501544102

OIL SCREEN

$17.99

$

In Stock, Qty 5

0

505 30 36-94

Husqvarna 505303694

29175 DRUM
(Superseded to 640200098)

Note: .325 X7

$

$

Not available

501 66 49-01

Husqvarna 501664901

PLUG

$

$

Not available

503 16 73-01

Husqvarna 503167301

OIL PUMP

$

$

Not available

503 23 00-04

Husqvarna 503230004

WASHER 6.1X9

$7.49

$

Usually ships in 3-10 days

0

503 45 39-01

Husqvarna 503453901

34425 SPROCKET
(Superseded to 640200145)

Note: 3/8 X7

$

$

Not available

503 25 34-01

Husqvarna 503253401

SUPPORT BUSHING

$21.99

$

In Stock, Qty 20+

0

501 87 65-01

Husqvarna 501876501

OIL HOSE

$11.99

$

Usually ships in 3-10 days

0

503 21 29-06

Husqvarna 503212906

SCREW

$4.99

$

In Stock, only 4 left!

0

501 45 74-02

Husqvarna 501457402

RIM SPROCKET 7T .325
(Superseded to 640200010)

Note: .325 X7

$8.49

$

In Stock, Qty 20+

0

501 86 41-01

Husqvarna 501864101

PROTECTOR

$

$

Not available

501 87 21-01

Husqvarna 501872101

PUMP PLUNGER

$

$

Not available

504 52 30-02

Husqvarna 504523002

RIM SPROCKET 3/8'' 7
(Superseded to 640200036)

Note: 3/8 X7

$10.99

$

In Stock, Qty 19

0

503 16 66-01

Husqvarna 503166601

SCREW

$

$

Not available

501 86 69-01

Husqvarna 501866901

DRIVE WHEEL

$

$

Not available

501 87 23-01

Husqvarna 501872301

Catch Adj.Screw

$

$

Not available

501 61 58-01

Husqvarna 501615801

SPRING

$6.49

$

Usually ships in 3-10 days

0

501 45 54-03

Husqvarna 501455403

CLUTCH
(Superseded to 537110502)

$77.99

$

In Stock, only 2 left!

0
