254 - Husqvarna Chainsaw (SN: 19960100001 - 19980900000) CARBURETOR DETAILS Parts Diagram

Chainsaw

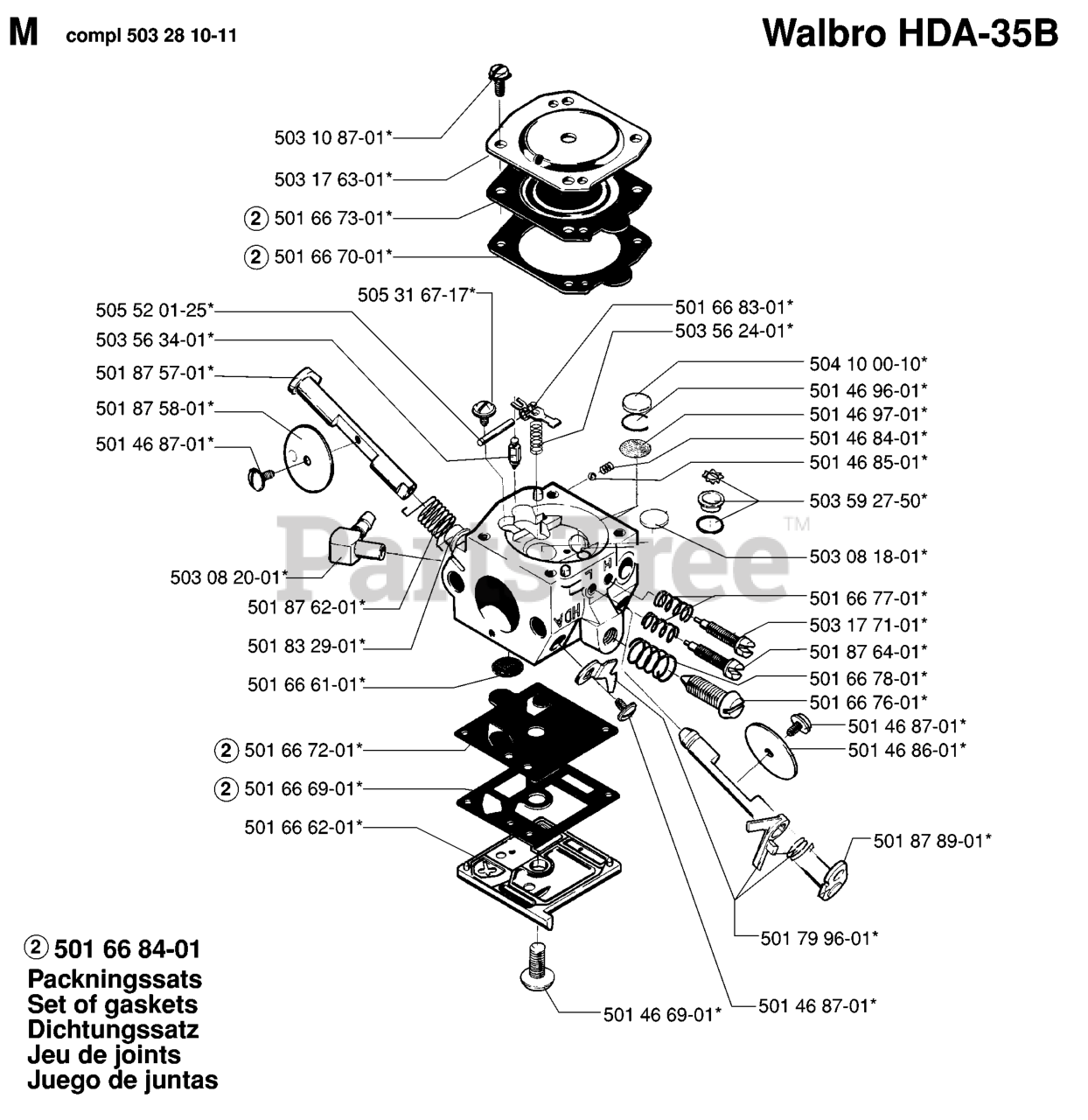

CARBURETOR DETAILS Parts Diagram

  • Title

503 17 63-01

Husqvarna 503176301

COVER METERING DIAPHR.

$3.99

$

In Stock, only 2 left!

0

501 46 87-01

Husqvarna 501468701

SCREW

$6.49

$

Usually ships in 3-10 days

0

503 59 27-50

Husqvarna 503592750

REPAIR KIT CARBURETOR

$

$

Not available

501 87 62-01

Husqvarna 501876201

Throttle Return Spring

$

$

Not available

503 17 71-01

Husqvarna 503177101

Needle High Speed

$

$

Not available

501 46 84-01

Husqvarna 501468401

SPRING

$5.99

$

In Stock, only 1 left!

0

501 66 70-01

Husqvarna 501667001

GASKET, METERING SIDE

Note: 501 66 84-01 SET OF GASKETS

$4.99

$

In Stock, Qty 5

0

501 66 62-01

Husqvarna 501666201

COVER, PUMP SIDE

$5.99

$

Usually ships in 3-10 days

0

501 66 72-01

Husqvarna 501667201

FUEL PUMP DIAPHRAGM
(Superseded to 502254701)

Note: 501 66 84-01 SET OF GASKETS

$5.99

$

In Stock, only 2 left!

0

503 28 10-11

Husqvarna 503281011

CARBURETOR HDA 30B WALBRO
(Superseded to 503281611)

$241.99

$

In Stock, only 2 left!

0

501 87 57-01

Husqvarna 501875701

Throttle Shaft

$

$

Not available

501 46 97-01

Husqvarna 501469701

SCREEN
(Superseded to 530035124)

$

$

Not available

501 66 76-01

Husqvarna 501667601

Screw

$

$

Not available

501 66 78-01

Husqvarna 501667801

SPRING
(Superseded to 530035121)

$3.99

$

Usually ships in 3-10 days

0

503 08 20-01

Husqvarna 503082001

NIPPLE

$5.99

$

In Stock, only 1 left!

0

501 46 96-01

Husqvarna 501469601

RETAINING RING
(Superseded to 501469502)

$

$

Not available

501 66 83-01

Husqvarna 501668301

LEVER

$3.49

$

Usually ships in 3-10 days

0

501 46 85-01

Husqvarna 501468501

BALL

$3.49

$

Usually ships in 3-10 days

0

505 52 01-25

Husqvarna 505520125

FULCRUM PIN

$3.49

$

In Stock, only 3 left!

0

501 83 29-01

Husqvarna 501832901

BUSHING

$2.49

$

Usually ships in 3-10 days

0

501 66 77-01

Husqvarna 501667701

SPRING

$2.49

$

In Stock, only 3 left!

0

501 66 73-01

Husqvarna 501667301

METERING DIAPHRAGM

Note: 501 66 84-01 SET OF GASKETS

$7.99

$

In Stock, only 4 left!

0

501 66 61-01

Husqvarna 501666101

FUEL INLET SCREEN

$6.99

$

Usually ships in 3-10 days

0

503 10 87-01

Husqvarna 503108701

RP SCREW W/ WASHER
(Superseded to 503584601)

$4.99

$

In Stock, only 4 left!

0

501 87 89-01

Husqvarna 501878901

Choke Shaft

$

$

Not available

501 87 64-01

Husqvarna 501876401

NEEDLE IDLE

$

$

Not available

505 31 67-17

Husqvarna 505316717

SCREW

$3.49

$

In Stock, Qty 5

0

503 56 34-01

Husqvarna 503563401

INLET NEEDLE

$6.49

$

In Stock, Qty 12

0

503 56 24-01

Husqvarna 503562401

SPRING

$4.99

$

In Stock, only 4 left!

0

501 46 86-01

Husqvarna 501468601

CHOKE SHUTTER
(Superseded to 507430749)

$3.99

$

Usually ships in 3-10 days

0

501 46 69-01

Husqvarna 501466901

SCREW

$3.99

$

In Stock, Qty 5

0

501 87 58-01

Husqvarna 501875801

Throttle Flap

$

$

Not available

501 66 69-01

Husqvarna 501666901

GASKET, PUMP SIDE

Note: 501 66 84-01 SET OF GASKETS

$5.99

$

In Stock, Qty 5

0

504 10 00-10

Husqvarna 504100010

WELCH PLUG
(Superseded to 530035225)

$3.99

$

Usually ships in 3-10 days

0

503 08 18-01

Husqvarna 503081801

Washer

$

$

Not available

501 79 96-01

Husqvarna 501799601

START LEVER SET

$

$

Not available
