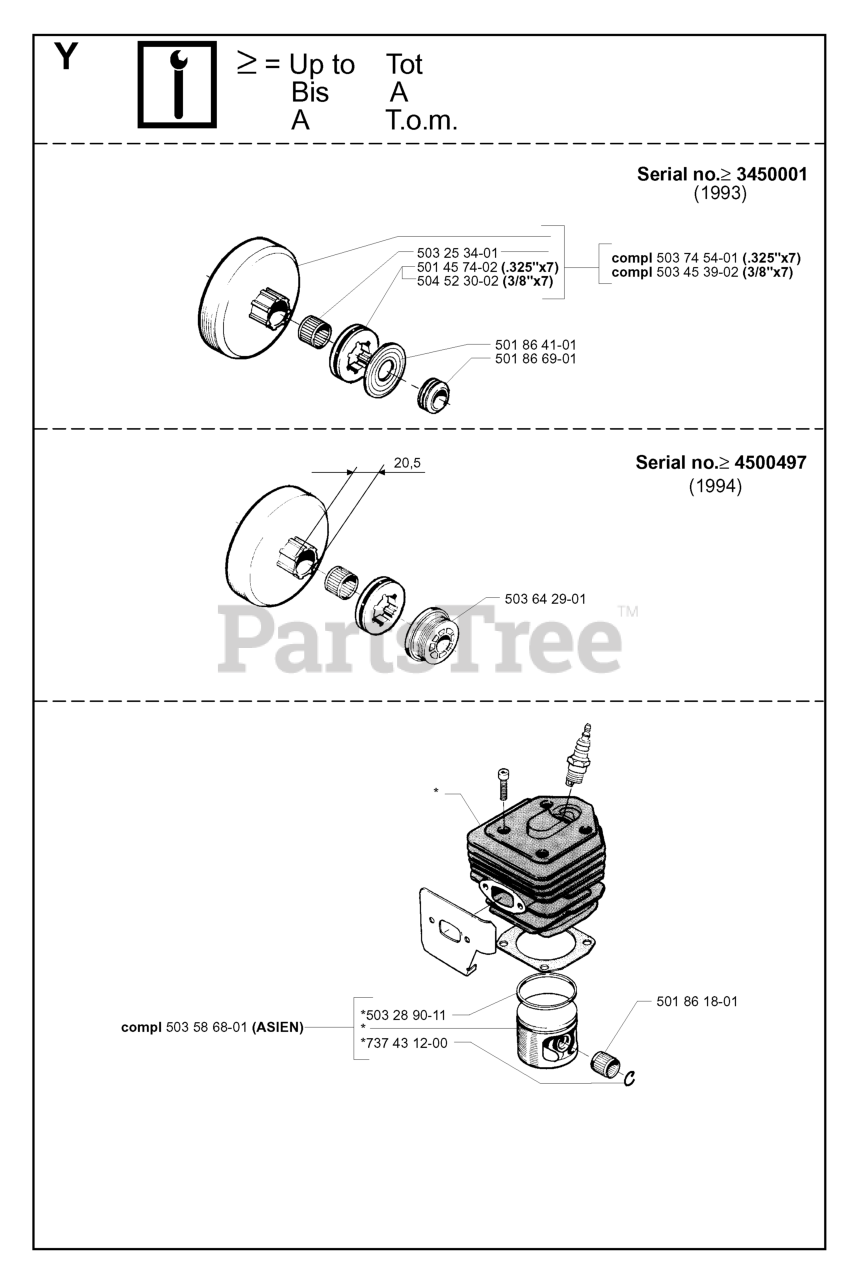

254 - Husqvarna Chainsaw (SN: 20013500001 & Above) SERVICE UPDATES Parts Diagram

Chainsaw

SERVICE UPDATES Parts Diagram

  • Title

503 28 90-11

Husqvarna 503289011

%PISTON RING
(Superseded to 544435001)

$31.99

$

In Stock, only 3 left!

0

501 86 41-01

Husqvarna 501864101

PROTECTOR

Note: SERIAL NO. GREATER THAN OR EQUAL TO 3450001 (1993)

$

$

Not available

737 43 12-00

Husqvarna 737431200

WRIST PIN CLIP

$7.49

$

In Stock, only 4 left!

0

503 58 68-01

Husqvarna 503586801

Piston Cpl

$

$

Not available

501 86 69-01

Husqvarna 501866901

DRIVE WHEEL

Note: SERIAL NO. GREATER THAN OR EQUAL TO 3450001 (1993)

$

$

Not available

503 64 29-01

Husqvarna 503642901

WORM WHEEL

$10.99

$

In Stock, only 1 left!

0

503 45 39-02

Husqvarna 503453902

DRUM 3/8X7 RIM

Note: 3/8X7 SERIAL NO. GREATER THAN OR EQUAL TO 3450001 (1993)

$69.99

$

In Stock, only 1 left!

0

503 25 34-01

Husqvarna 503253401

SUPPORT BUSHING

Note: SERIAL NO. GREATER THAN OR EQUAL TO 3450001 (1993)

$21.99

$

In Stock, Qty 20+

0

501 86 18-01

Husqvarna 501861801

SUPPORT BUSHING

$23.99

$

In Stock, Qty 6

0

501 45 74-02

Husqvarna 501457402

RIM SPROCKET 7T .325
(Superseded to 640200010)

Note: .325X7 SERIAL NO. GREATER THAN OR EQUAL TO 3450001 (1993)

$8.49

$

In Stock, Qty 20+

0

504 52 30-02

Husqvarna 504523002

RIM SPROCKET 3/8'' 7
(Superseded to 640200036)

Note: 3/8X7 SERIAL NO. GREATER THAN OR EQUAL TO 3450001 (1993)

$10.99

$

In Stock, Qty 19

0

503 74 54-01

Husqvarna 503745401

DRUM 325X7 RIM

Note: .325X7 SERIAL NO. GREATER THAN OR EQUAL TO 3450001 (1993)

$74.99

$

In Stock, only 1 left!

0
