25400 C - Toro Pro Sneak 360 Vibratory Plow (SN: 314000001 - 314999999) (2014) TRANSMISSION AND DRIVE AXLE ASSEMBLY Parts Diagram

Pro Sneak 360 Vibratory Plow

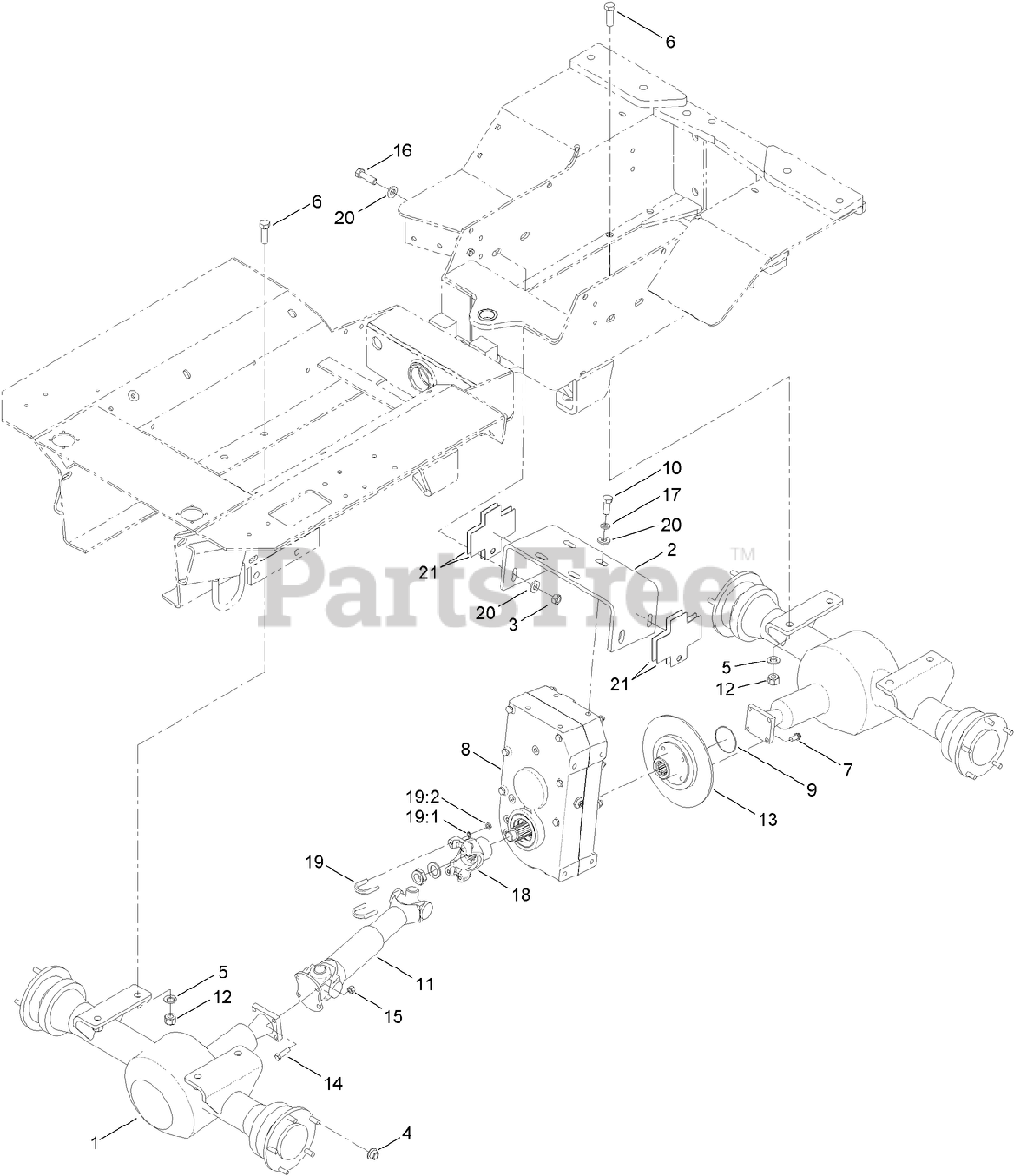

TRANSMISSION AND DRIVE AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro AU110858A1-03

AXLE-DRIVE

$13310.99

$

Usually ships in 3-6 days

0

2

Toro 127-1093-03

BRACKET-MOUNTING

$227.99

$

Usually ships in 3-6 days

0

3

Toro 97-1206

LOCKNUT

$1.49

$

Usually ships in 3-6 days

0

4

Toro AU131-918

NUT

$4.49

$

Usually ships in 3-6 days

0

5

Toro AU896-11014

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

6

Toro AU426-928

BOLT

$2.49

$

Usually ships in 3-6 days

0

7

Toro AU79-1612

SCREW-12 PT FLANGE

$5.99

$

Usually ships in 3-6 days

0

8

Toro AU104951

TRANSMISSION ASM

$

$

Not available

9

Toro AU238-5036

O-RING, SAE

$2.99

$

Usually ships in 3-6 days

0

10

Toro 325-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

11

Toro AU111086A1

DRIVE SHAFT ASM

$1064.99

$

Usually ships in 3-6 days

0

12

Toro AU232-4119

NUT

$1.49

$

Usually ships in 3-6 days

0

13

Toro AU87403381

FLANGE-COMPANION

$1350.99

$

Usually ships in 3-6 days

0

14

Toro 3211-5

SCREW-HH

$3.99

$

In Stock, Qty 5

0

15

Toro AU232-4616

NUT-HEX

$0.99

$

In Stock, Qty 8

0

16

Toro 325-7

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

17

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 11

0

18

Toro AU131687A1

YOKE-TRANSMISSION

$

$

Not available

19

Toro AUH183566

BOLT-U (2 PER PACK)

$37.99

$

Usually ships in 3-6 days

0

19:1

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

19:2

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

20

Toro AUH274894

WASHER

$2.99

$

Usually ships in 3-6 days

0

21

Toro 127-1094-03

Shim-Bracket

$26.99

$

Usually ships in 3-6 days

0
