25403 C - Toro Pro Sneak 365 Vibratory Plow (SN: 314000001 - 314999999) (2014) AIR CLEANER AND RADIATOR HOSE ASSEMBLY Parts Diagram

Pro Sneak 365 Vibratory Plow

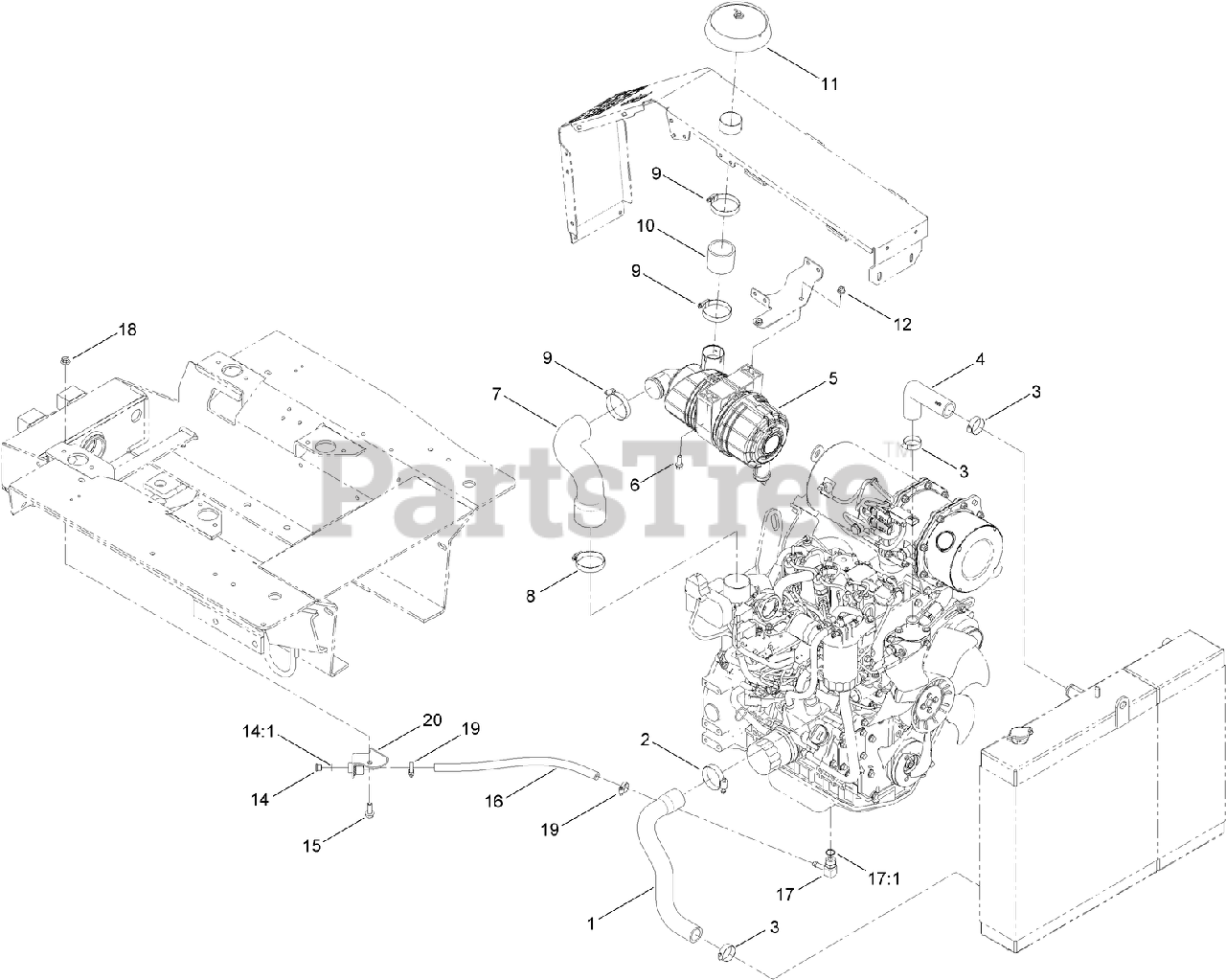

AIR CLEANER AND RADIATOR HOSE ASSEMBLY Parts Diagram

  • Title

1

Toro 121-3322

HOSE-RADIATOR, LOWER

$97.99

$

Usually ships in 3-6 days

0

2

Toro 2412-92

CLAMP-HOSE

$3.49

$

Usually ships in 3-6 days

0

3

Toro 2412-34

CLAMP-HOSE

$2.49

$

In Stock, only 1 left!

0

4

Toro 121-3321

HOSE-RADIATOR, UPPER

$97.99

$

In Stock, only 4 left!

0

5

Toro 127-6617

AIR CLEANER ASM

$302.99

$

Usually ships in 3-6 days

0

6

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

7

Toro 127-6609

HOSE-AIR

$111.99

$

Usually ships in 3-6 days

0

8

Toro 2412-42

CLAMP-HOSE

$11.99

$

Usually ships in 3-6 days

0

9

Toro 2412-130

CLAMP-HOSE

$4.99

$

Usually ships in 3-6 days

0

10

Toro 130-4329

HOSE-AIR INLET

$20.99

$

Usually ships in 3-6 days

0

11

Toro AU104635

HOOD-RAIN
(Superseded to 105-2539)

$

$

Not available

12

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 353-989

PLUG-HEX, HOLLOW

$25.99

$

Usually ships in 3-6 days

0

14:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

15

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

16

Toro 121-7488

HOSE-HYD

$11.99

$

Usually ships in 3-6 days

0

17

Toro 112-2404

FITTING-BARBED-90

$150.99

$

Usually ships in 3-6 days

0

17:1

Toro 112-2525

WASHER-SEAL, BONDED

$7.99

$

Usually ships in 3-6 days

0

18

Toro 119-4042

NUT-HEX FLG

$1.49

$

In Stock, Qty 19

0

19

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

20

Toro 131-2101

OIL PLUG ASM

$105.99

$

Usually ships in 3-6 days

0
