25403 C - Toro Pro Sneak 365 Vibratory Plow (SN: 314000001 - 314999999) (2014) SEAT AND REAR FRAME ASSEMBLY Parts Diagram

Pro Sneak 365 Vibratory Plow

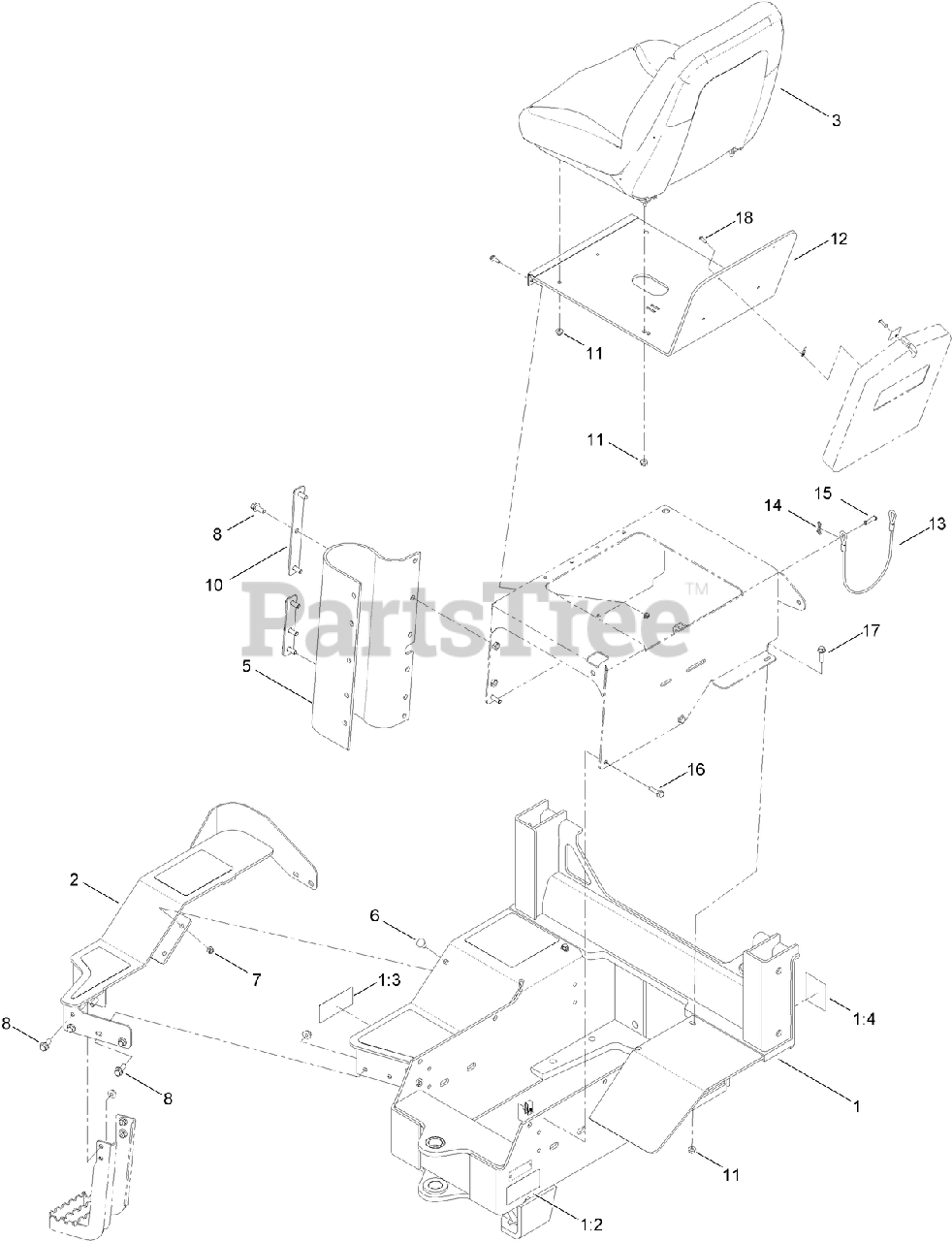

SEAT AND REAR FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 127-6649

REAR FRAME ASM

$4479.99

$

Usually ships in 3-6 days

0

1:2

Toro 125-6672

DECAL-DANGER, ARTICULATED JOINT

$

$

Currently unavailable

1:3

Toro 125-8487

DECAL-WARNING, STEP EXTENSION

$

$

Currently unavailable

1:4

Toro 125-4967

DECAL-LIFT HERE

$2.49

$

Usually ships in 3-6 days

0

2

Toro 130-4281-01

PLATFORM-EXTENSION

$367.99

$

Usually ships in 0 days

0

3

Toro 130-4292

SEAT ASM

$

$

Not available

5

Toro 130-4285

SHIELD-RUBBER

$139.99

$

Usually ships in 3-6 days

0

6

Toro 3231-21

SCREW-CARR

$1.99

$

In Stock, only 1 left!

0

7

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

8

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

10

Toro 125-6649-03

PLATE

$9.99

$

Usually ships in 3-6 days

0

11

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 131-2114-01

PLATE-SEAT

$352.99

$

Usually ships in 3-6 days

0

13

Toro 98-4371

CABLE-SEAT

$39.99

$

Usually ships in 3-6 days

0

14

Toro 119-1415

PIN-COTTER, LOCKING

$1.49

$

In Stock, Qty 5

0

15

Toro 283-6

PIN-CLEVIS

$2.49

$

In Stock, Qty 11

0

16

Toro 33104-030

SCREW-HHF

$6.99

$

Usually ships in 3-6 days

0

17

Toro 3234-36

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

18

Toro 3269-11

RIVET-POP

$1.49

$

Usually ships in 3-6 days

0
