25403 - Toro Pro Sneak 365 Vibratory Plow (SN: 314000001 - 314999999) (2014) ELECTRICAL RELAY, LAMP AND SWITCH ASSEMBLY Parts Diagram

Pro Sneak 365 Vibratory Plow

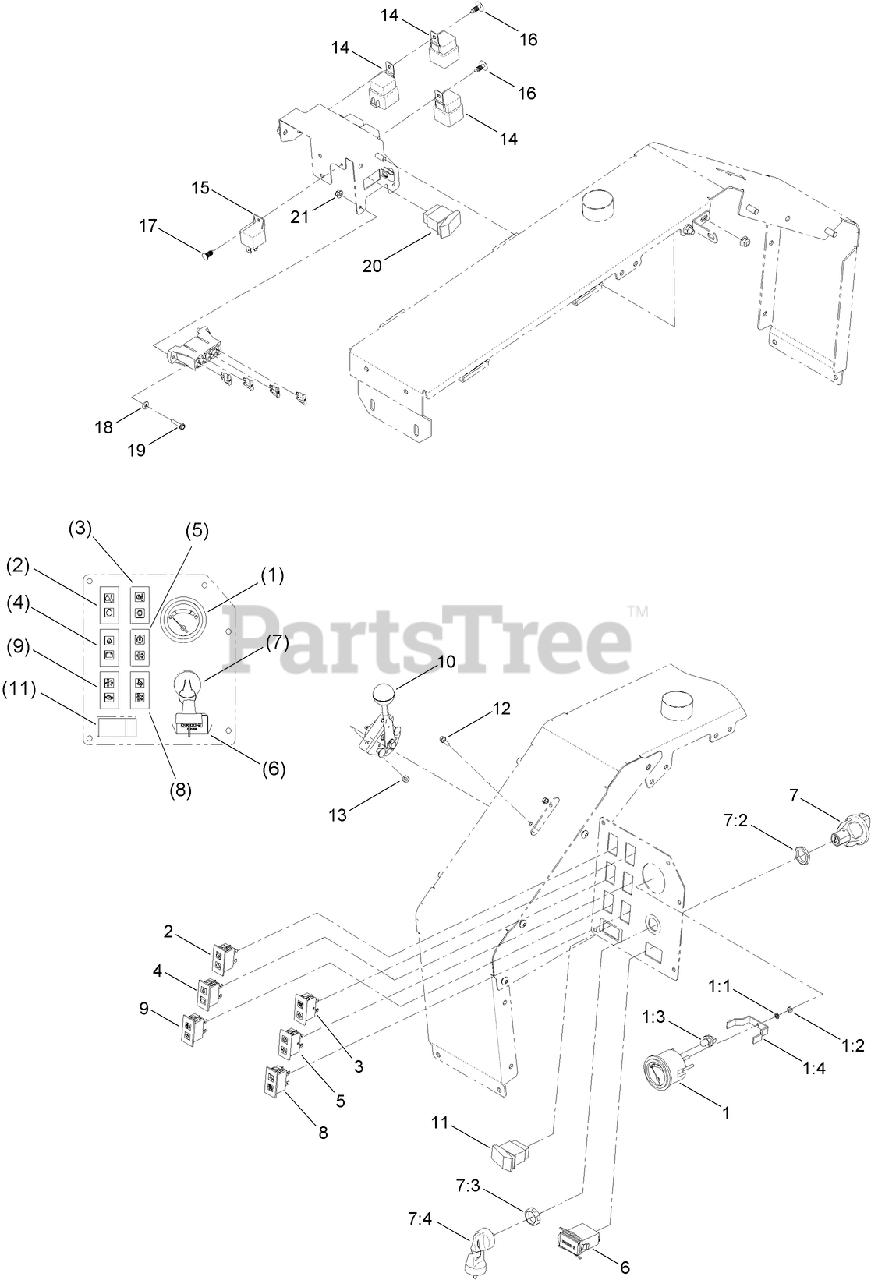

ELECTRICAL RELAY, LAMP AND SWITCH ASSEMBLY Parts Diagram

  • Title

1

Toro 98-9339

GAUGE-FUEL

$177.99

$

Usually ships in 3-6 days

0

1:1

Toro 3254-1

WASHER-LOCK, INT

$0.99

$

Usually ships in 3-6 days

0

1:2

Toro 3217-27

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

1:3

Toro 105-9265

Bulb And Lamp ASM

$

$

Not available

1:4

Toro 105-0038

BRACKET-GAUGE

$

$

Currently unavailable

2

Toro 130-7419

LIGHT CLUSTER ASM

$106.99

$

Usually ships in 3-6 days

0

3

Toro 121-6584

LAMP-WARNING

$132.99

$

Usually ships in 3-6 days

0

4

Toro 130-7418

LIGHT CLUSTER ASM

$106.99

$

Usually ships in 3-6 days

0

5

Toro 121-6582

LAMP-WARNING

$127.99

$

Usually ships in 3-6 days

0

6

Toro 1-513374

METER-HOUR
(Superseded to 120-2244)

$74.99

$

In Stock, Qty 5

0

7

Toro 121-5159

IGNITION SWITCH ASM

$129.99

$

In Stock, only 1 left!

0

7:2

Toro 121-5160

NUT-HEX

$121.99

$

Usually ships in 3-6 days

0

7:3

Toro 121-5161

NUT-FACE
(Superseded to 122-2704)

$2.49

$

Usually ships in 0 days

0

7:4

Toro 121-5162

IGNITION KEY SET

$36.99

$

Usually ships in 3-6 days

0

8

Toro 130-4321

LAMP-WARNING

$135.99

$

Usually ships in 3-6 days

0

9

Toro 130-4322

LAMP-WARNING

$150.99

$

Usually ships in 3-6 days

0

10

Toro 130-4328

THROTTLE-SENSOR, ROTARY

$300.99

$

Usually ships in 3-6 days

0

11

Toro 130-4347

SWITCH

$150.99

$

Usually ships in 3-6 days

0

12

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, only 2 left!

0

13

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 99-7430

RELAY

$26.99

$

In Stock, only 2 left!

0

15

Toro 99-7435

RELAY-POWER

$49.99

$

In Stock, only 2 left!

0

16

Toro 104-0395

PLUG-PLASTIC

$1.99

$

Usually ships in 3-6 days

0

17

Toro 125-8067

PLUG-PLASTIC

$0.99

$

Usually ships in 3-6 days

0

18

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, only 4 left!

0

19

Toro 106-9169

SCREW-HWH

$8.49

$

In Stock, Qty 5

0

20

Toro 95-8999

SWITCH

$47.99

$

In Stock, only 1 left!

0

21

Toro 120-4578

NUT-HF

$0.99

$

Usually ships in 3-6 days

0
