25403 - Toro Pro Sneak 365 Vibratory Plow (SN: 316000001 - 316999999) (2016) STEERING ASSEMBLY Parts Diagram

Pro Sneak 365 Vibratory Plow

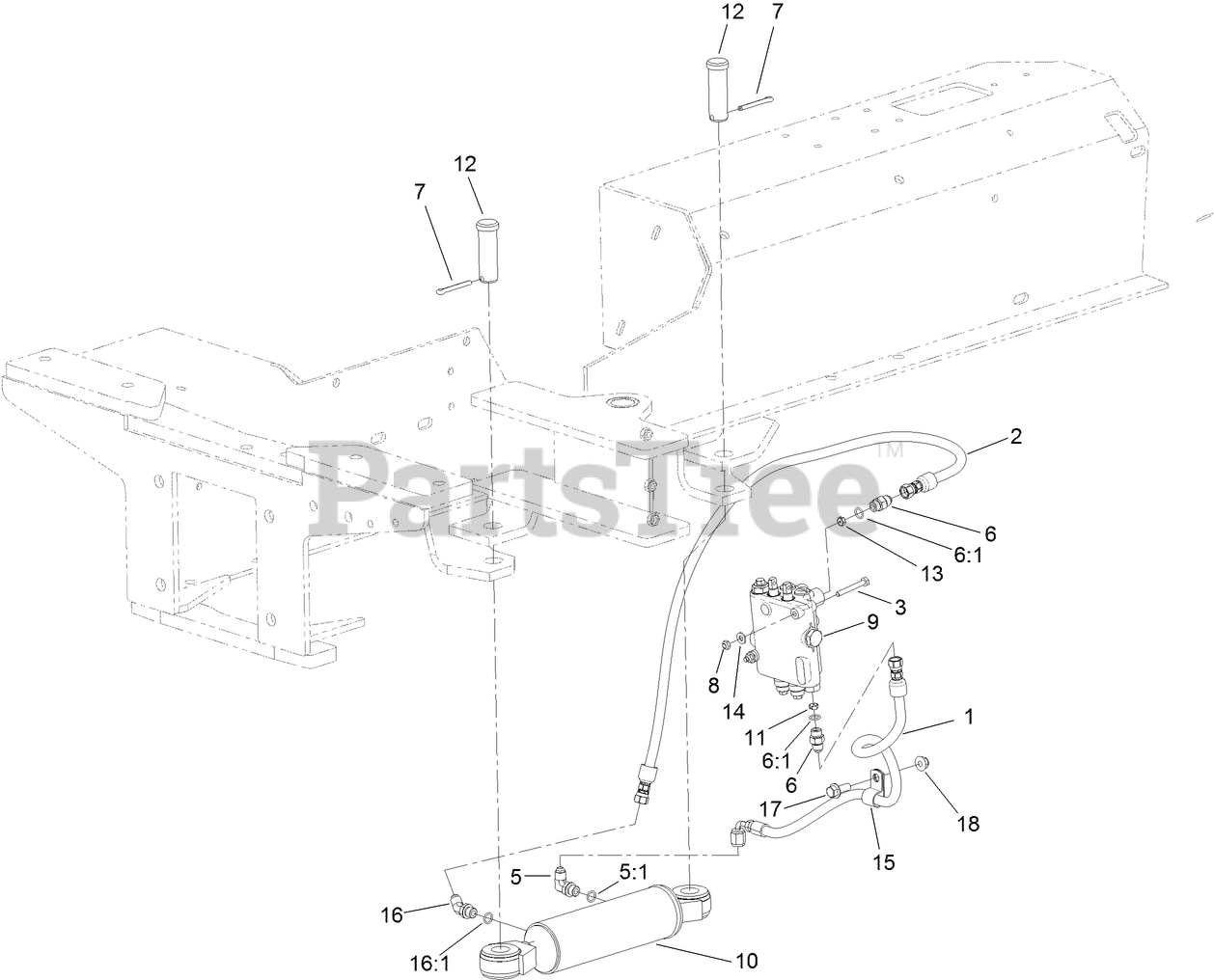

STEERING ASSEMBLY Parts Diagram

  • Title

1

Toro 127-1001

HOSE ASM

$125.99

$

Usually ships in 3-6 days

0

2

Toro 127-1002

HOSE ASM

$94.99

$

Usually ships in 3-6 days

0

3

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 353-374

FITTING-ELBOW, 90 DEG
(Superseded to 103-1802)

$25.99

$

In Stock, only 2 left!

0

5:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

6

Toro 353-384

FITTING-STRAIGHT

$7.99

$

Usually ships in 3-6 days

0

6:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

7

Toro AU432-1628

PIN-COTTER

$3.49

$

Usually ships in 3-6 days

0

8

Toro 146375

NUT-LOCK, CONE

$2.49

$

Usually ships in 3-6 days

0

9

Toro AU407213A1

HYD STEERING VALVE ASM

$2572.99

$

Usually ships in 3-6 days

0

10

Toro AU125471

HYD CYLINDER ASM

$1879.99

$

Usually ships in 3-6 days

0

10:1

Toro 131-0169

GLAND SEAL KIT

Note: Not illustrated

$124.99

$

Usually ships in 3-6 days

0

10:2

Toro AU124048

PISTON SEAL KIT

Note: Not illustrated

$103.99

$

Usually ships in 3-6 days

0

11

Toro AUH433173

PLATE-ORIFICE

$35.99

$

Usually ships in 3-6 days

0

12

Toro AUH67272

PIN-CLEVIS

$77.99

$

Usually ships in 3-6 days

0

13

Toro AUH746875

PLATE-ORIFICE

$24.99

$

Usually ships in 3-6 days

0

14

Toro AUH426767

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

15

Toro 2412-81

CLAMP-R

$4.99

$

Usually ships in 3-6 days

0

16

Toro 353-212

FITTING-ELBOW, 45 DEG

$28.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

17

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

18

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
